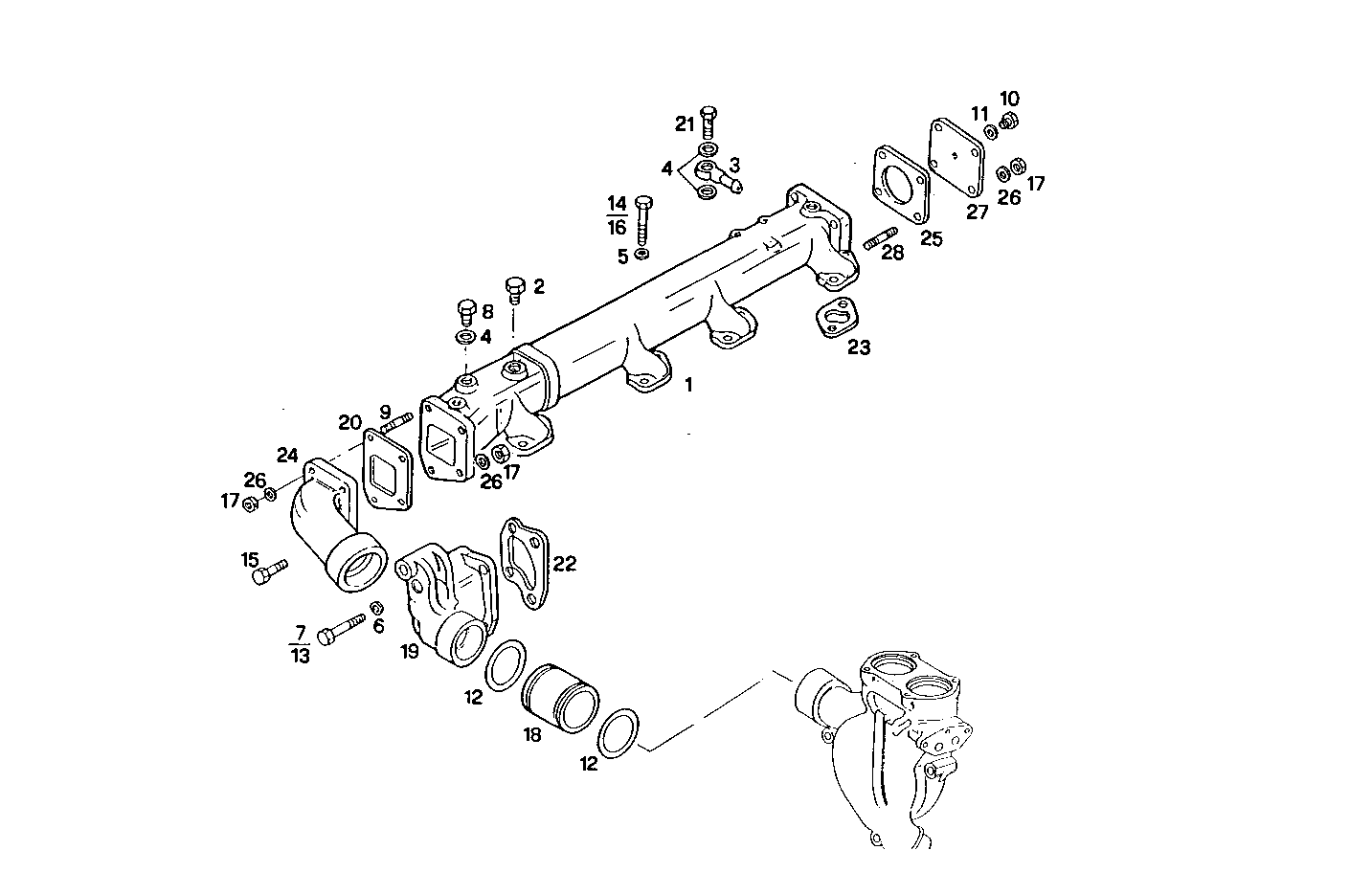

| Item |
Part number |
Description |
|
1 |
61315629 |
WATER MANIFOLD |
|
2 |
16997411 |
THREADED PLUG M16X1,5 |
|
3 |
4678165 |
BREATHER PIPE |
|
4 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
5 |
17089574 |
WASHER Ø8X16 MM |
|
6 |
17090274 |
WASHER Ø10X20 MM |
|
7 |
11306921 |
SCREW M10X1,25X30 |
|
8 |
16992211 |
THREADED PLUG M12X1,5 |
|
9 |
16746824 |
STUD M8X30 MM (8.8) |
|
10 |
16992311 |
LOCK PLUG M14X1,5 |
|
11 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
12 |
17296080 |
O-RING Ø56,5 MM SP=5,33 MM |
|
13 |
15971321 |
HEXAGON BOLT M10X1,25X75 MM |
|
14 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
15 |
16606024 |
SCREW M8X45 MM |
|
16 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
17 |
17037931 |
HEXAGON NUT M8X1,25 |
|
18 |
61317101 |
CONNECTOR SLEEVE |
|
19 |
61317107 |
WATER PIPE |
|
20 |
61318822 |
FLAT ENGINE GASKET |
|
21 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
22 |
61318820 |
FLAT ENGINE GASKET |
|
23 |
61319050 |
FLAT ENGINE GASKET |
|
24 |
61318769 |
WATER PIPE |
|
25 |
4857375 |
GASKET |
|
26 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
27 |
8018370 |
COVER |
|
28 |
16746724 |
STUD M8X25 MM |
