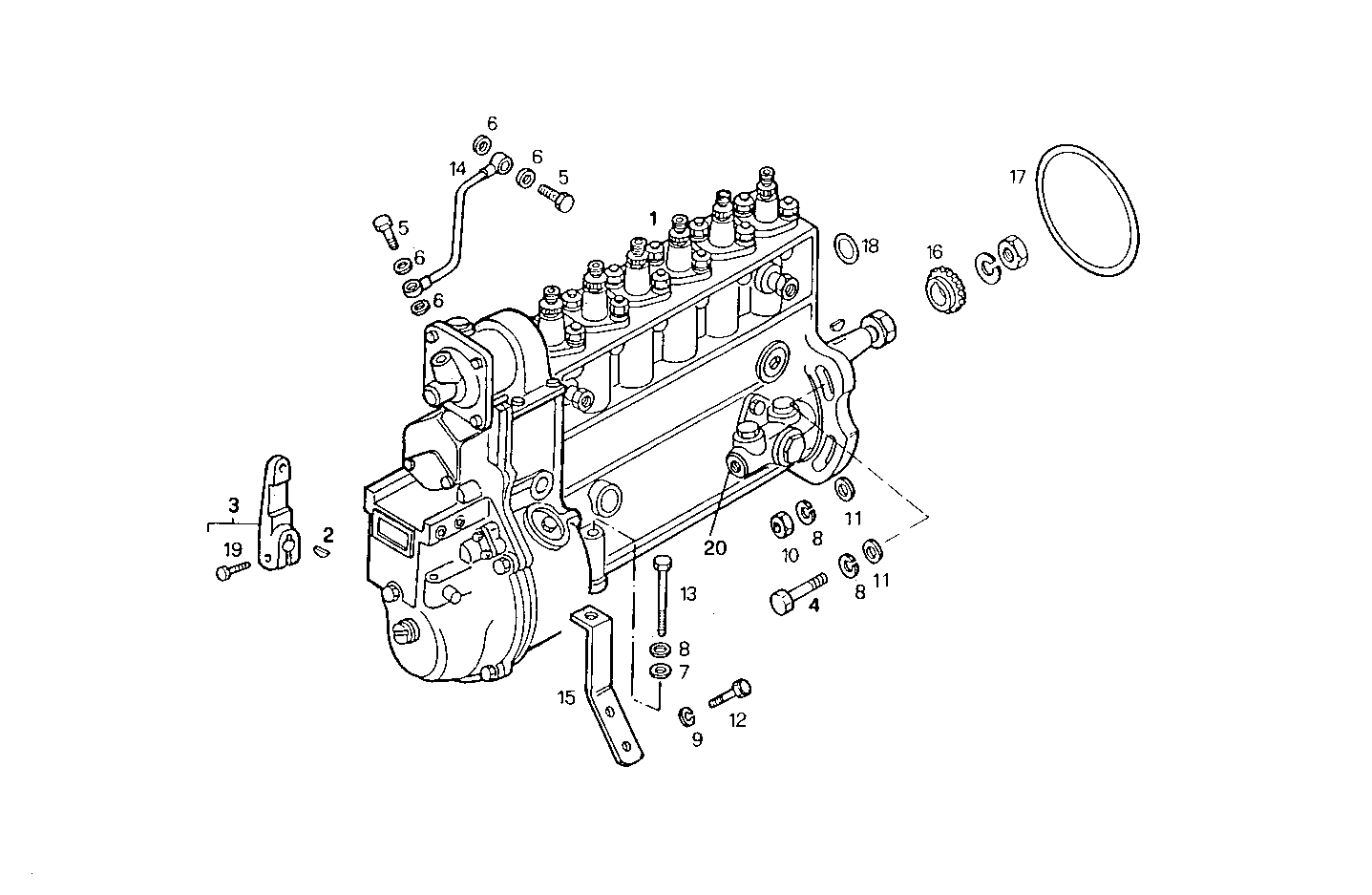

Item |
Part number |
Description |
1 |
98496920 |
INLINE INJECT.PUMP OPT. |
2 |
8101048 |
KEY 3X5X12,5 |
3 |
8110753 |
LEVER |
4 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
5 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
6 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
7 |
17095114 |
WASHER Ø10X21 MM |
8 |
17090174 |
SPRING WASHER Ø10X20 MM |
9 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 |
17038221 |
HEXAGON NUT M10 |
11 |
61320297 |
WASHER |
12 |
16043521 |
SCREW M8X22 |
13 |
15971721 |
SCREW M10X1,25X95 |
14 |
8018769 |
FUEL LINE L=240 MM |
15 |
61329215 |
SUPPORT |
16 |
61319214 |
INJECT.PUMP BUSH |
17 |
61317062 |
O-RING |
18 |
61317701 |
O-RING Ø3,2X10 MM |
19 |
16602124 |
SCREW M5X16 MM |
20 |
93160510 |
FUEL PUMP OPT. |
