8460SRi11.00A004

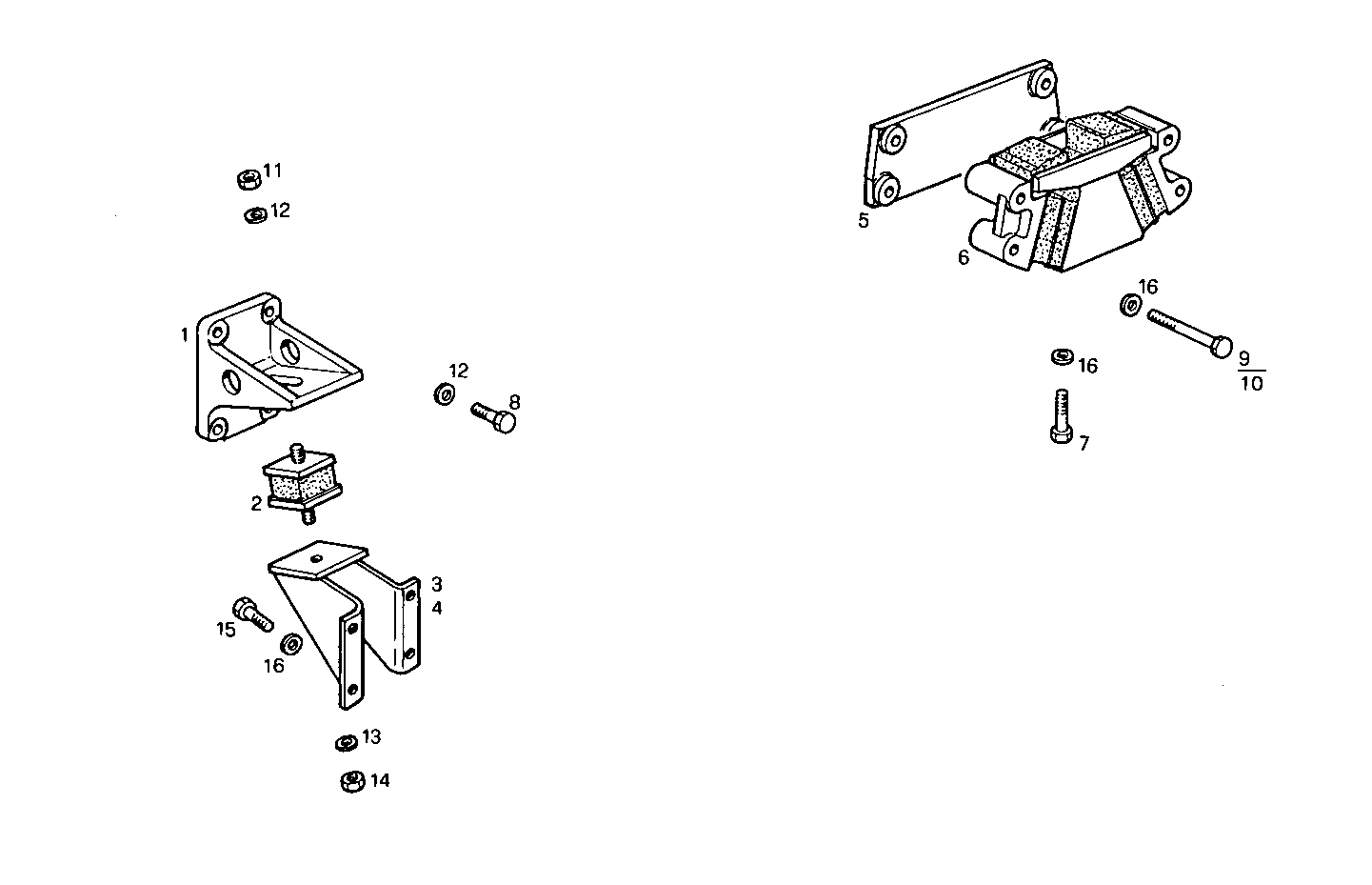

A04110900 ENGINE SUSPENSION - truck type
| Item | Part number | Description |
|---|---|---|
| 1 | 98159388 | ENGINE SUSPENSION FRONT |
| 2 | 61594486 | ENGINE SILENTBLOCK |
| 3 | 98159453 | SUPPORT FRONT - RIGHT |
| 4 | 98159452 | SUPPORT FRONT - LEFT |
| 5 | 98167204 | SHIM |
| 6 | 98167070 | RUBBER PAD REAR |
| 7 | 98206132 | SCREW M16X1,5X35 |
| 8 | 98225500 | SCREW M14X40 |
| 9 | 98169290 | SCREW M14X100 |
| 10 | 98169291 | SCREW M14X130 |
| 11 | 98255342 | NUT M14 |
| 12 | 98159457 | WASHER |
| 13 | 98201398 | WASHER |
| 14 | 98104955 | NUT M12X1,25 |
| 15 | 98255697 | SCREW M16X40 |
| 16 | 98156986 | WASHER |
