8460SRM28.12

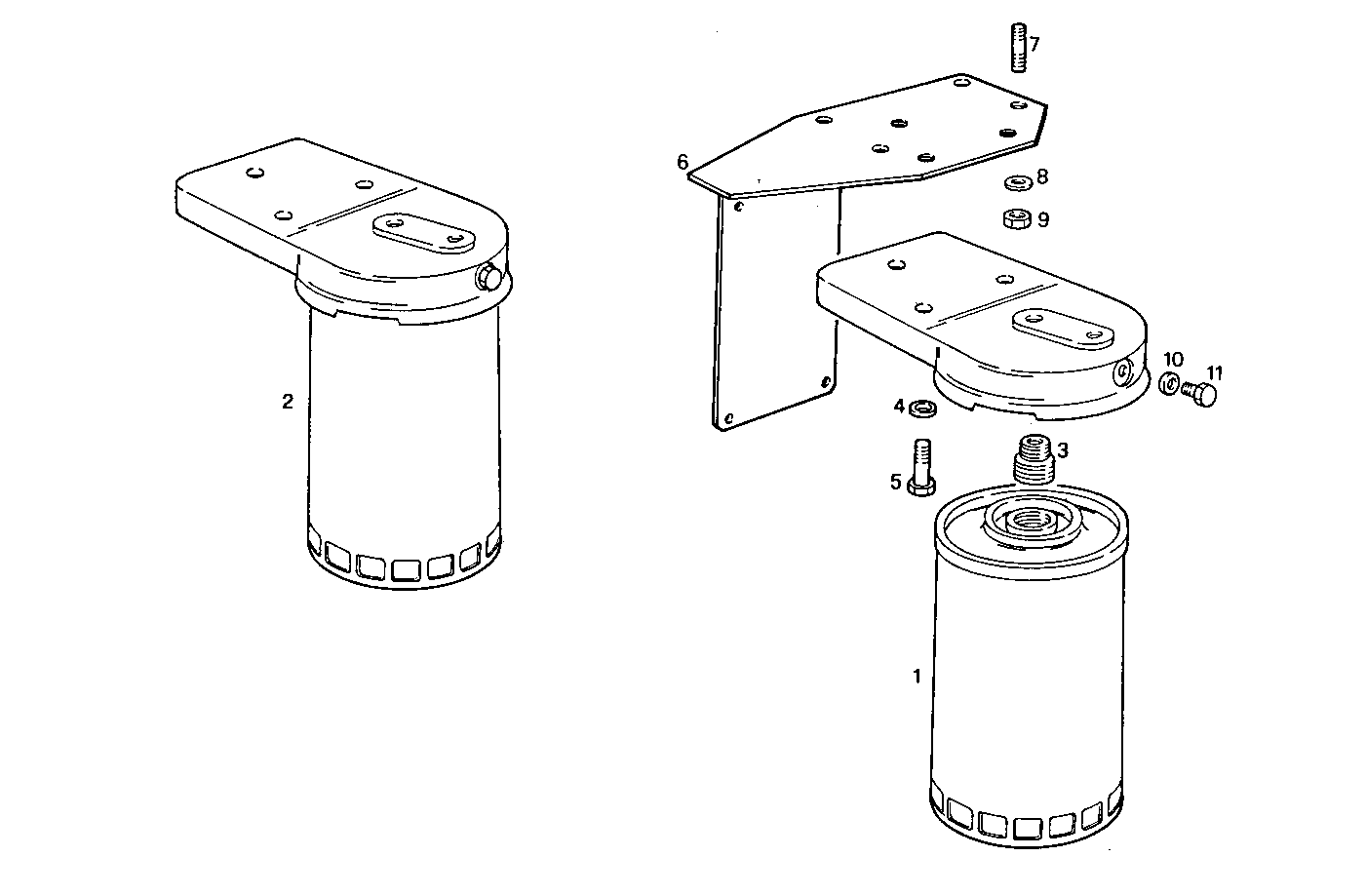

2000.032 FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 1901605 | FUEL FILTER ELEM. PRIMARY |
| 2 | 4802377 | FUEL FILTER ASSY |
| 3 | 4626466 | THREADED UNION |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 6 | 8009091 | SUPPORT |
| 7 | 16729224 | STUD M8X16 MM |
| 8 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 4626468 | SEAL GASKET |
| 11 | 4626467 | SCREW CAP/PLUG |
