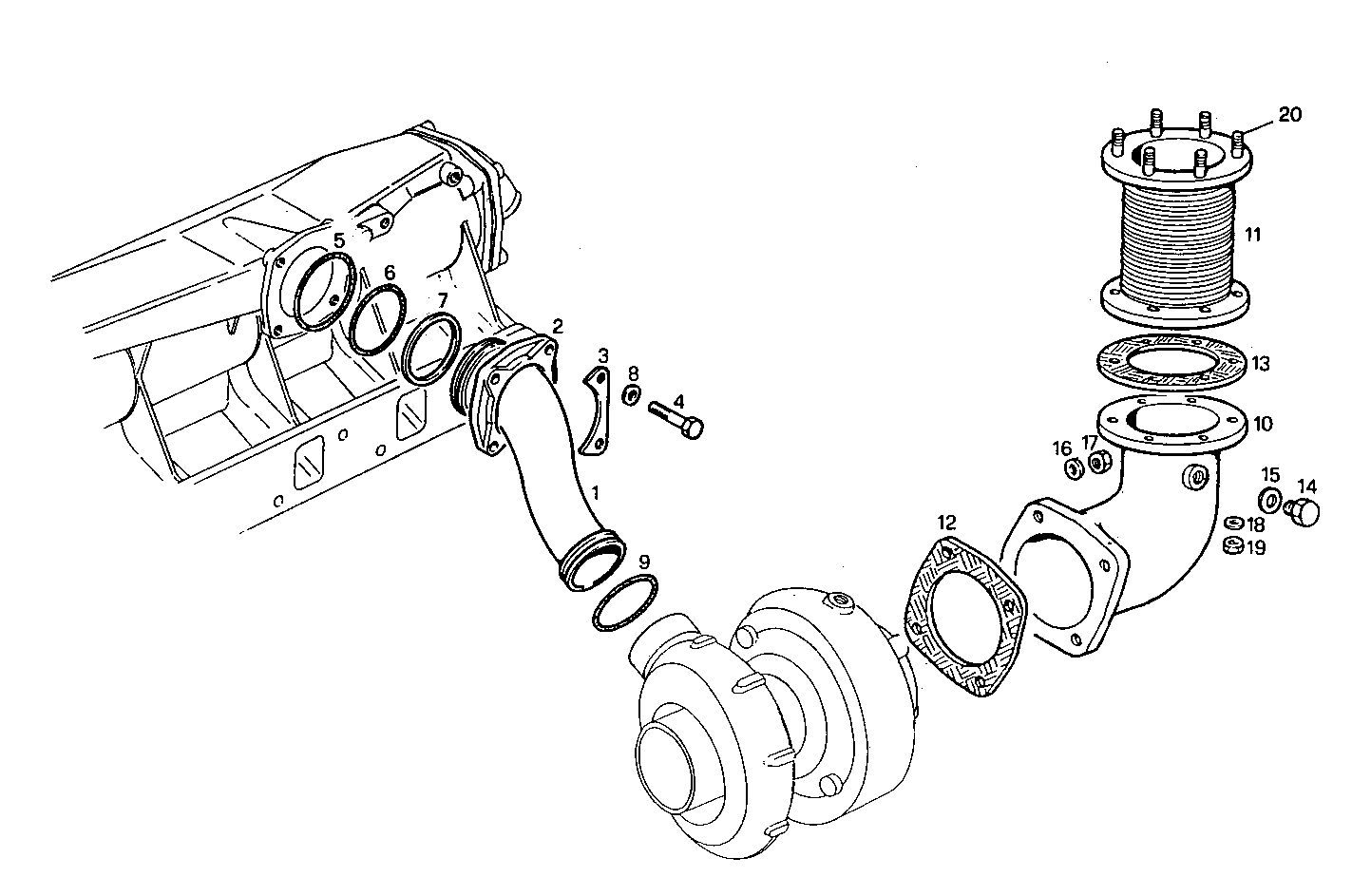

| Item |
Part number |
Description |
|
1 |
8008974 |
AIR PIPE/DUCT |
|
2 |
8105950 |
FLANGE |
|
3 |
8105952 |
PLATE |
|
4 |
16044021 |
HEXAGON BOLT M8X1,25X40 MM |
|
5 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
|
6 |
17290781 |
O-RING Ø78,97X3,53 MM |
|
7 |
8105951 |
CIRCLIP |
|
8 |
17089471 |
SPRING WASHER Ø16X8 MM SP=1,4 MM |
|
9 |
14471581 |
O-RING SP=5,33 MM |
|
10 |
8013472 |
EXHAUST ELBOW |
|
11 |
8101671 |
EXHAUST BELLOWS |
|
12 |
8111833 |
GASKET |
|
13 |
8009600 |
GASKET |
|
14 |
16992240 |
THREADED PLUG M12X1,5 |
|
15 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
17037931 |
HEXAGON NUT M8X1,25 |
|
18 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
19 |
17038121 |
HEXAGON NUT M10 |
|
20 |
13449524 |
STUD M10X1,25X15X25 |
