8460SRM28.12

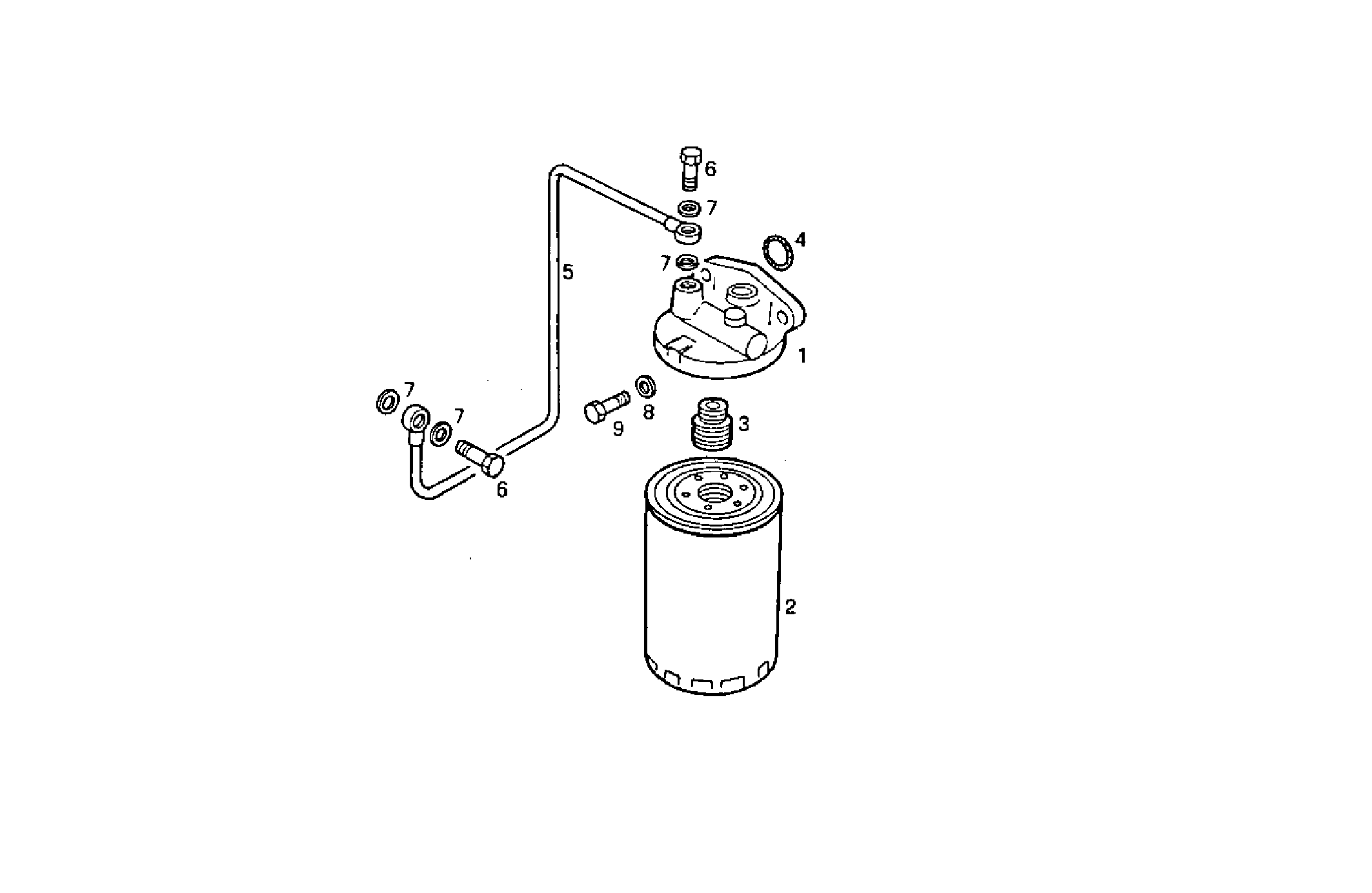

3280.011 WATER FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 4807728 | FILTER SUPPORT |
| 2 | 1901776 | WATER FILTER CARTRIDGE |
| 3 | 4807730 | BREATHER CONN. |
| 4 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 5 | 8014953 | WATER PIPE |
| 6 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
