8460SRM28.12

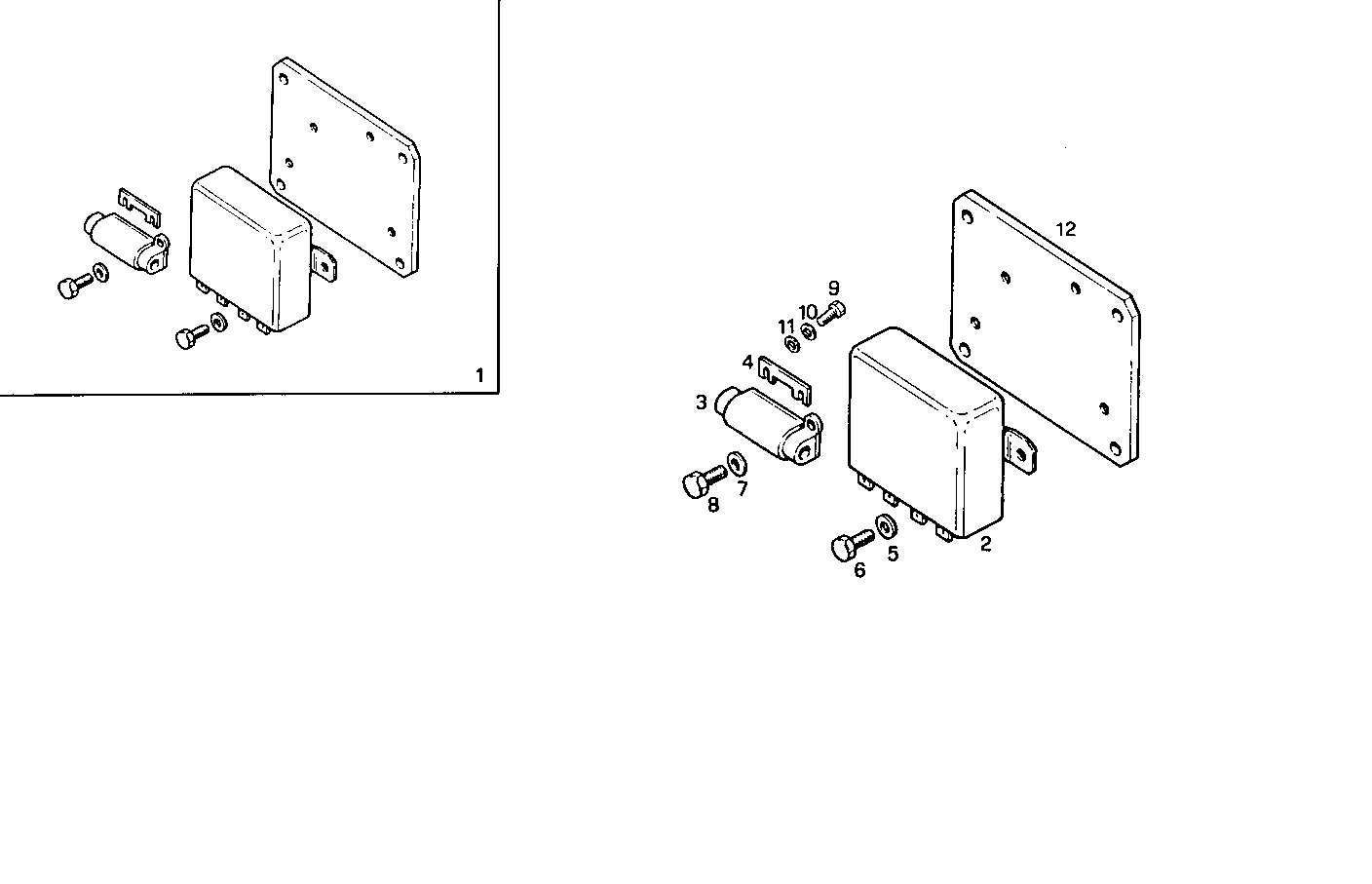

8600.009 ACCESSORIES
Item | Part number | Description |
---|---|---|
1 | 8017450 | ELECTR.CONTR.UNIT ASSY |
2 | 98435374 | ELECTR.CONTR.UNIT 24V PREHEATER CONTROL |
3 | 98433973 | FUSE BOX |
4 | 98436476 | FUSE |
5 | 17088474 | WASHER Ø6X12 MM |
6 | 16603524 | SCREW M6X12 MM (8.8) |
7 | 11181479 | WASHER Ø4X9X0,7 MM |
8 | 10444721 | HEXAGON BOLT M4 |
9 | 17131814 | SCREW M5X10 |
10 | 16665304 | WASHER Ø5X10X1 MM |
11 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
12 | 8017236 | PLATE |
