8460SRM28.12

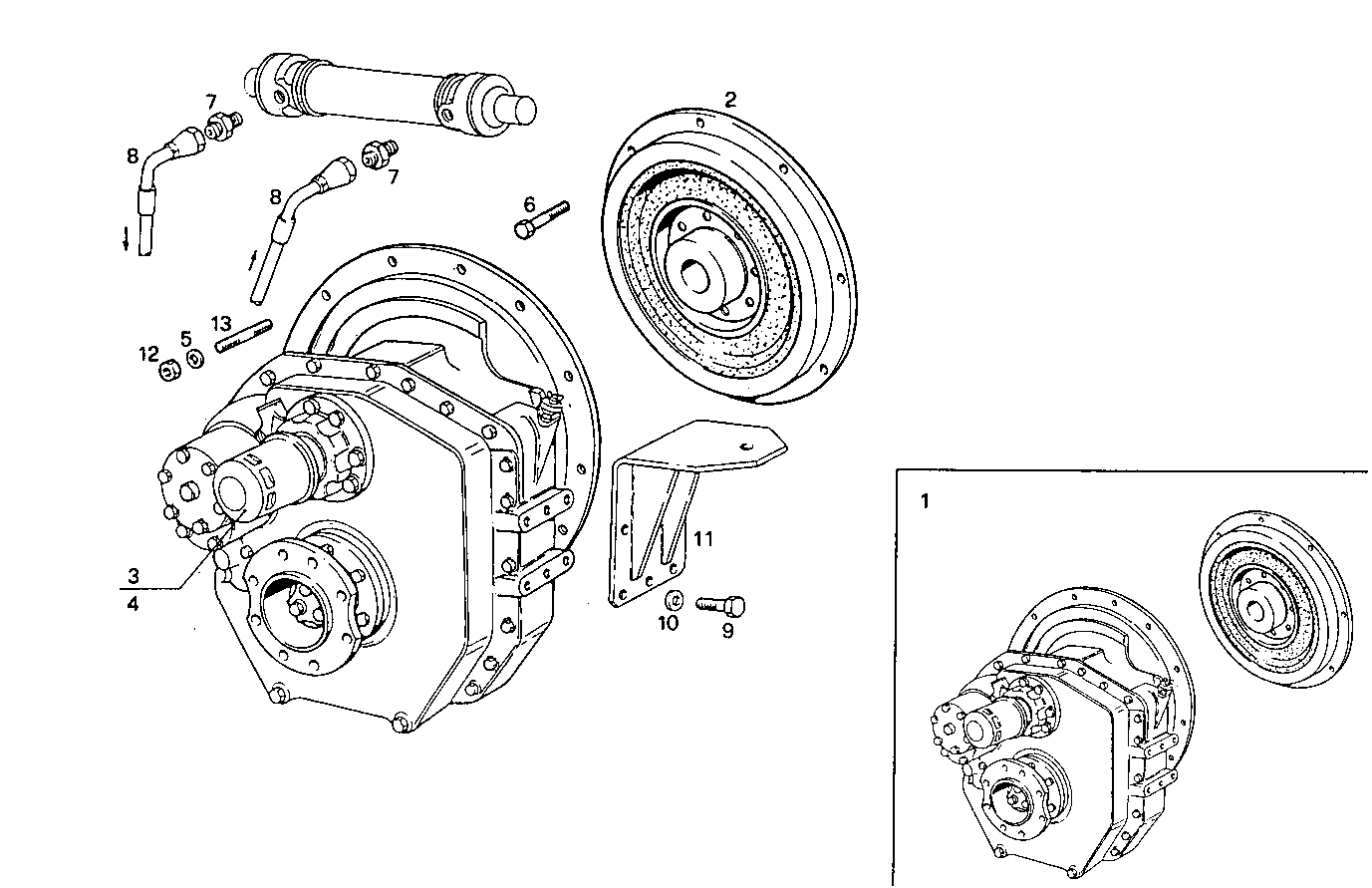

A50560022 MARINE GEAR ZF-MPM IRM 320-1 - ratio 2.96:1 with R.I.N.A. test

Iveco/FPT MARINE GEAR ZF-MPM IRM 320-1

Item Part number Description
1 8023267 MARINE GEAR 2,96:1
2 8023074 FLEXIBLE COUPLING
3 8007794 OIL FILTER CARTRIDGE ALTERNATIVE USE
4 8007795 OIL FILTER CARTRIDGE ALTERNATIVE USE
5 17090174 SPRING WASHER Ø10X20 MM
6 14274421 LOCKING SCREW M8X60 MM
7 8113742 PIPE SOCKET
8 8105619 HOSE
9 4932875 SCREW M16X2X45
10 17092171 WASHER Ø16X32X3,4 MM
11 8009656 SUPPORT
12 17038221 HEXAGON NUT M10
13 13453721 STUD M10X25X30
