8460SRM28.12

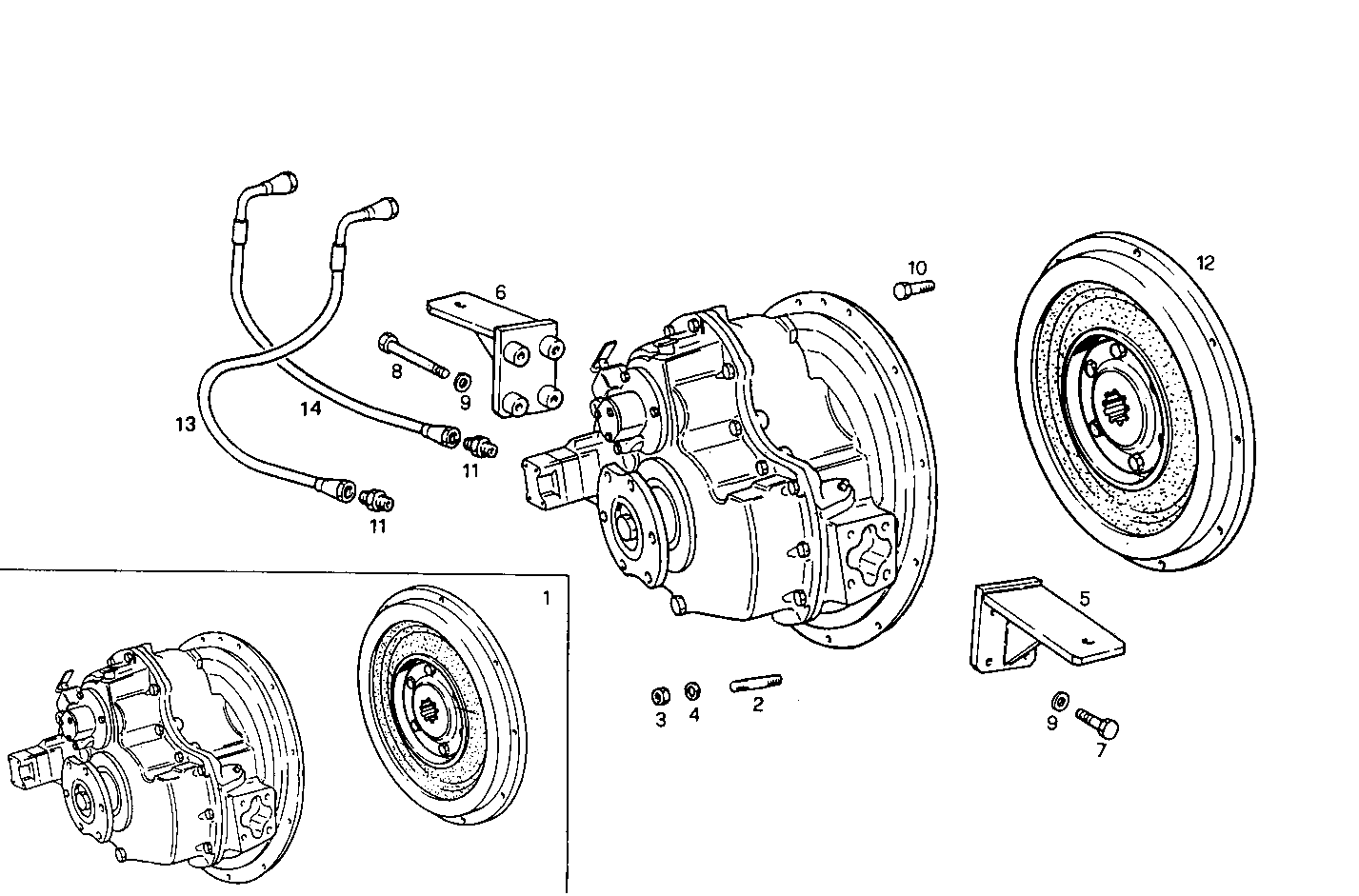

A51980006 MARINE GEAR TWIN DISC MG 507 A2 - ratio 1.51:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8023576 | MARINE GEAR 1,51:1 |
| 2 | 13543721 | STUD M8X16X35 MM |
| 3 | 12164711 | HEXAGON NUT M10X1,25 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 8010916 | SUPPORT RIGHT |
| 6 | 8010917 | SUPPORT LEFT |
| 7 | 11127521 | SCREW M16X35 |
| 8 | 15219921 | SCREW M16X70 |
| 9 | 17092171 | WASHER Ø16X32X3,4 MM |
| 10 | 14274421 | LOCKING SCREW M8X60 MM |
| 11 | 4935465 | PIPE SOCKET |
| 12 | 8023601 | FLEXIBLE COUPLING [from 05-97] |
| 13 | 4936603 | OIL HOSE |
| 14 | 4935779 | HOSE |
