8460SRM50.10

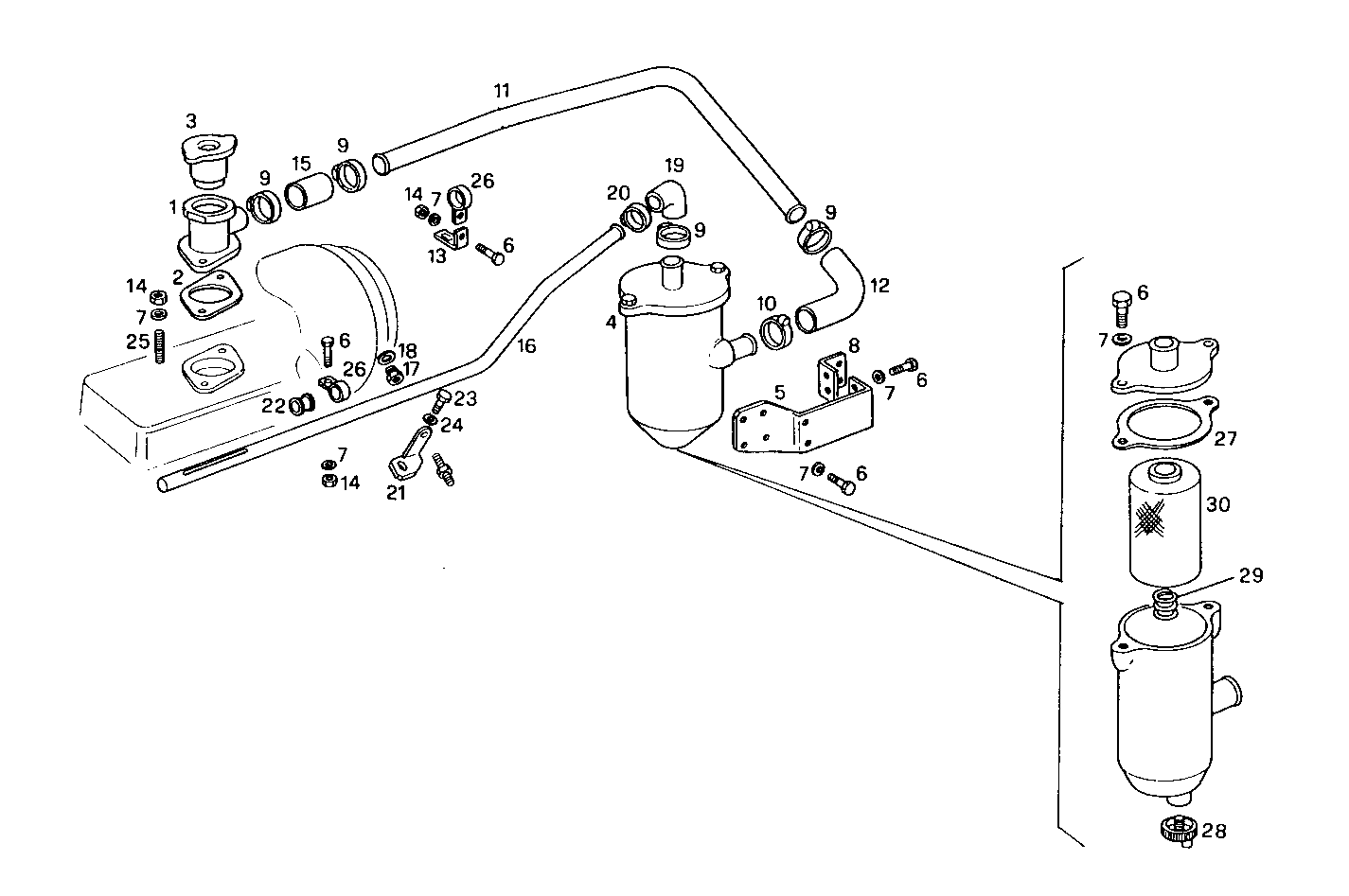

0450.131 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 8017609 | BREATHER |
| 2 | 8009901 | GASKET |
| 3 | 8823136 | LOCK PLUG |
| 4 | 8025344 | BREATHER ASSY |
| 5 | 8026065 | RETAINER |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 8026066 | RETAINER |
| 9 | 17764693 | CLIP Ø25/40 MM |
| 10 | 17764793 | CLIP Ø32/50 MM |
| 11 | 8026890 | CONNECTION PIPE |
| 12 | 8026350 | RUBBER SLEEVE |
| 13 | 8017670 | RETAINER |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 8105610 | RUBBER SLEEVE |
| 16 | 8026889 | CONNECTION PIPE |
| 17 | 98446813 | THREADED UNION |
| 18 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 19 | 98437331 | RUBBER SLEEVE |
| 20 | 17764593 | CLIP Ø20/32 MM |
| 21 | 8107409 | RETAINER |
| 22 | 4747140 | RUBBER PAD |
| 23 | 15970521 | HEXAGON BOLT M10X20 MM |
| 24 | 17090174 | SPRING WASHER Ø10X20 MM |
| 25 | 16746724 | STUD M8X25 MM |
| 26 | 4760226 | FASTENING BRACKET |
| 27 | 8023819 | GASKET |
| 28 | 8023893 | PLUG |
| 29 | 4965120 | SPRING |
| 30 | 4788504 | FUEL FILTER ELEM. |
