8460SRM50.10

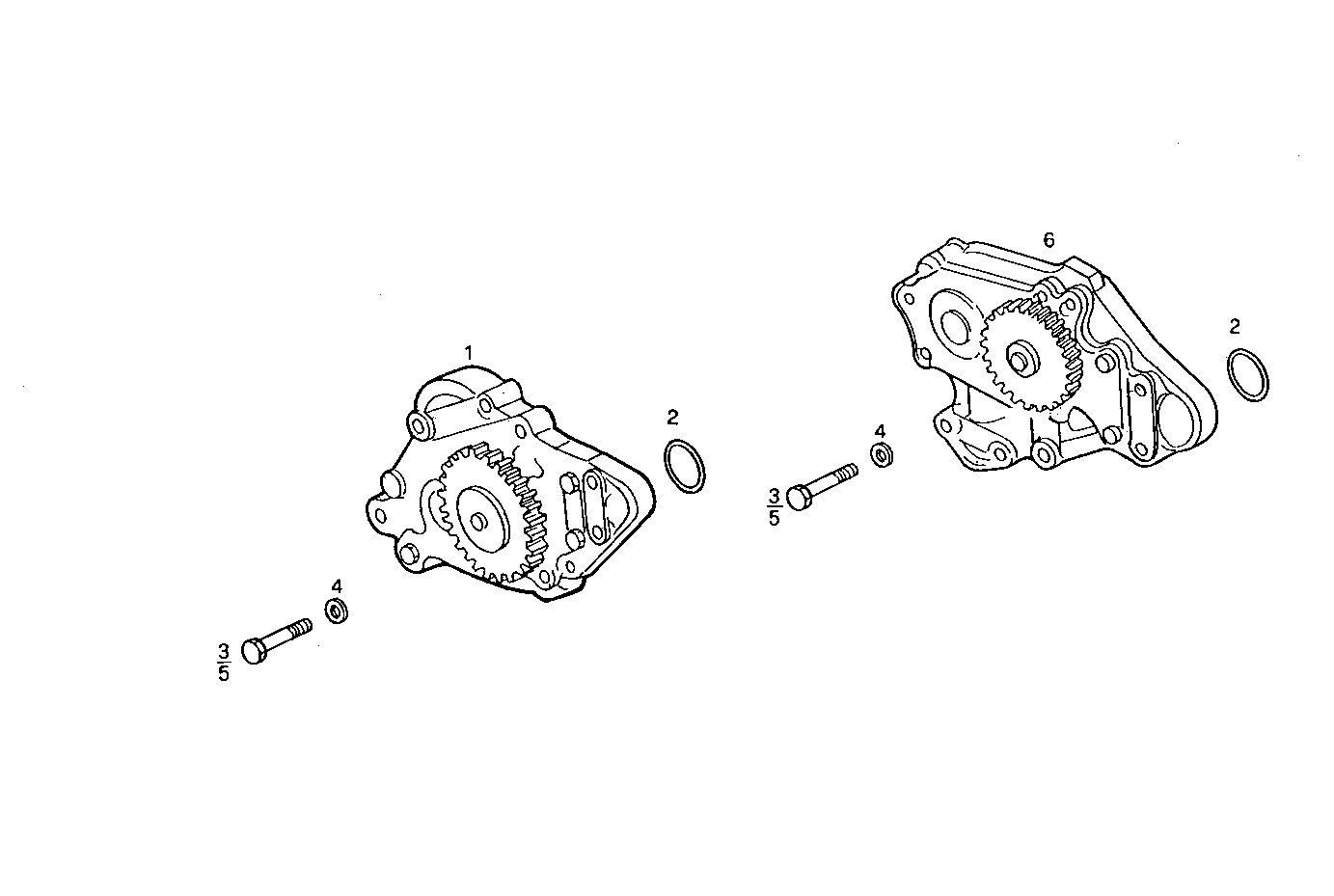

3000.035 OIL PUMP [D 456460] [from456460]
Item | Part number | Description |
---|---|---|
1 | 61318396 | LUBE OIL PUMP ASSY PRIMARY |
2 | 17282381 | O-RING Ø25,07 MM SP=2,62 MM |
3 | 11288024 | HEXAGON BOLT M10X1,25X60 MM |
4 | 17090274 | WASHER Ø10X20 MM |
5 | 11307024 | SCREW M10X1,25X40 MM |
6 | 61319221 | LUBE OIL PUMP ASSY SECONDARY |
