8460SRM50.10

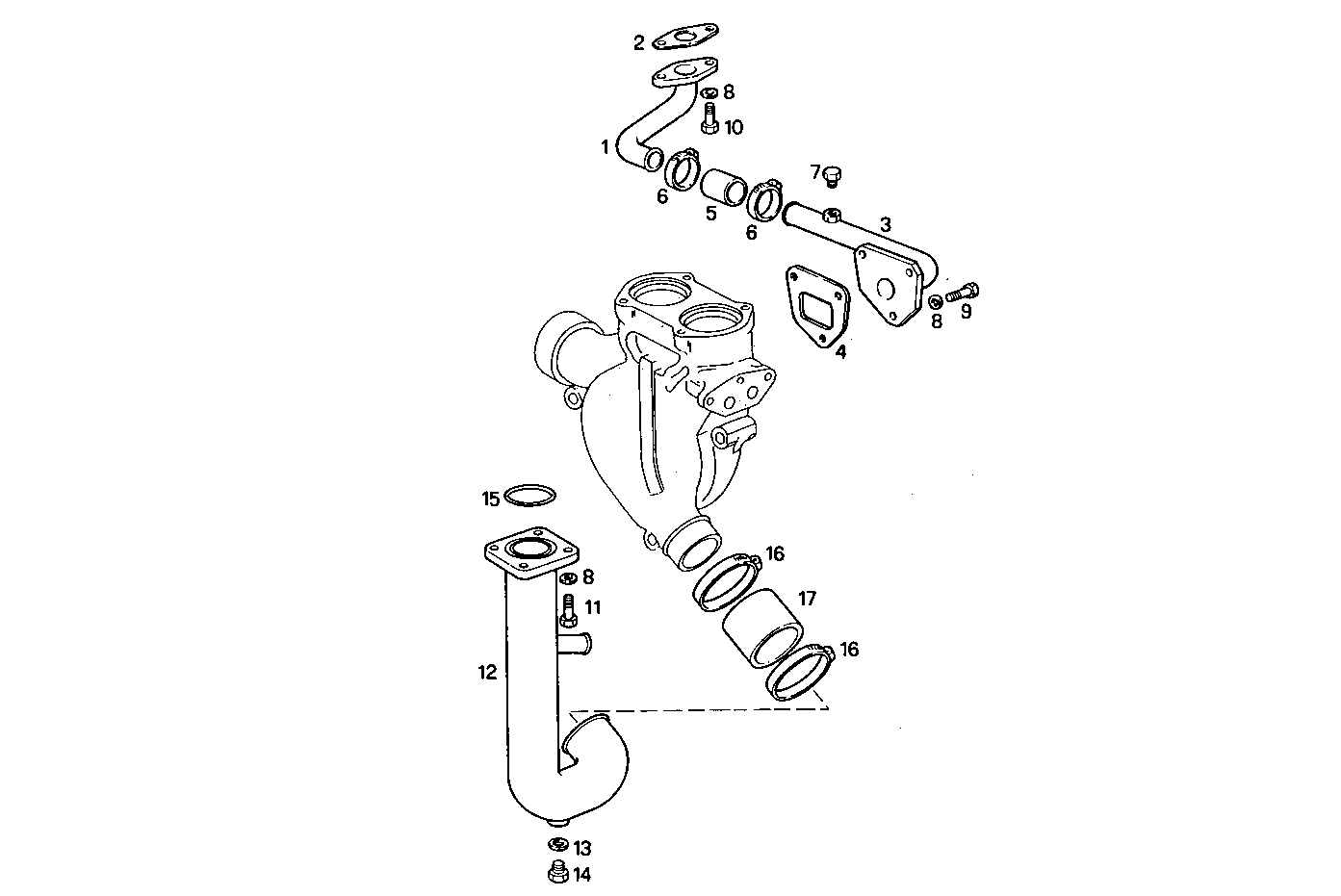

3210.071/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8005479 WATER PIPE
2 4863501 FLAT ENGINE GASKET
3 8014283 WATER PIPE
4 61318850 FLAT ENGINE GASKET
5 4778438 RUBBER SLEEVE WATER
6 17764693 CLIP Ø25/40 MM
7 16996511 THREADED PLUG M22X1,5
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 16605524 HEXAGON BOLT M8X20 MM
10 16043321 HEXAGON BOLT M8X18 MM
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 8017315 WATER PIPE
13 10263460 WASHER Ø22X28X1,5 MM
14 16992611 THREADED PLUG M22X1,5
15 17290781 O-RING Ø78,97X3,53 MM
16 17765093 CLIP Ø60/80 MM
17 98438633 WATER HOSE dia. 60 - L. 70
