8460SRM50.10A002

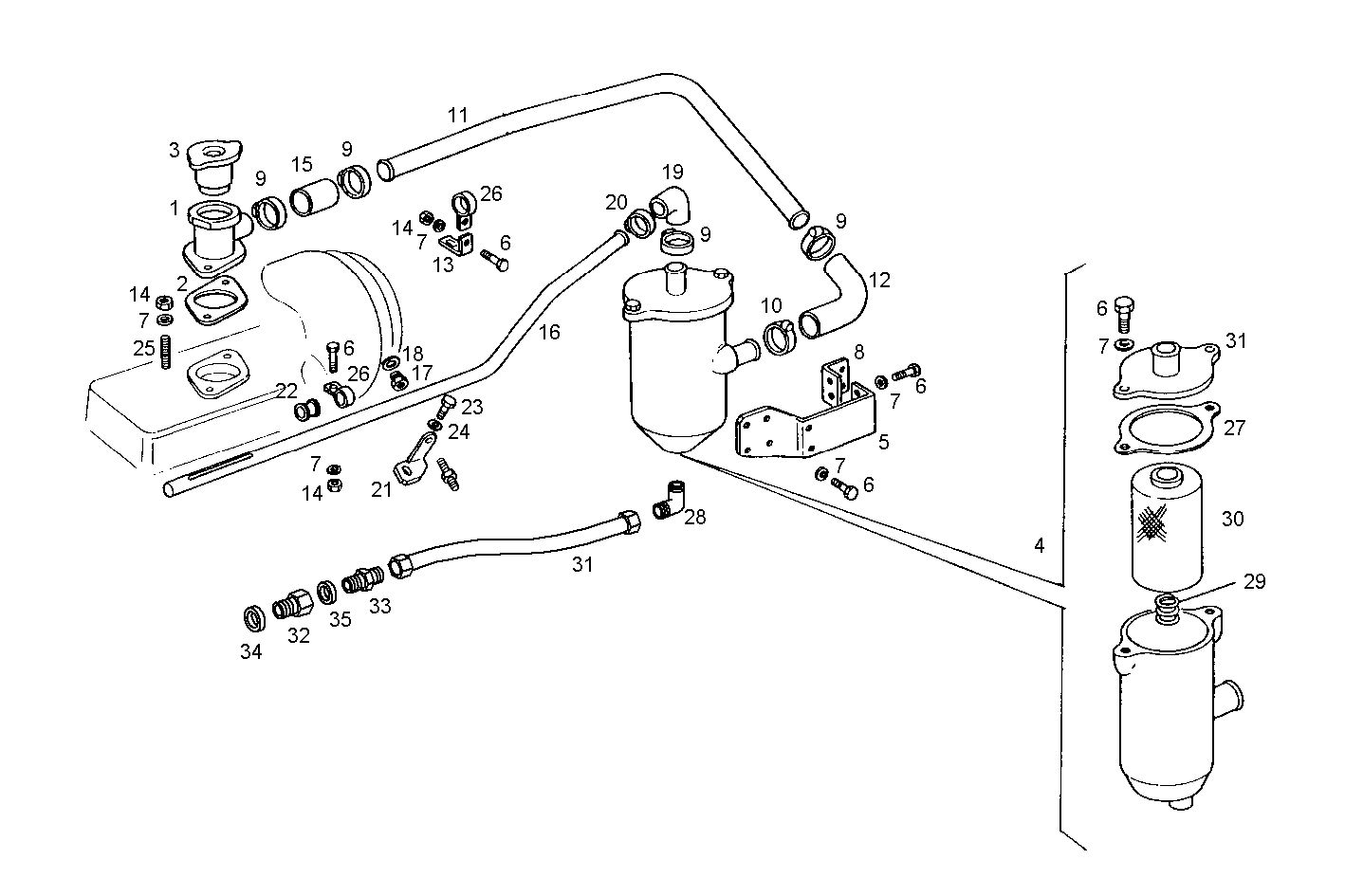

0450.181 ENGINE BREATHERS [D 02-2001] [from02-2001]

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 8017609 BREATHER
2 8009901 GASKET
3 8823136 LOCK PLUG
4 8031861 BREATHER ASSY
5 8026065 RETAINER
6 16605524 HEXAGON BOLT M8X20 MM
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 8026066 RETAINER
9 17764693 CLIP Ø25/40 MM
10 17764793 CLIP Ø32/50 MM
11 8026890 CONNECTION PIPE
12 8026350 RUBBER SLEEVE
13 8017670 RETAINER
14 17037931 HEXAGON NUT M8X1,25
15 8105610 RUBBER SLEEVE
16 8026889 CONNECTION PIPE
17 98446813 THREADED UNION
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 98437331 RUBBER SLEEVE
20 17764593 CLIP Ø20/32 MM
21 8107409 RETAINER
22 4747140 RUBBER PAD
23 15970521 HEXAGON BOLT M10X20 MM
24 17090174 SPRING WASHER Ø10X20 MM
25 16746724 STUD M8X25 MM
26 4760226 FASTENING BRACKET
27 8023819 GASKET
28 8111261 PIPE SOCKET Ø1/8'' MM
29 4965120 SPRING
30 4788504 FUEL FILTER ELEM.
31 8021856 HOSE L=450 MM
32 4881606 PIPE SOCKET
33 41905549 SCREW CONNECTOR
34 4858610 WASHER Ø18X24 MM SP=1,5 MM
35 4858606 GASKET Ø10X14X1 MM
