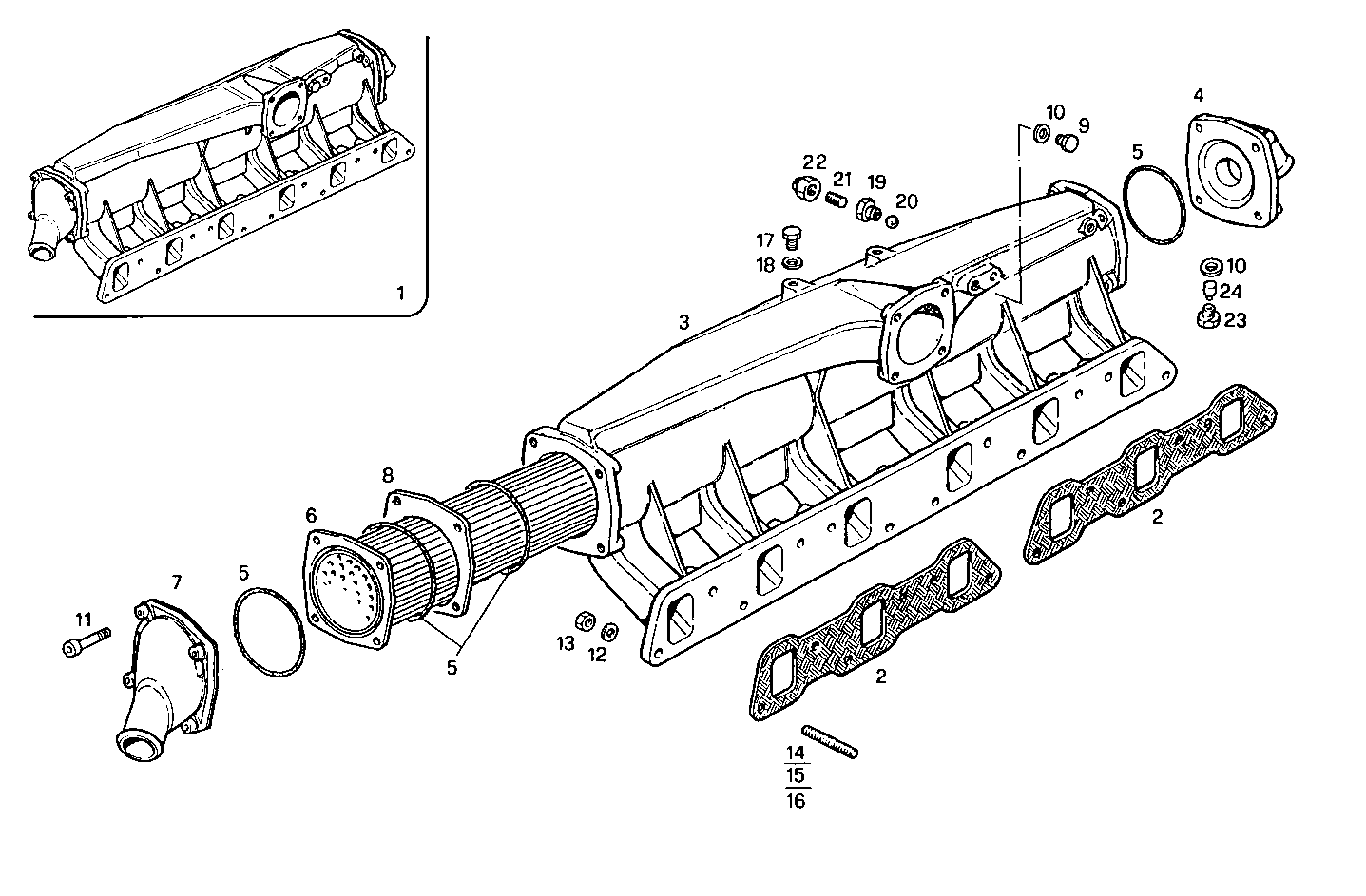

| Item |
Part number |
Description |
|
1 |
8009086 |
INTAKE ELBOW ASSY |
|
2 |
61321089 |
INTAKE ELBOW GASK. |
|
3 |
8012453 |
INTAKE ELBOW |
|
4 |
8012454 |
COVER |
|
5 |
17291981 |
O-RING Ø117,07X3,53 MM |
|
6 |
8012456 |
TUBE STACK |
|
7 |
8012455 |
COVER |
|
8 |
8012457 |
SPACING BAR |
|
9 |
16992540 |
PLUG M18X1,5 |
|
10 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
11 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
17038221 |
HEXAGON NUT M10 |
|
14 |
13449721 |
STUD M10X15X30 |
|
15 |
13450521 |
STUD M10X15X70 |
|
16 |
13953821 |
STUD M10X15X120 |
|
17 |
4595833 |
THREADED PLUG M20X1,5 |
|
18 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
19 |
8025610 |
PIPE SOCKET |
|
20 |
8017600 |
BALL Ø10 MM |
|
21 |
8025611 |
SCREW M10X25 |
|
22 |
8025612 |
NUT |
|
23 |
4917793 |
PLUG M18 |
|
24 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
