Catalogue Menu
8460SRM50.10A002

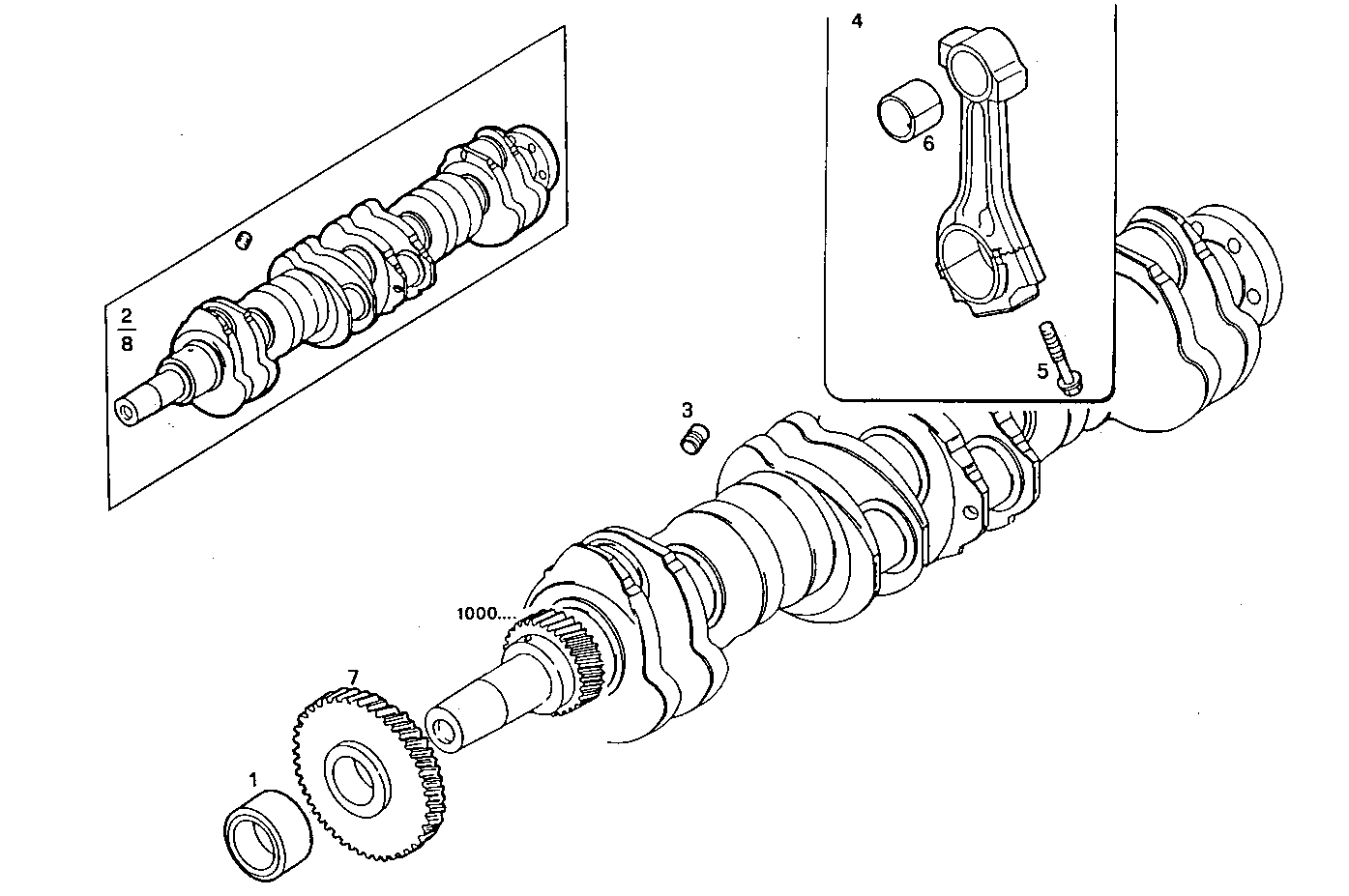

0800.053 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 61316775 | CENTERING BUSH |
2 | 61318243 | CRANK SHAFT ASSY |
3 | 61577322 | LOCK PLUG |
4 | 61319082 | CONN.ROD ASSY. |
5 | 61315181 | BIG-END BOLT |
6 | 61317845 | BIG-END BUSH |
7 | 61318596 | CAMSHAFT PINION |
8 | 61321276 | CRANK SHAFT ASSY [from 07-96] |
