8460SRM50.10A002

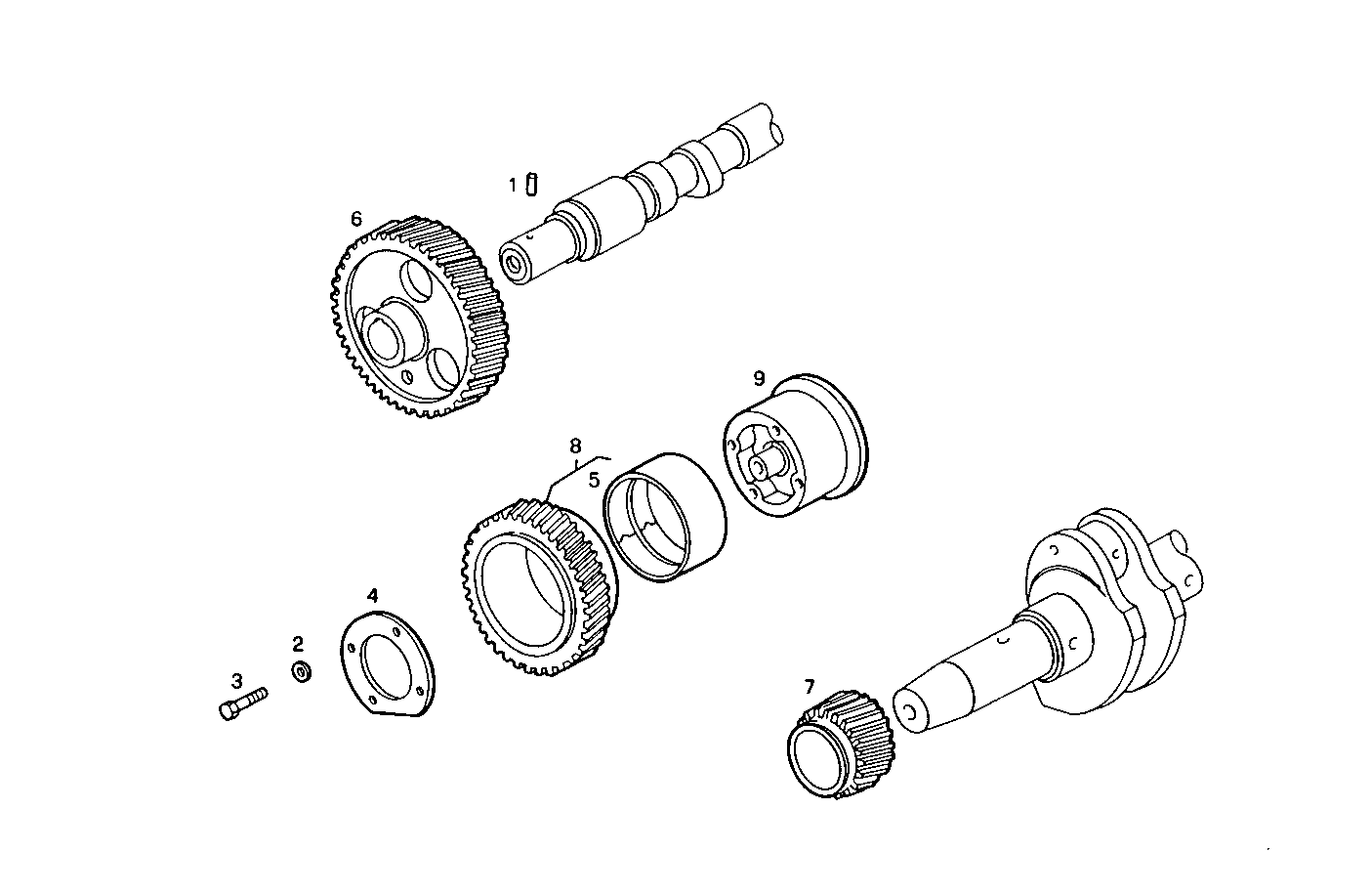

1000.015 GEAR DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 10839610 | DOWEL PIN Ø8 MM |
| 2 | 17089574 | WASHER Ø8X16 MM |
| 3 | 16044734 | SCREW M8X75 |
| 4 | 61315842 | RING |
| 5 | 61315844 | CENTERING BUSH |
| 6 | 61316208 | CAMSHAFT PINION |
| 7 | 61316216 | TIMING DRIVE GEAR |
| 8 | 61316289 | INJ.PUMP DRIV.GEA ASSY |
| 9 | 61316848 | FLANGED HUB |
