8460SRM50.10A002

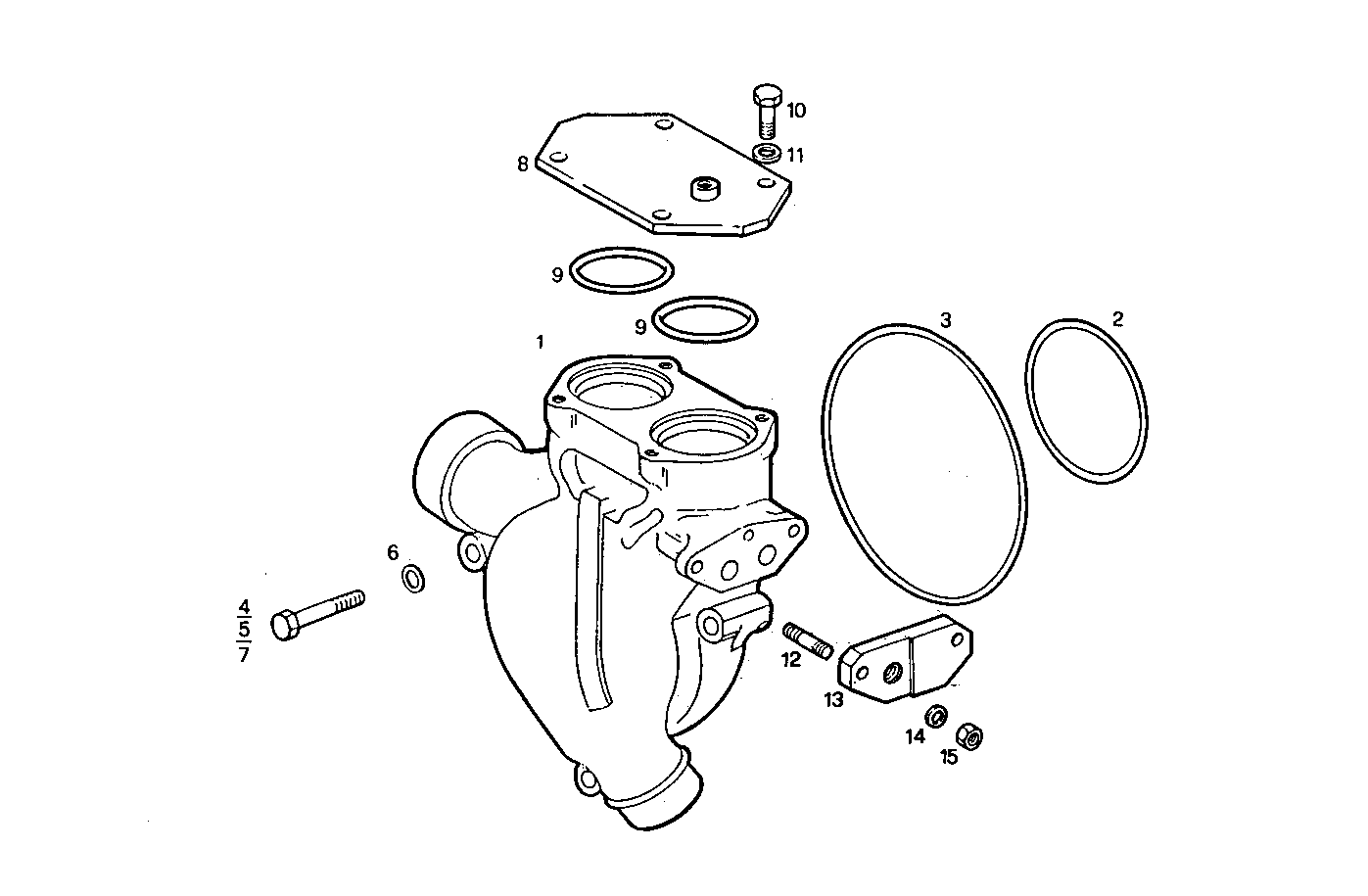

3200.058 WATER PUMP

Iveco/FPT WATER PUMP

Item Part number Description
1 61321400 WATER PUMP ASSY
2 17285281 O-RING Ø71,12 MM SP=2,62 MM
3 98461200 O-RING Ø120,32 MM SP=2,62
4 11343824 HEXAGON BOLT M10X1,25X50 MM
5 15971324 SCREW M10X75 MM
6 11198374 SPRING WASHER Ø10X20 MM
7 15972224 HEXAGON BOLT M10X1,25X120 MM
8 8014274 COVER
9 17296081 O-RING Ø56,52X5,33 MM
10 15004021 HEXAGON BOLT M10X1,25X25 MM
11 17090174 SPRING WASHER Ø10X20 MM
12 16729424 STUD M8X1,25X25
13 8007620 COVER
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 17037931 HEXAGON NUT M8X1,25
