8460SRM50.10A002

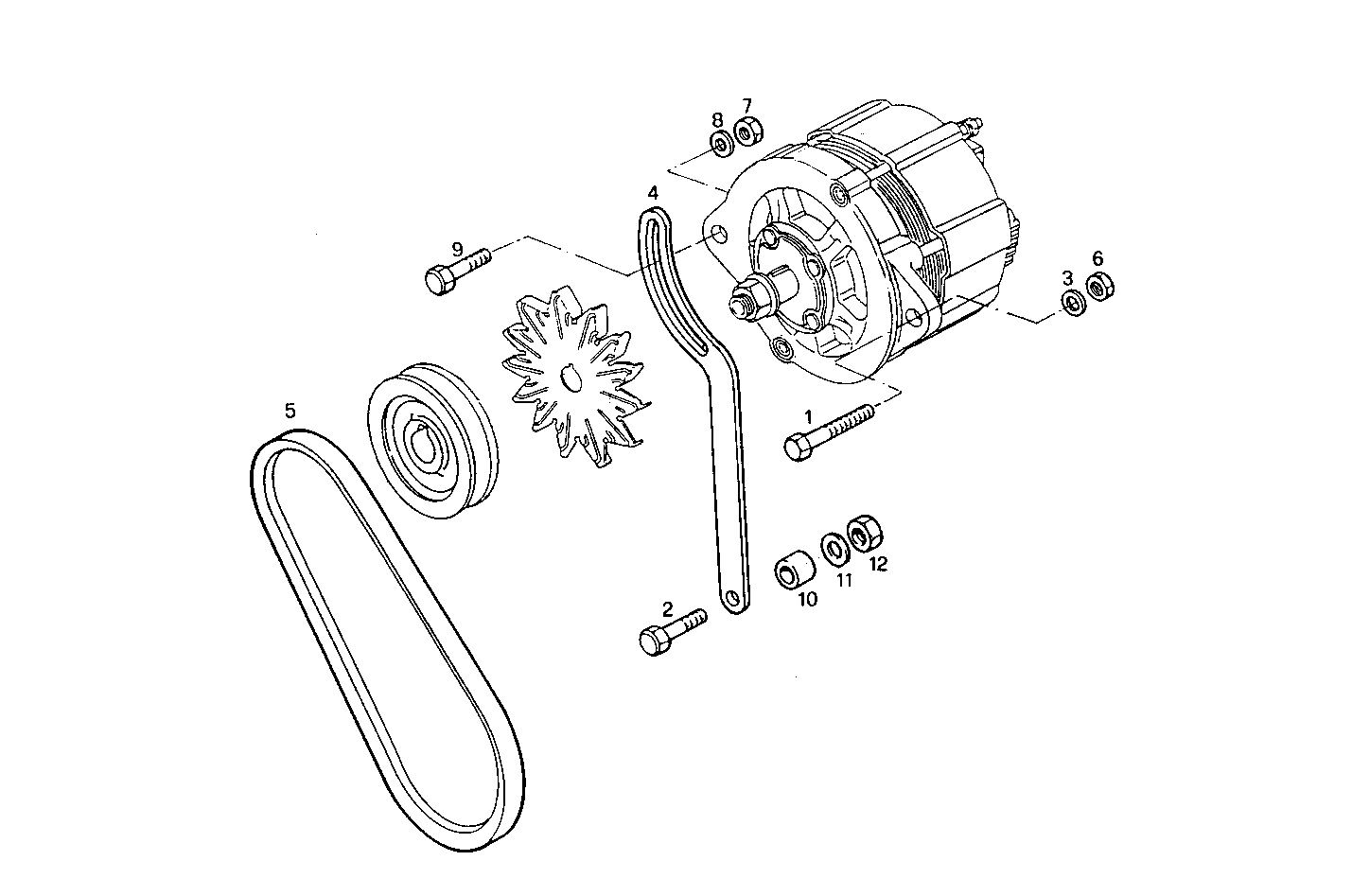

4010.052 MOUNT
Item | Part number | Description |
---|---|---|
1 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
2 | 15541221 | HEXAGON BOLT M12X1,25X70 MM [up to 565948] |
3 | 17095304 | WASHER Ø12X24 MM |
4 | 8014930 | BELT TENSIONER |
5 | 8015778 | V-BELT |
6 | 17157521 | NUT M12X1,25 |
7 | 17157221 | NUT M10X1,25 |
8 | 17095104 | WASHER Ø10X21X2 MM |
9 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
10 | 8112397 | SPACING BAR |
11 | 17091074 | WASHER Ø12X24X2,8 MM |
12 | 17038621 | NUT M12 |
