8460SRM50.10A002

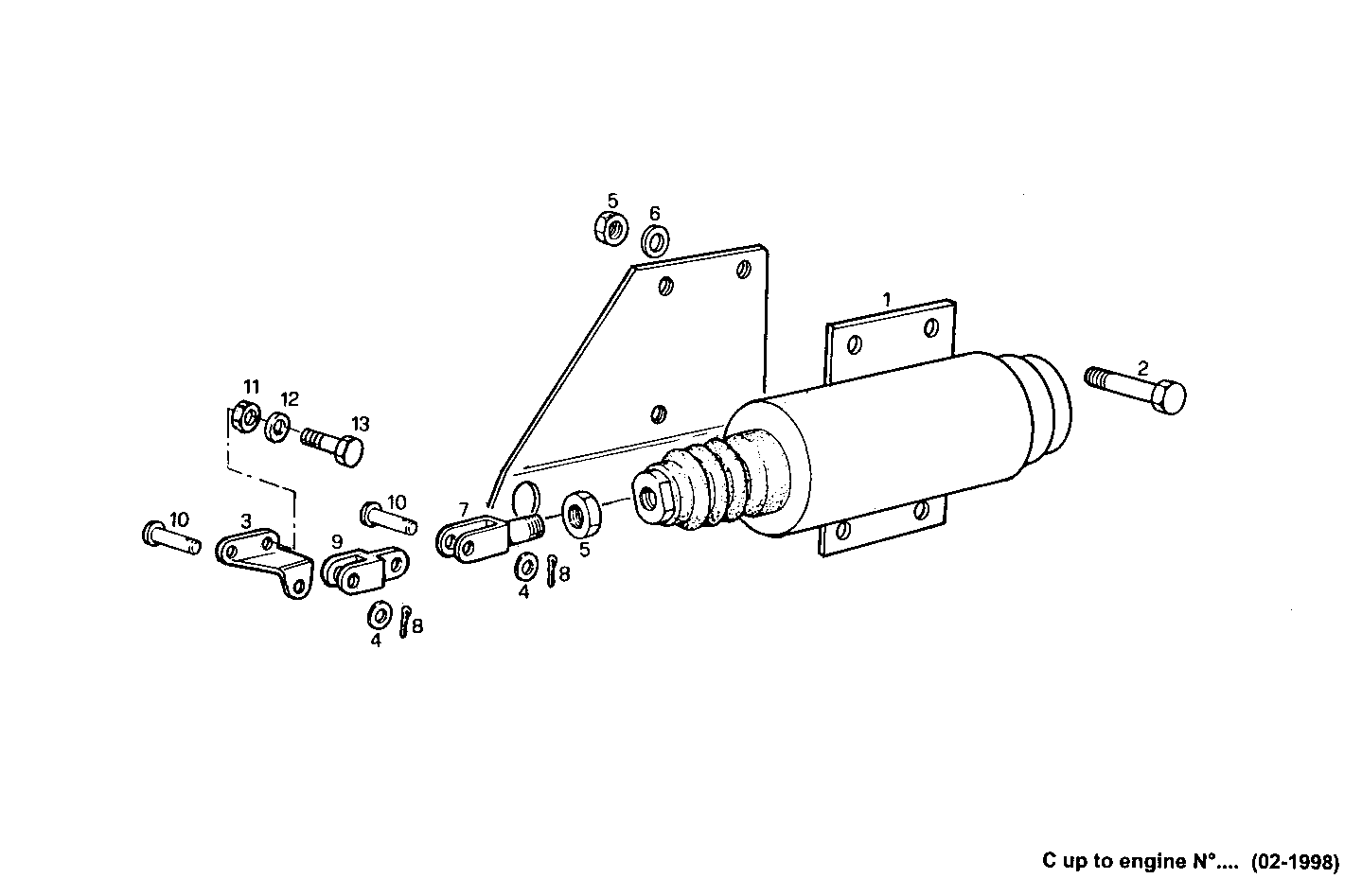

5650.030/01 ELECTRIC STOP ENGINE
Item | Part number | Description |
---|---|---|
1 | 8017206 | SOLENOID 24V [from 06-95] |
2 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
3 | 8018543 | LEVER |
4 | 17094504 | WASHER Ø5,3X10 MM |
5 | 17037821 | HEXAGON NUT M6X1 |
6 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
7 | 8108834 | CLEVIS |
8 | 16851301 | SPLIT PIN |
9 | 8108833 | CLEVIS |
10 | 17718411 | PIN Ø5 MM |
12 | 17088474 | WASHER Ø6X12 MM |
13 | 16603524 | SCREW M6X12 MM (8.8) |
