8460SRM50.10A002

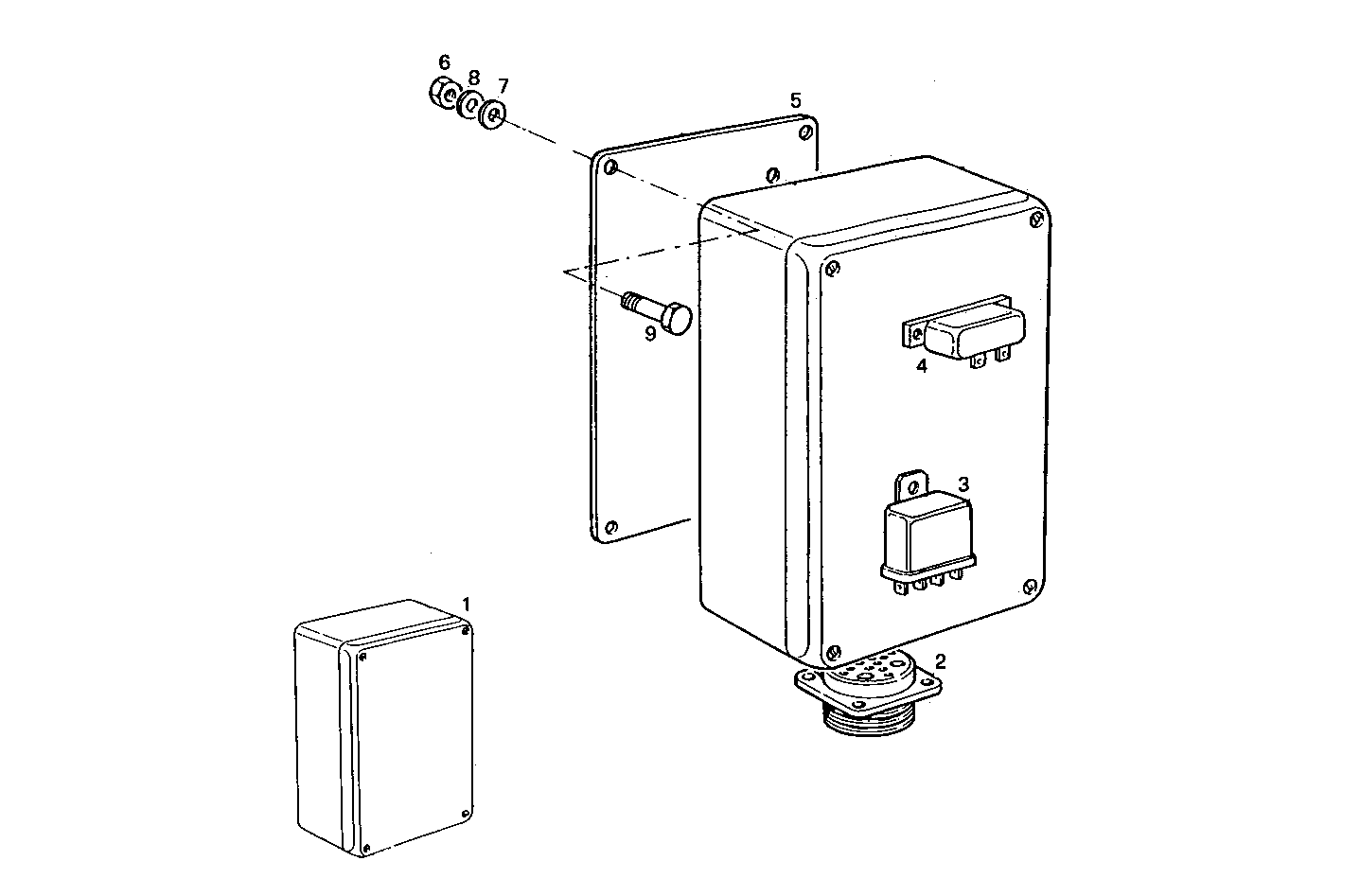

5650.030/03 ELECTRIC STOP ENGINE

Iveco/FPT ELECTRIC STOP ENGINE

Item Part number Description
1 8020687 ENGINE STOP ASSY [from 05-95]
2 8113170 CONNECTION ASSY
3 8108575 RELAY STARTER [up to 12-90]
4 8109519 RELAY STOP [up to 05-95]
5 8028603 PLATE
6 17037821 HEXAGON NUT M6X1
7 17094714 WASHER Ø6,4X12 MM
8 17494734 WASHER Ø6X11,8X1,6 MM
9 16603724 HEXAGON BOLT M6X20 MM (8.8)
