8460SRM50.10A002

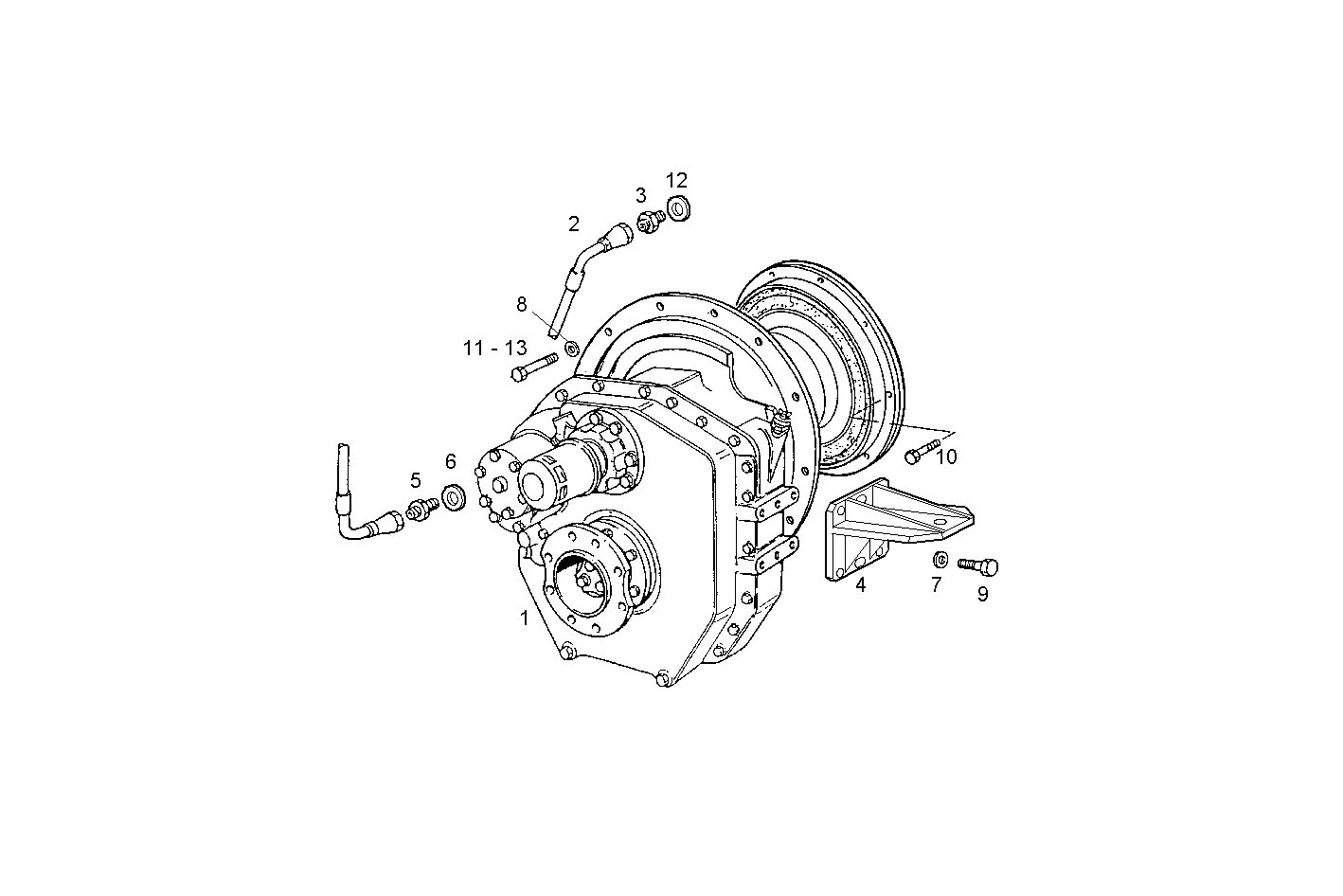

A51115002 MARINE GEAR ZF 325-1A - ratio 1.485:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8037384 | MARINE GEAR |
| 2 | 8105619 | HOSE |
| 3 | 8100897 | PIPE SOCKET 1/2"/M16X1,5 |
| 4 | 8038088 | SUPPORT |
| 5 | 8023701 | PIPE SOCKET |
| 6 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 7 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 16614524 | HEXAGON BOLT M16X35 MM |
| 10 | 16326033 | LOCKING SCREW |
| 11 | 11306921 | SCREW M10X1,25X30 |
| 12 | 11270460 | GASKET Ø17X21X1,5 MM |
| 13 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
