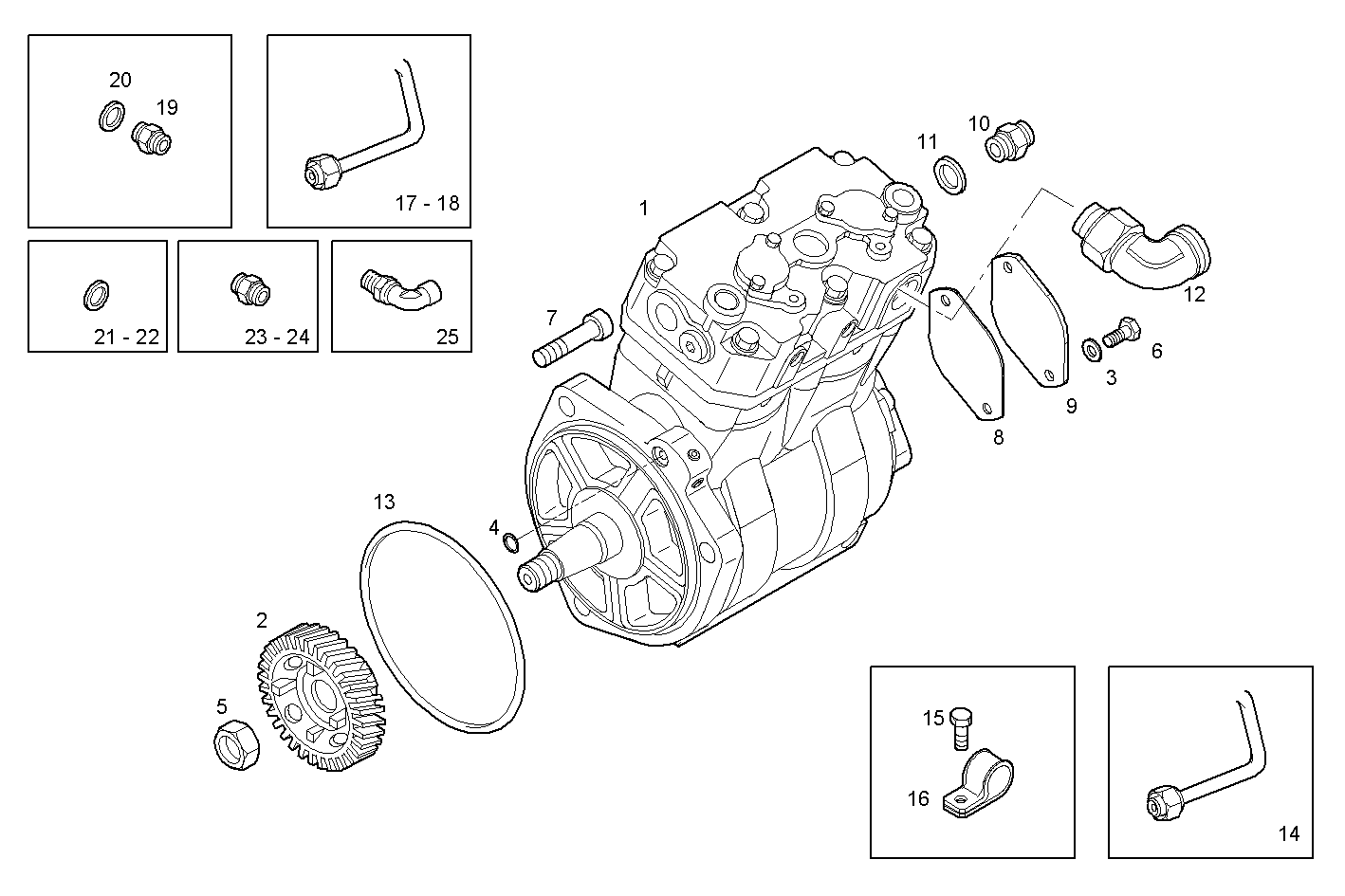

| Item |
Part number |
Description |
|
1 |
41211340 |
AIR COMPRESSOR ASSY |
|
2 |
99437433 |
DRIVE GEAR |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
17281381 |
O-RING Ø9,19 MM [FROM TO # 62977] |
|
5 |
99471892 |
HEXAGON NUT |
|
6 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
7 |
16693924 |
CYLIND-HEAD SCREW M12X35MM |
|
8 |
8025370 |
FLAT ENGINE GASKET |
|
9 |
8025369 |
PTO COVER |
|
10 |
61599713 |
THREADED UNION M26X1,5 |
|
11 |
16508560 |
WASHER Ø26X31 MM |
|
12 |
99456380 |
ELBOW COUPLING M26X1,5 - M36X2 |
|
13 |
17292281 |
O-RING Ø126,59 MM SP=3,53 MM |
|
14 |
41218732 |
AIR PIPE/DUCT |
|
15 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
16 |
17317390 |
FASTENING BRACKET Ø28 MM x M8 |
|
17 |
500354898 |
WATER PIPE |
|
18 |
500354904 |
WATER PIPE |
|
19 |
16500415 |
PIPE SOCKET |
|
20 |
99489020 |
SEAL GASKET Ø18X26 MM SP=1,5 MM |
|
21 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
22 |
16508060 |
SEAL GASKET Ø12X15,5 MM |
|
23 |
42087093 |
PIPE SOCKET M12X1,5 |
|
24 |
99476542 |
THREADED UNION M12X1,5 |
|
25 |
98427977 |
ELBOW COUPLING M12X1,5 |
