C10ENTD20.20

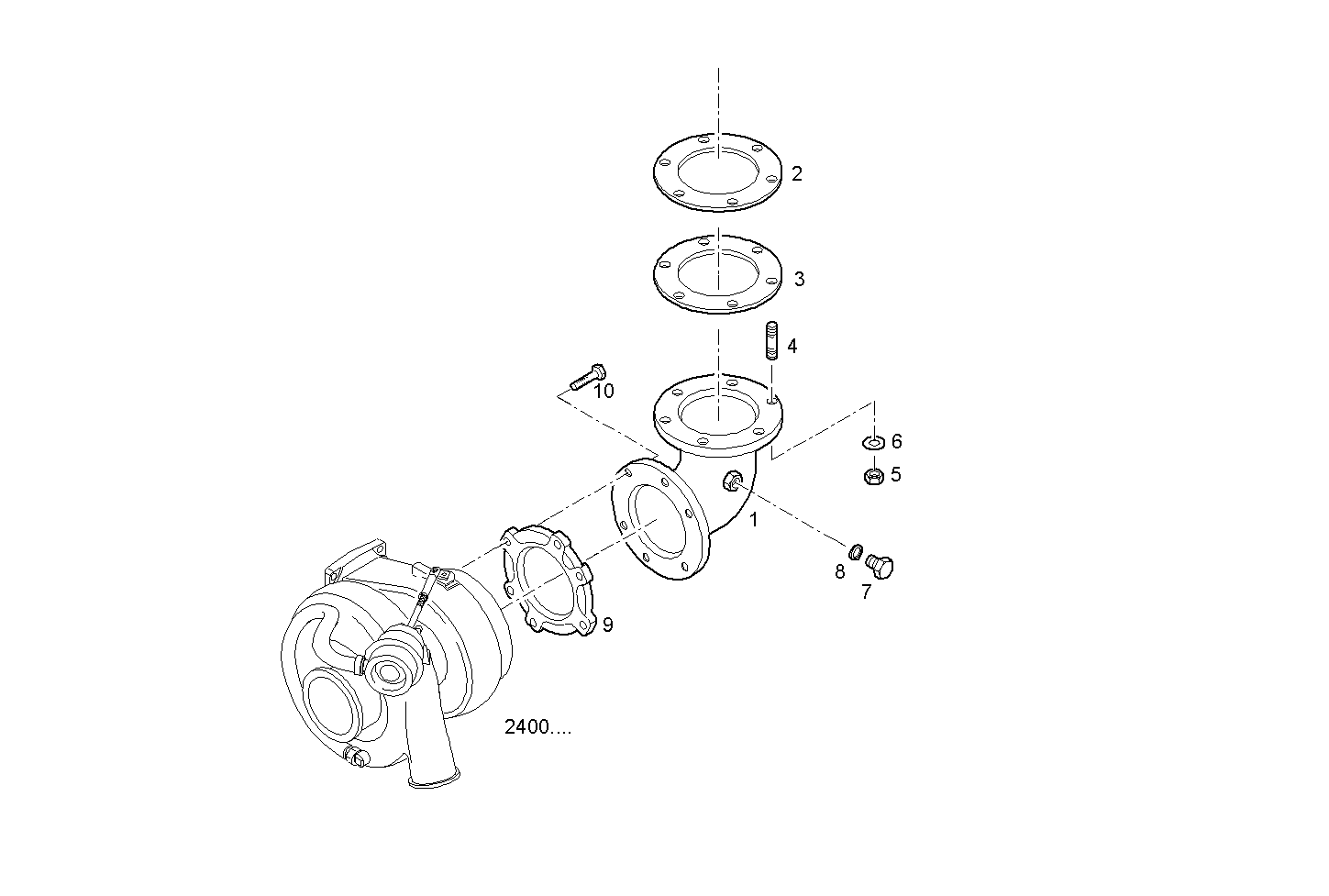

A40000506 EXHAUST PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8038302 | EXHAUST ELBOW |
| 2 | 8103591 | FLANGE |
| 3 | 8009600 | GASKET |
| 4 | 16731234 | STUD M10X1,5X25 |
| 5 | 17038131 | HEXAGON NUT M10 |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 16992211 | THREADED PLUG M12X1,5 |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 4772331 | SEAL GASKET |
| 10 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
