C10ENTX20.00A008

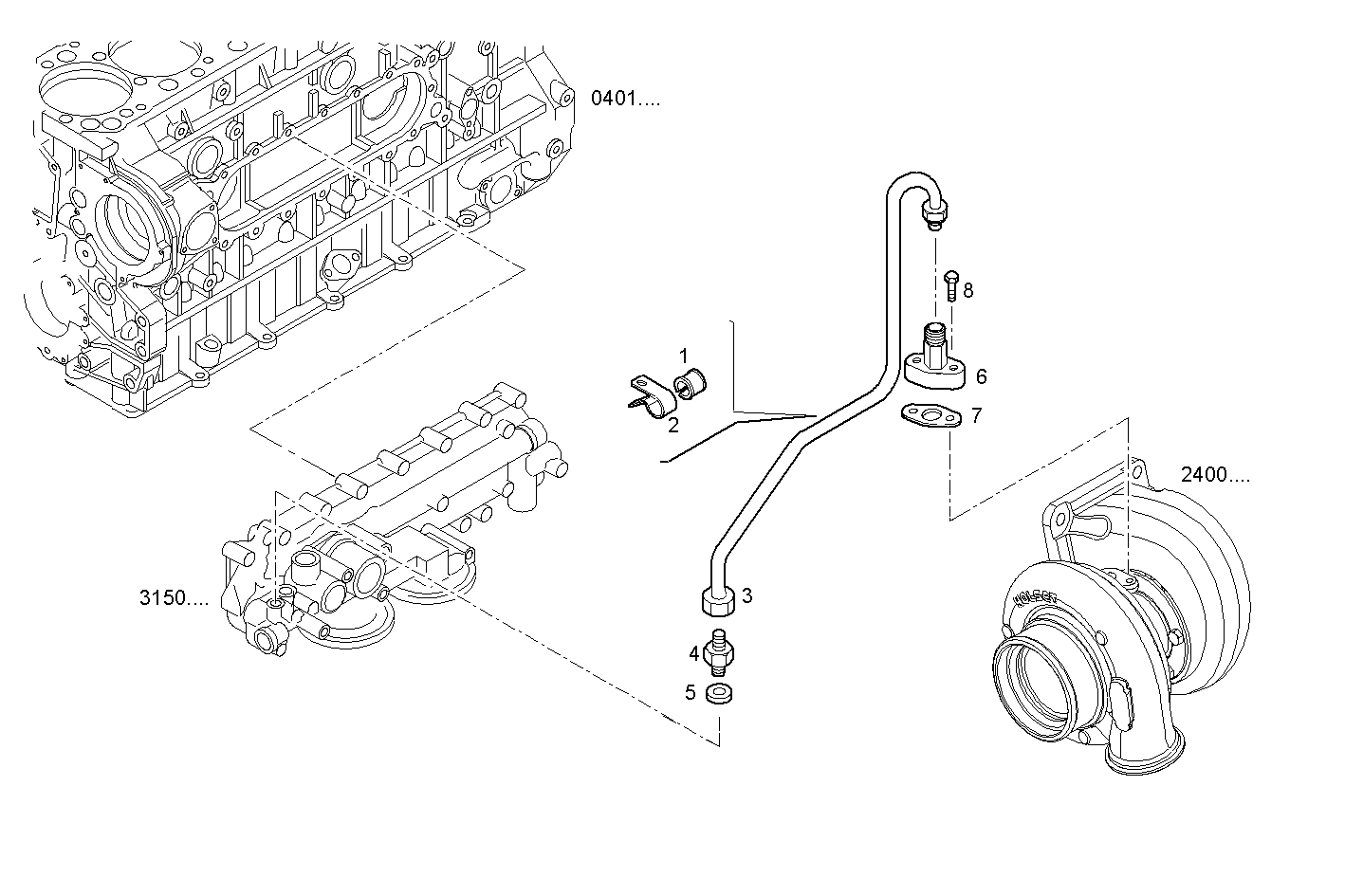

3064.030 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 4755964 | RUBBER PAD |
| 2 | 4755963 | FASTENING BRACKET |
| 3 | 8051038 | OIL LINE |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 6 | 4764795 | THREADED UNION |
| 7 | 61318303 | GASKET |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
