C10ENTX20.00A008

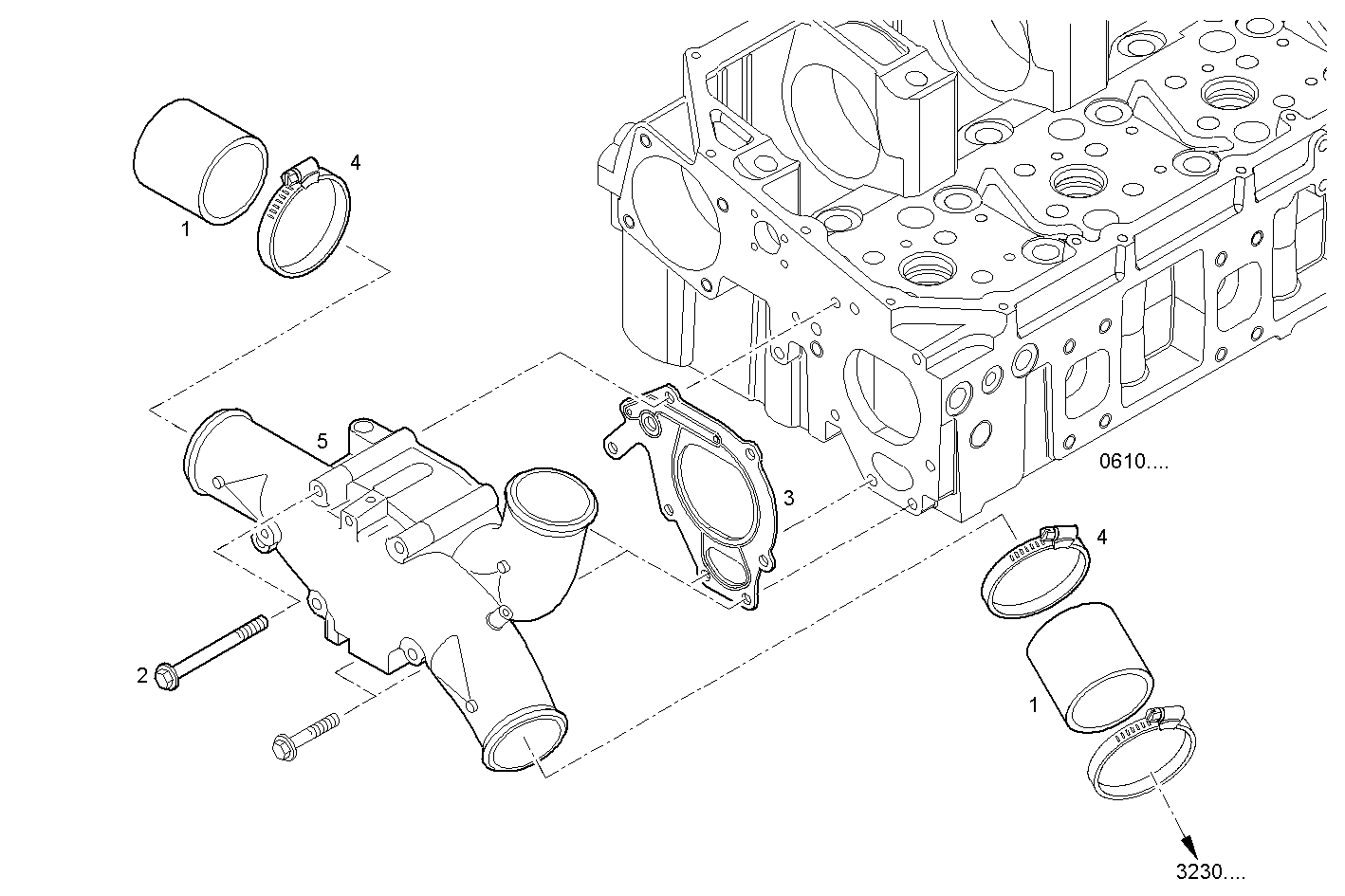

3239.009 HEAD WATER EXIT PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 99480479 | WATER HOSE |
| 2 | 16598425 | HEXAGON BOLT M8X110 MM |
| 3 | 500362150 | FLAT ENGINE GASKET |
| 4 | 17765091 | CLIP Ø60/80 MM |
| 5 | 500324174 | WATER PIPE |
