C10ENTX20.00A802

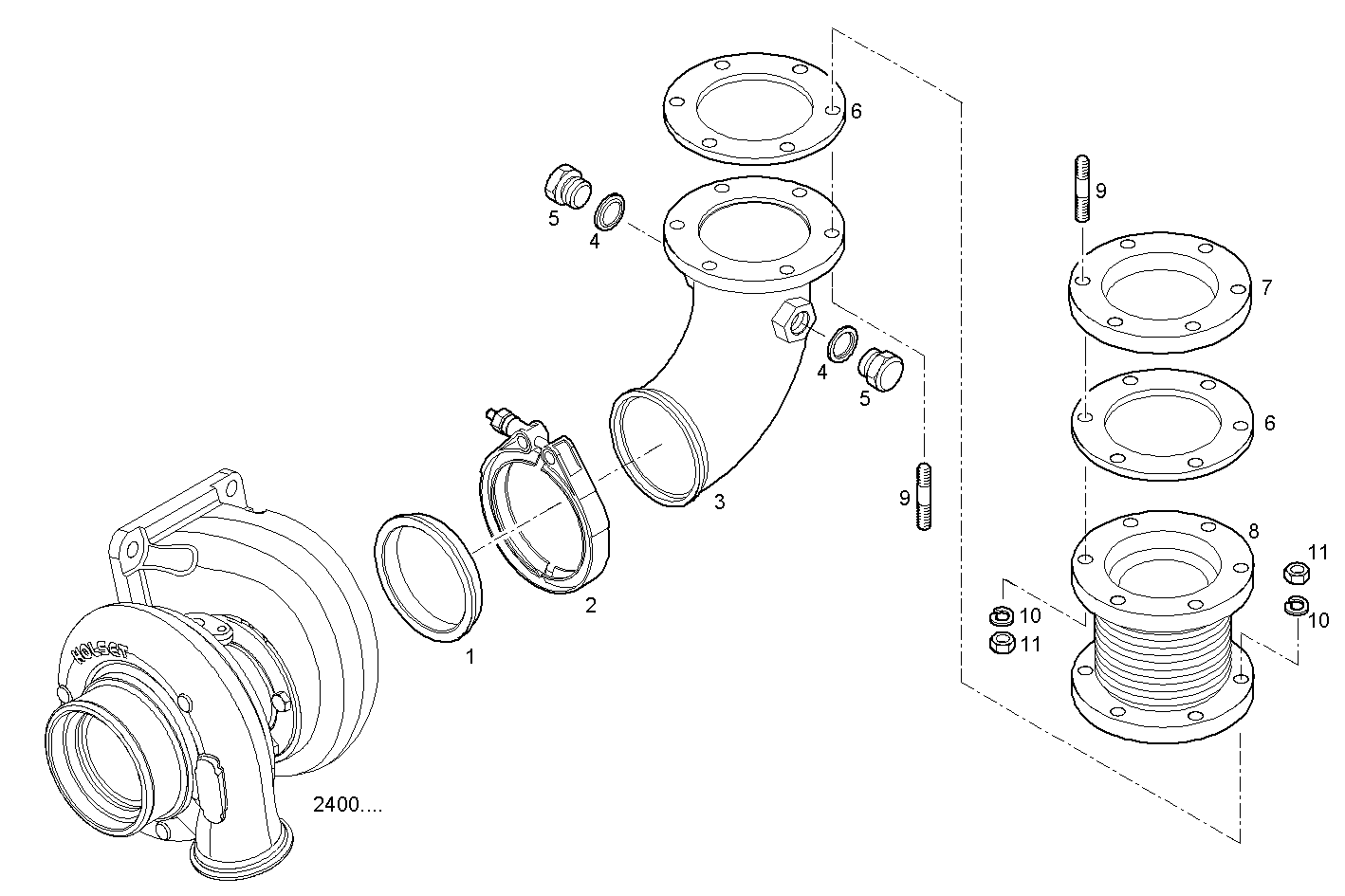

A40030517 EXHAUST PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8042724 | FLANGE |
| 2 | 500339542 | PIPE CLIP |
| 3 | 8042773 | EXHAUST ELBOW |
| 4 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 5 | 16992211 | THREADED PLUG M12X1,5 |
| 6 | 8009600 | GASKET |
| 7 | 8103591 | FLANGE |
| 8 | 8024880 | EXHAUST BELLOWS |
| 9 | 16731234 | STUD M10X1,5X25 |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 17038131 | HEXAGON NUT M10 |
