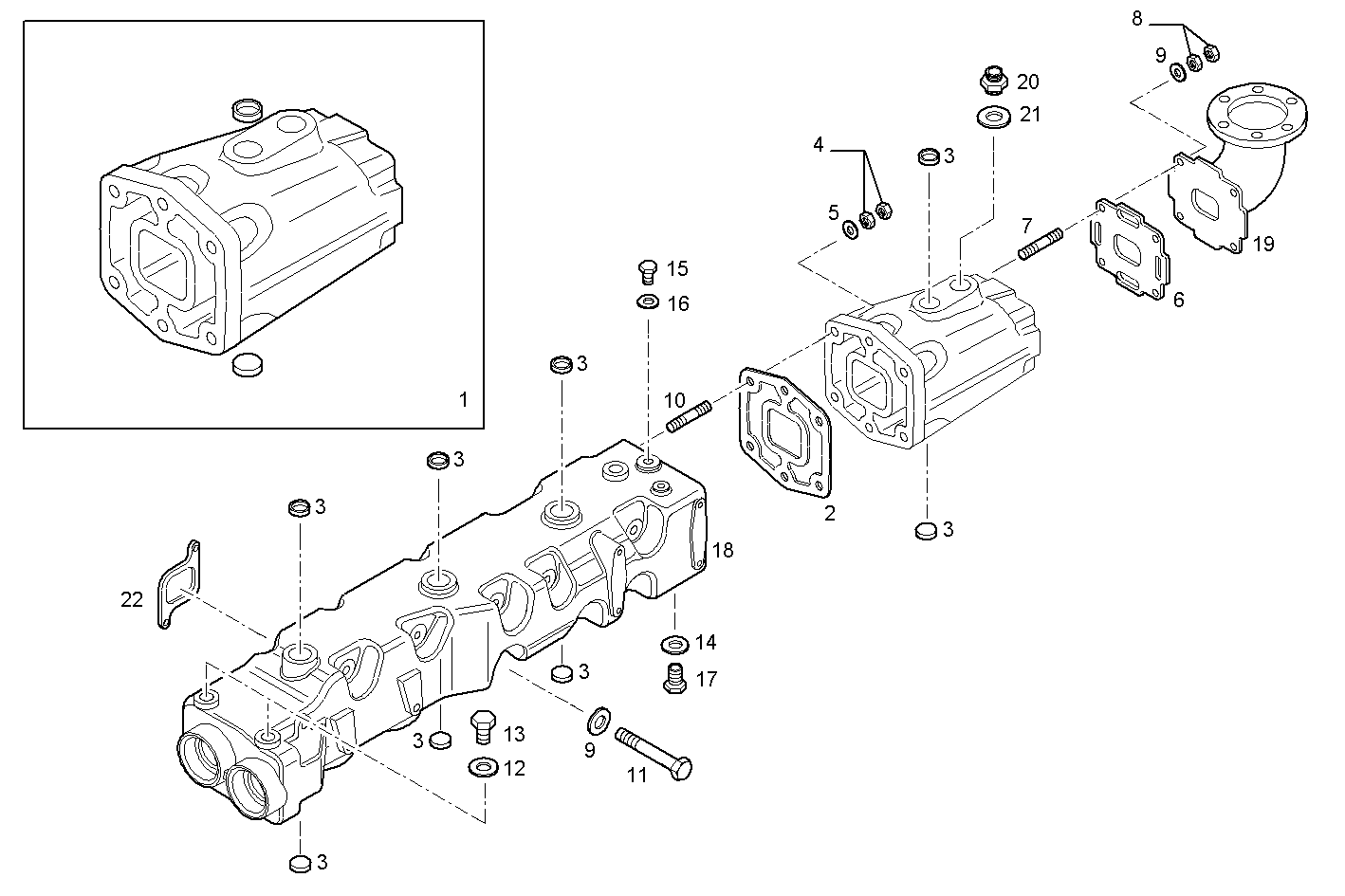

| Item |
Part number |
Description |
|
1 |
8038631 |
MARINE EXHAUST PIPE ASSY |
|
2 |
8035875 |
EXH. MANIFOLD GKT |
|
3 |
16990870 |
LOCK PLUG Ø28 MM |
|
4 |
17038425 |
HEXAGON NUT M12 (8) |
|
5 |
17090974 |
SPRING WASHER Ø12X24 MM |
|
6 |
8027510 |
FLAT ENGINE GASKET |
|
7 |
16748834 |
STUD |
|
8 |
17042631 |
NUT M10X1,5 (10) |
|
9 |
17090274 |
WASHER Ø10X20 MM |
|
10 |
16733624 |
STUD |
|
11 |
16629234 |
SCREW M10X1,5X150 |
|
12 |
99489022 |
SEAL GASKET Ø22X30 MM SP=1,5 MM |
|
13 |
16992640 |
PLUG M22X1,5 |
|
14 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
15 |
16992240 |
THREADED PLUG M12X1,5 |
|
16 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
17 |
16992340 |
THREADED PLUG M14X1,5 |
|
18 |
8037395 |
COOLED EXHAUST MANIF. ASSY |
|
19 |
8043851 |
MARINE EXHAUST PIPE |
|
20 |
8044923 |
THREADED UNION M30X2-M32X1.5 |
|
21 |
99469379 |
WASHER D=32X42X2 |
|
22 |
8035856 |
EXH. MANIFOLD GKT |
