C13ENAM19.00

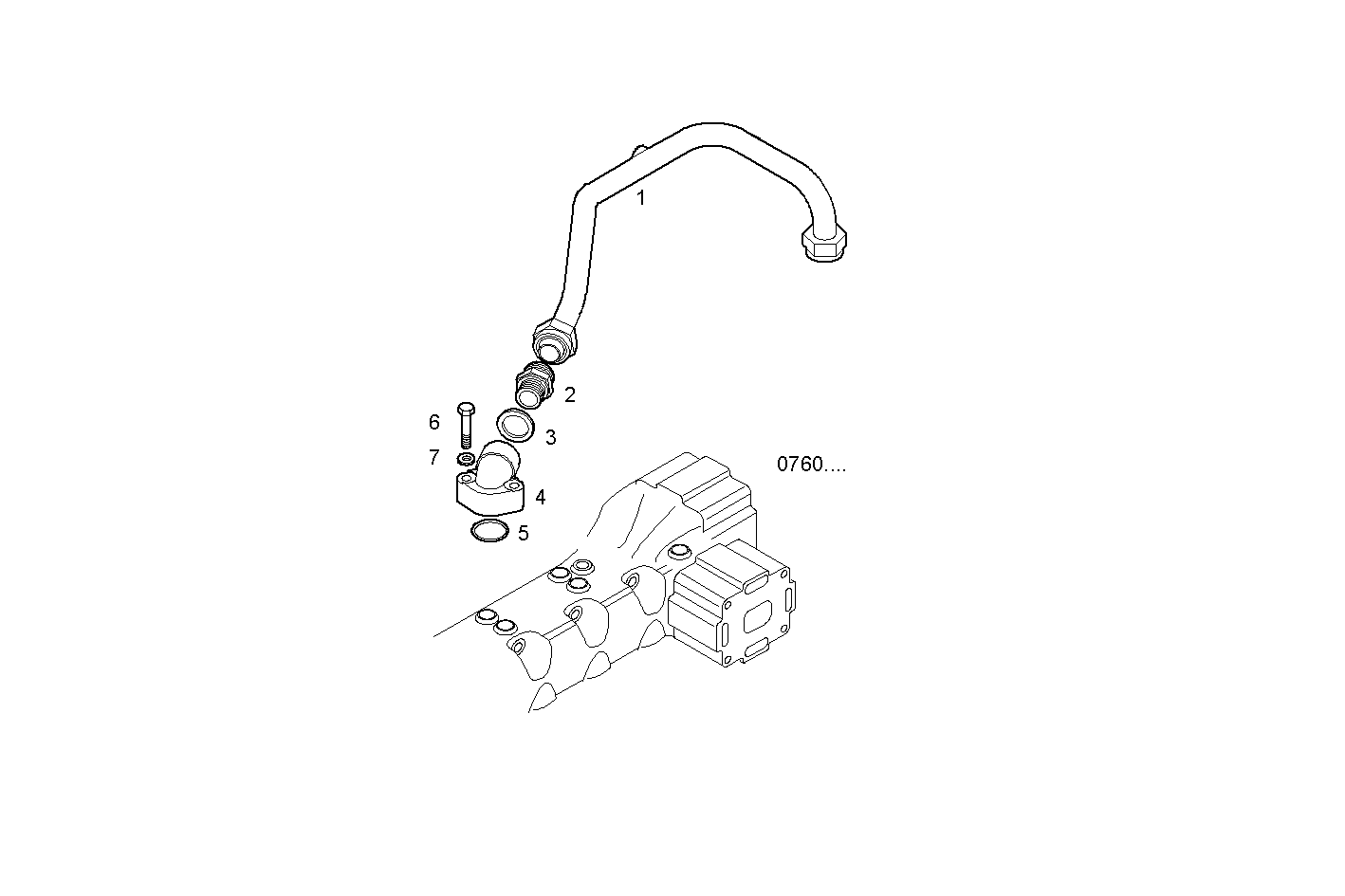

3248.020 TURBO WATER OUTLET PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8044934 | WATER PIPE |
| 2 | 8110943 | PIPE SOCKET M30X1,5/M25X1,5 |
| 3 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
| 4 | 8039949 | FLANGED SOCKET [UP TO 06/02/06] |
| 5 | 17282781 | O-RING Ø31,42 MM SP=2,62 MM |
| 6 | 16605924 | SCREW M8X40 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
