C13ENAM19.00

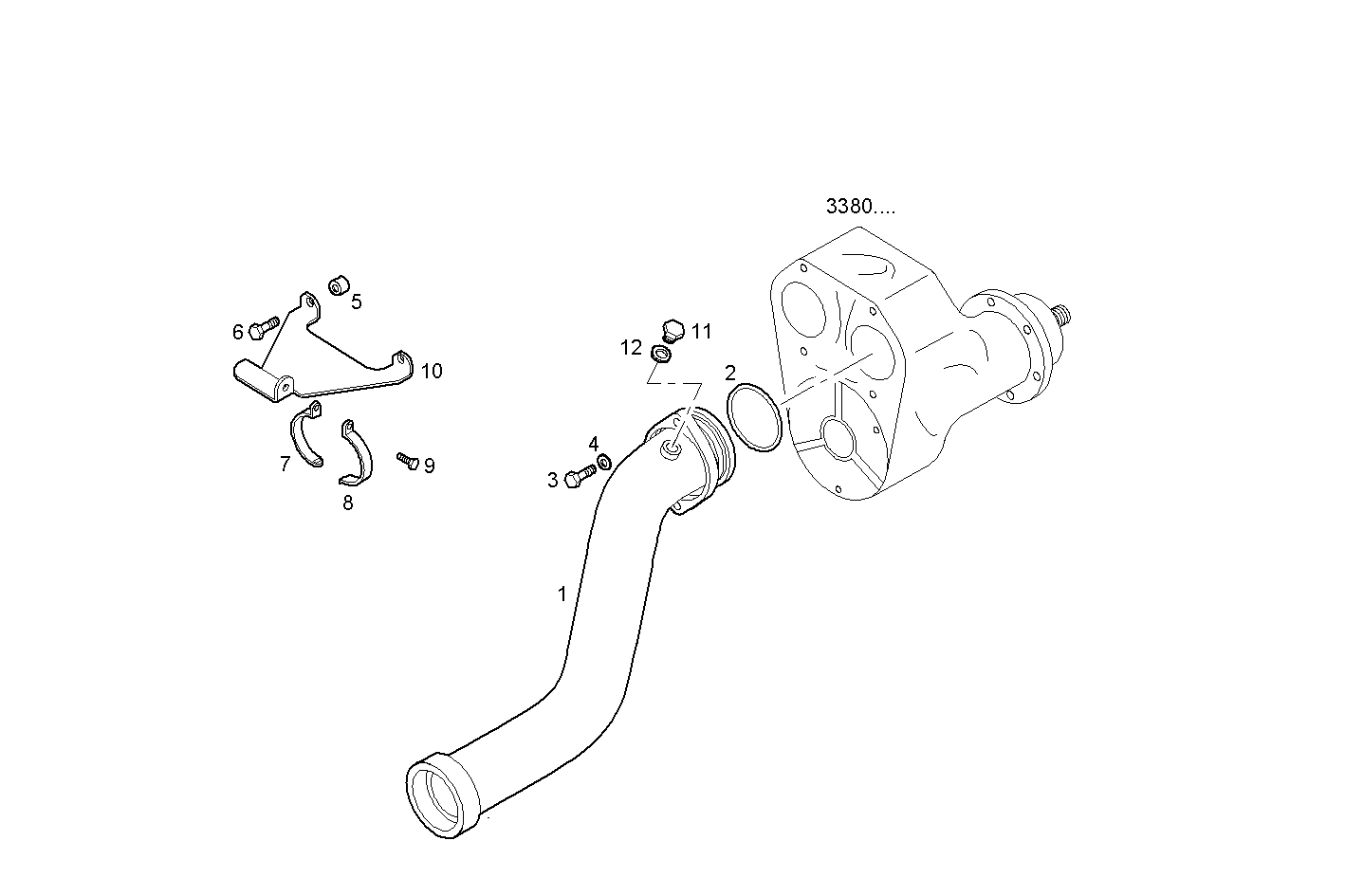

3390.087 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8043524 | SEA WATER PIPE |
| 2 | 17284981 | O-RING Ø66,34 MM SP=2,62 MM |
| 3 | 16673735 | HEXAGON BOLT M8X25 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 17816214 | SPACER Ø10X8,5X18 MM |
| 6 | 16691224 | CYLIND-HEAD SCREW M8X55 MM |
| 7 | 8017811 | CLAMP |
| 8 | 8017810 | CLAMP |
| 9 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 10 | 8045022 | RETAINER |
| 11 | 16992140 | PLUG M10X1 |
| 12 | 99489016 | SEAL GASKET Ø10X17 MM SP =1,5 |
