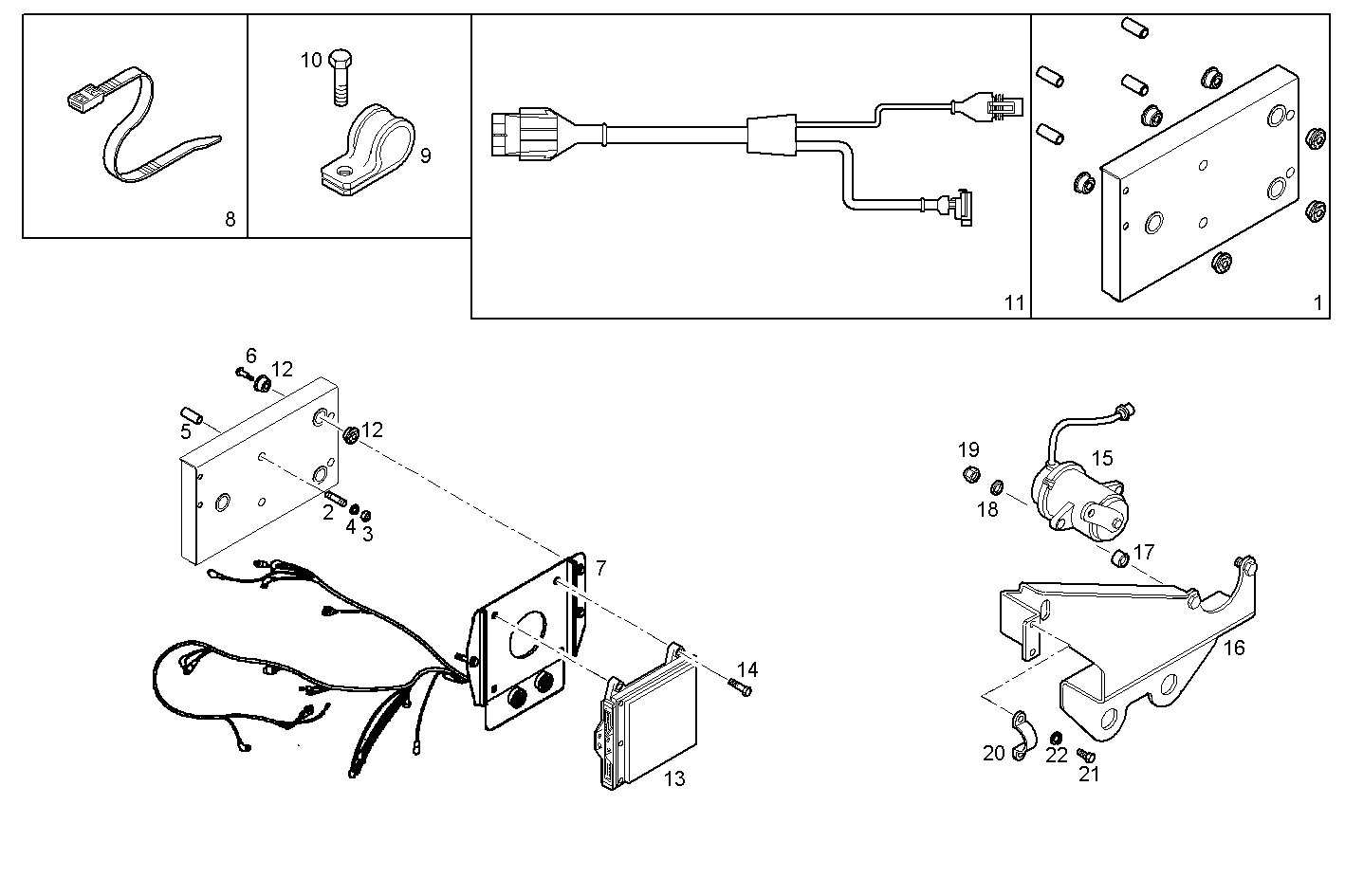

| Item |
Part number |
Description |
|
1 |
8033485 |
BRACKET ASSY |
|
2 |
16729824 |
STUD M8X45 MM |
|
3 |
17037921 |
HEXAGON NUT M8X1,25 |
|
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
5 |
17816314 |
SPACING BAR Ø8,5X18 MM SP=15 MM |
|
6 |
16586825 |
HEXAGON BOLT M8X1.25X45 MM |
|
7 |
8038053 |
ENGINE HARNESS |
|
8 |
14560187 |
CABLE STRAP |
|
9 |
17316890 |
PIPE CLIP |
|
10 |
16605324 |
SCREW M8X12 |
|
11 |
8040134 |
WIRE/CABLE |
|
12 |
98498817 |
DOWEL |
|
13 |
8093995 |
ELECTR.CONTR.UNIT E.C.U. |
|
14 |
16586725 |
HEXAGON BOLT M8X1.25X40 MM |
|
15 |
8030707 |
POTENTIOMETER |
|
16 |
8036696 |
RETAINER |
|
17 |
4753027 |
SPACER Ø12 MM |
|
18 |
17088474 |
WASHER Ø6X12 MM |
|
19 |
17787270 |
HEXAGON NUT M6 |
|
20 |
8033783 |
RETAINER |
|
21 |
16601924 |
HEXAGON BOLT M5X10 MM |
|
22 |
17800274 |
SPRING WASHER Ø5X11 MM |
