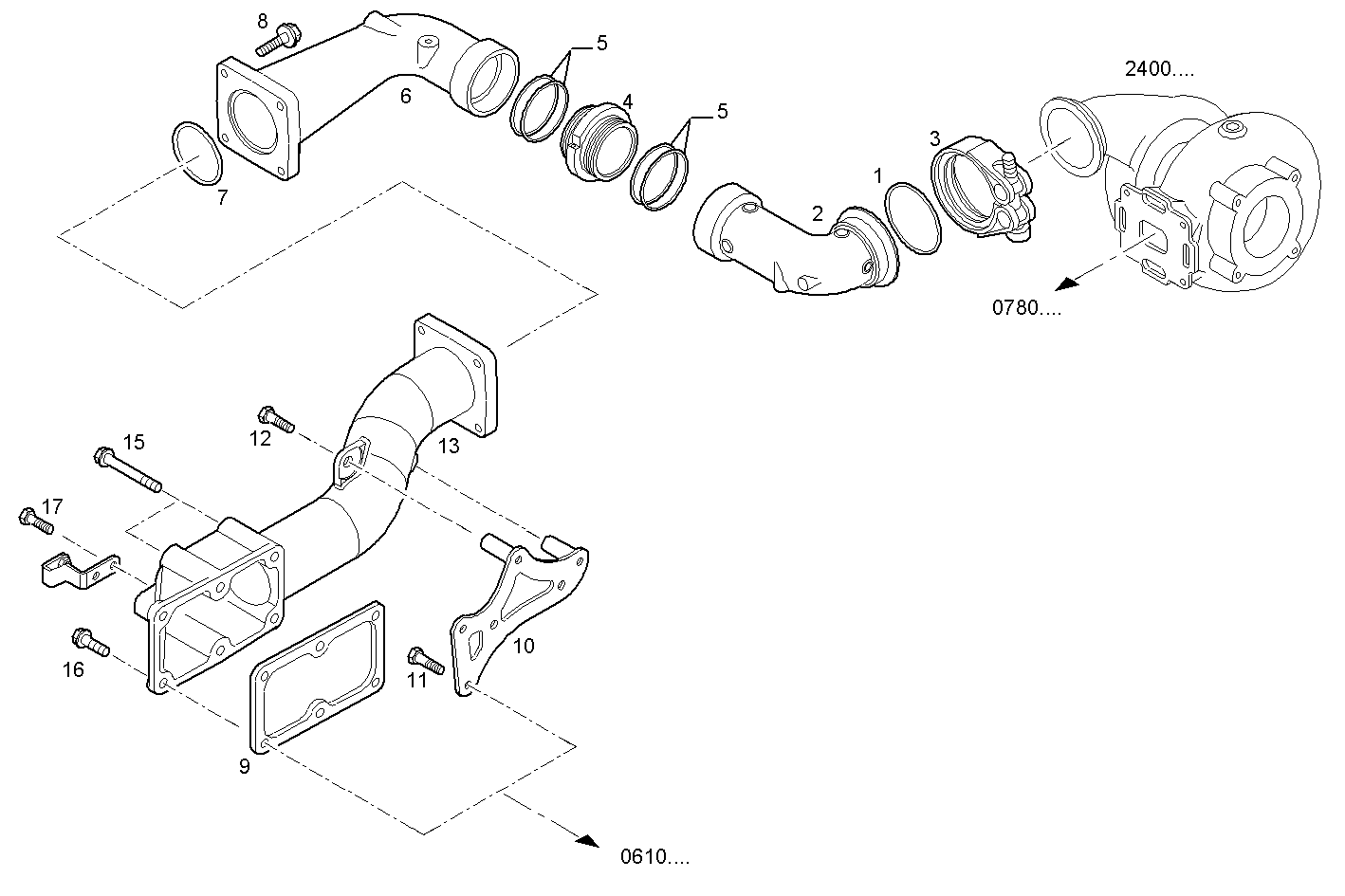

| Item |
Part number |
Description |
|
1 |
17285481 |
O-RING Ø75,87 MM SP=2,62 MM |
|
2 |
8042421 |
INTAKE ELBOW ASSY |
|
3 |
504073261 |
CLIP dia. 104 |
|
4 |
8009896 |
ADAPTER |
|
5 |
17290581 |
O-RING Ø72,63X3,53 MM |
|
6 |
8038089 |
AIR PIPE/DUCT ASSY |
|
7 |
17291481 |
O-RING Ø101,19 MM SP=3,53 |
|
8 |
16587425 |
HEXAGON BOLT M10X40 MM |
|
9 |
504026624 |
FLAT ENGINE GASKET |
|
10 |
8043535 |
FASTENING BRACKET |
|
11 |
16600224 |
HEXAGON BOLT M8X1,25X18 MM |
|
12 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
13 |
8043431 |
AIR PIPE/DUCT |
|
14 |
16587125 |
HEXAGON BOLT M10X25 MM |
|
15 |
16593125 |
HEXAGON BOLT M10X100 MM |
|
16 |
8043581 |
RETAINER |
|
17 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
