C13ENSM33.30

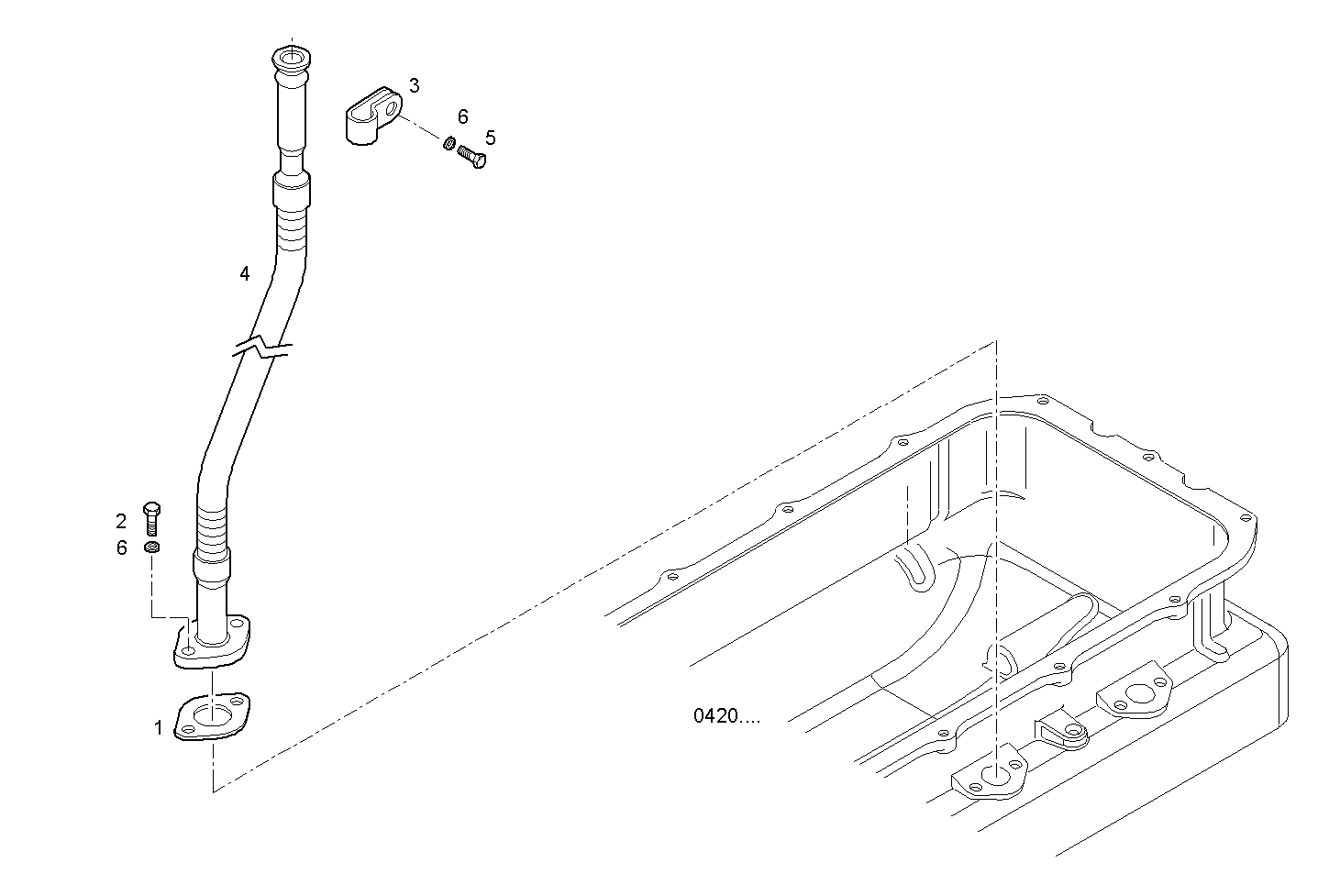

2712.005 OIL DIPSTICK PIPE
Item | Part number | Description |
---|---|---|
1 | 4863361 | GASKET |
2 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
3 | 8023543 | CLIP |
4 | 8030476 | OIL LEVEL TUBE |
5 | 16605524 | HEXAGON BOLT M8X20 MM |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
