C13ENSM33.30

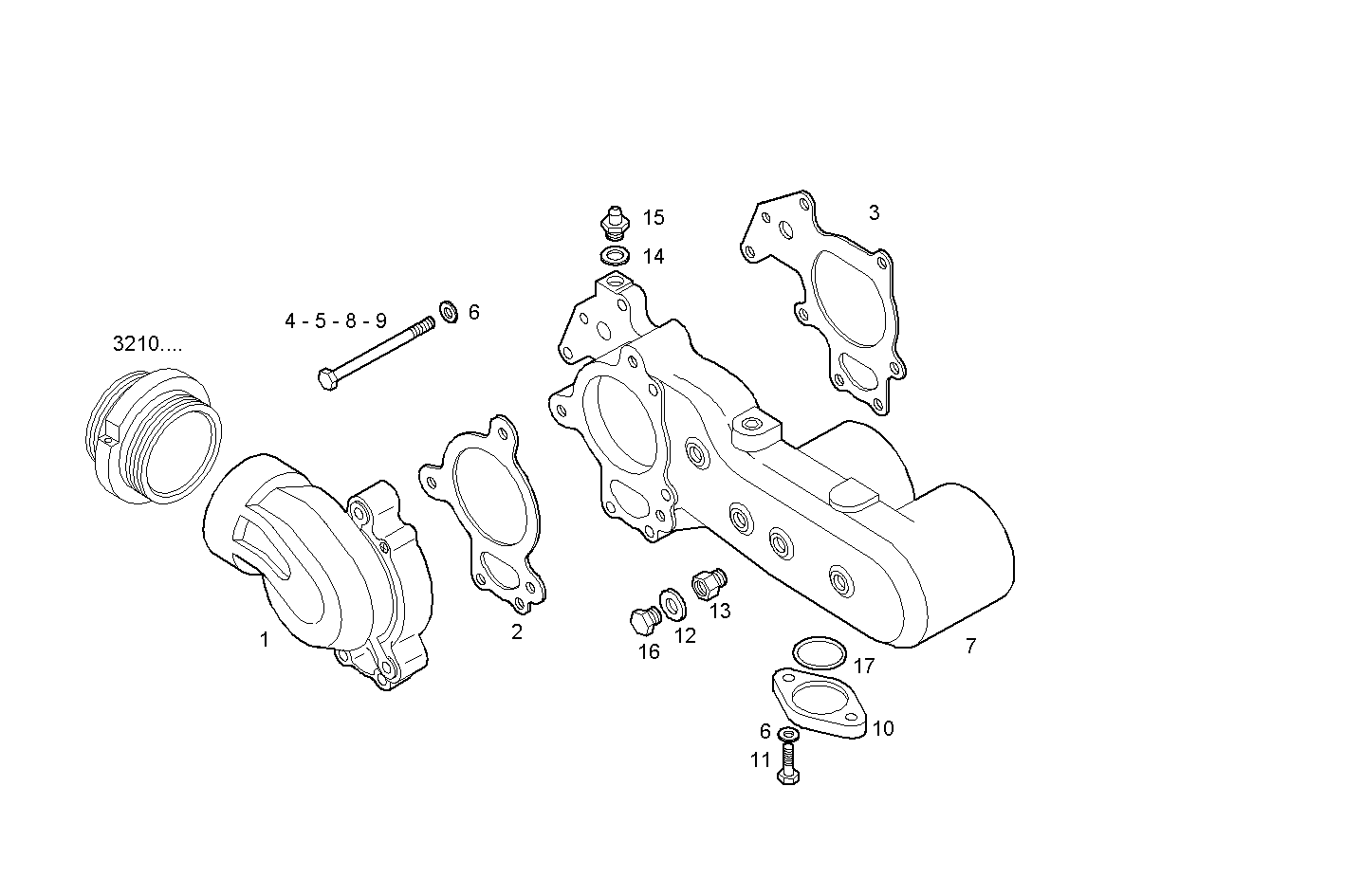

3260.024 TEMPERATURE REGULATOR

Iveco/FPT TEMPERATURE REGULATOR

Item Part number Description
1 8047117 THERMOSTAT
2 8032186 FLAT ENGINE GASKET
3 8032184 FLAT ENGINE GASKET
4 16606524 HEXAGON BOLT M8X70 MM
5 16606824 HEXAGON BOLT M8X100 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 8032716 WATER MANIFOLD ASSY
8 16607124 HEXAGON BOLT M8X1,25X170 MM
9 16607024 HEXAGON BOLT M8X120 MM
10 8040699 FLANGE
11 16606924 SCREW M8X110
12 99489016 SEAL GASKET Ø10X17 MM SP =1,5
13 8041871 THREADED UNION
14 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
15 500304562 BREATHER PLUG
16 16992111 THREADED PLUG M10X1
17 17289481 O-RING Ø37,69 MM SP=3,53 MM
