C13ENSM33.30

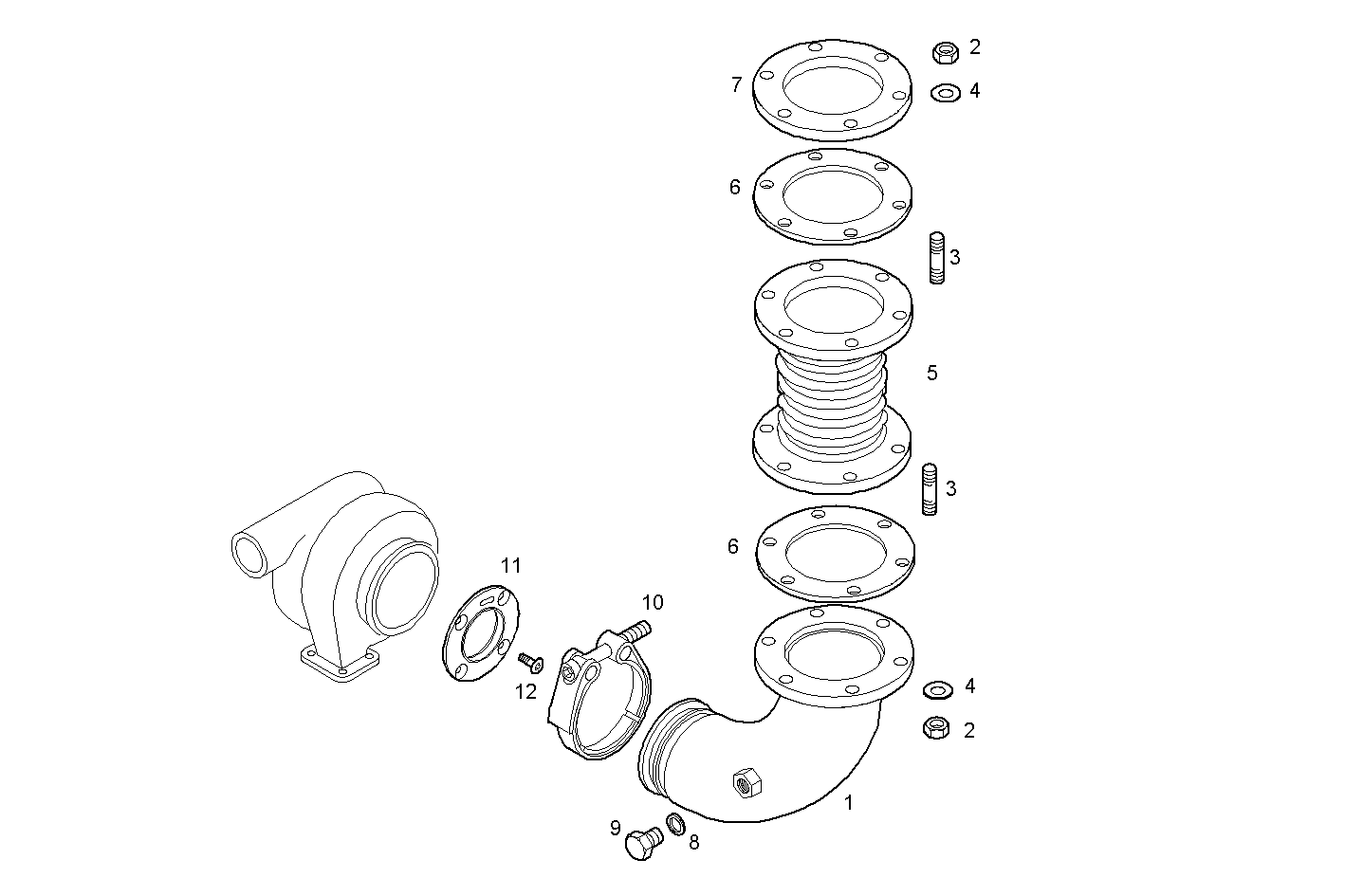

A40030510 EXHAUST PIPE
Item | Part number | Description |
---|---|---|
1 | 8032194 | EXHAUST ELBOW |
2 | 17038131 | HEXAGON NUT M10 |
3 | 16731234 | STUD M10X1,5X25 |
4 | 17090174 | SPRING WASHER Ø10X20 MM |
5 | 8016096 | EXHAUST BELLOWS |
6 | 8010072 | GASKET |
7 | 8022504 | FLANGE |
8 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
9 | 16992211 | THREADED PLUG M12X1,5 |
10 | 504064329 | CLIP |
11 | 8042164 | FLANGE |
12 | 17345124 | C'SUNK SCREW M10X25 |
