C13ENTD20.00

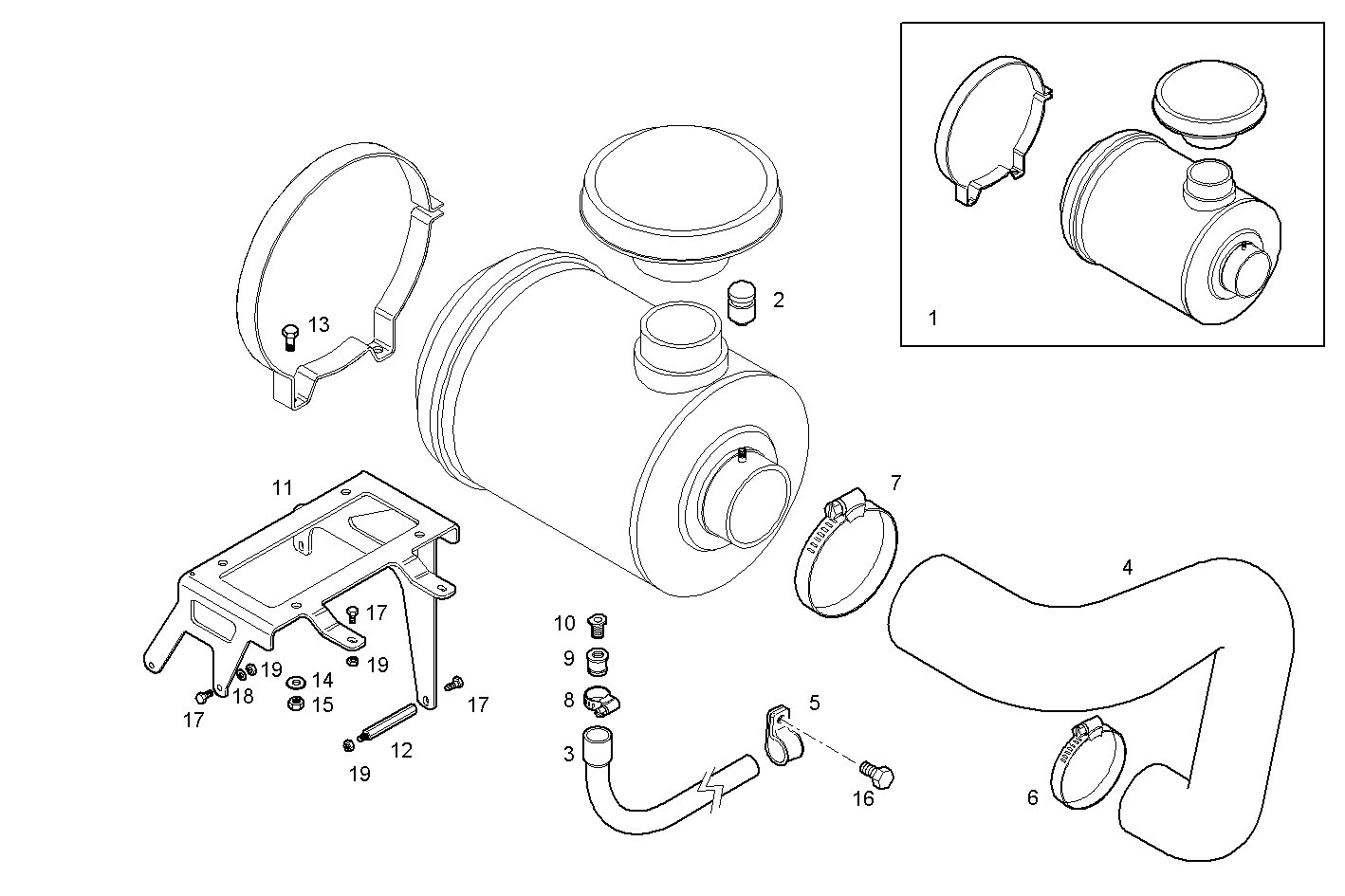

A21210528 AIR CLEANER - metallic body [FROM 22/04/05] [FROM 22/04/05]
Item | Part number | Description |
---|---|---|
1 | 8037875 | AIR CLEANER ASSY |
2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
3 | 8042013 | RUBBER SLEEVE |
4 | 8041911 | FILTER HOSE |
5 | 17311301 | FASTENING BRACKET |
6 | 17765892 | HOSE CLIP Ø140/160 MM |
7 | 17766393 | CLIP |
8 | 17764694 | CLIP Ø25/40 MM |
9 | 8015133 | PIPE SOCKET |
10 | 8015315 | PIPE SOCKET |
11 | 8041909 | FILTER SUPPORT |
12 | 8041916 | SPACING BAR |
13 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
14 | 17091074 | WASHER Ø12X24X2,8 MM |
15 | 17038425 | HEXAGON NUT M12 (8) |
16 | 16603425 | HEXAGON BOLT M6X10 |
17 | 16605424 | SCREW M8X16 MM (8.8) |
18 | 16605614 | WASHER |
19 | 17037925 | HEXAGON NUT M8X1,25 |
