C13ENTD20.00A800
8600.124 ACCESSORIES

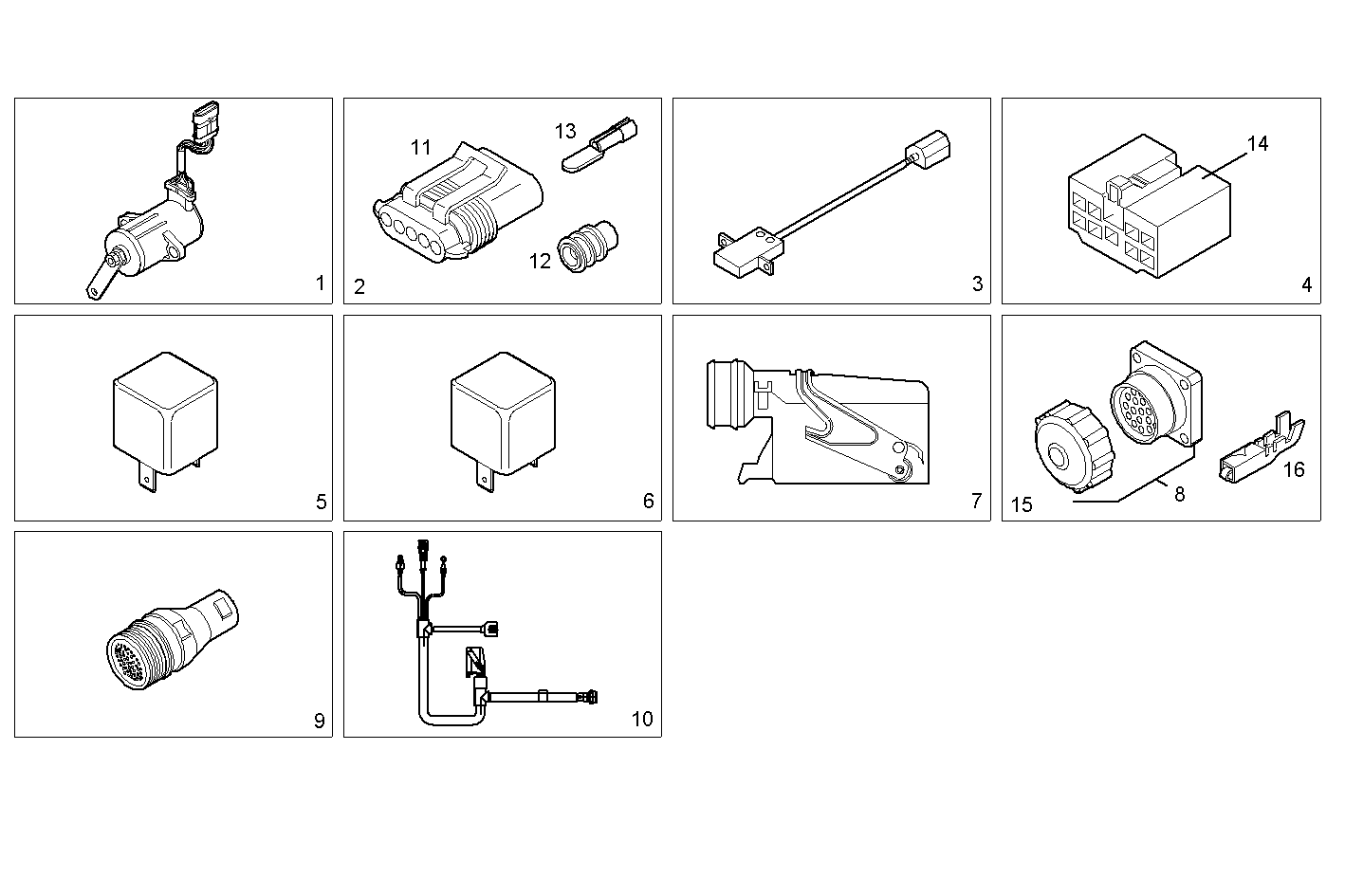

| Item | Part number | Description |
|---|---|---|
| 1 | 500388702 | TRANSMITTER acceler.pedal position |
| 2 | 8031313 | WIRE CONNECTOR assy 5 pin female |
| 3 | 99464594 | SWITCH for "Blink code" |
| 4 | 8031431 | WIRE CONNECTOR assy 5 pin female |
| 5 | 41040442 | RELAY |
| 6 | 500362250 | RELAY 50A 24V |
| 7 | 8029414 | WIRE CONNECTOR ASSY |
| 8 | 8034787 | WIRE CONNECTOR ASSY |
| 9 | 8036545 | WIRE CONNECTOR |
| 10 | 8036518 | ENGINE HARNESS |
| 11 | 12332087 | WIRE CONNECTOR |
| 12 | 12332885 | GASKET |
| 13 | 12331654 | TERMINAL |
| 14 | 12267380 | CONNECTION |
| 15 | 8033302 | CAP |
| 16 | 99462549 | TERMINAL |
