C13ENTD20.20

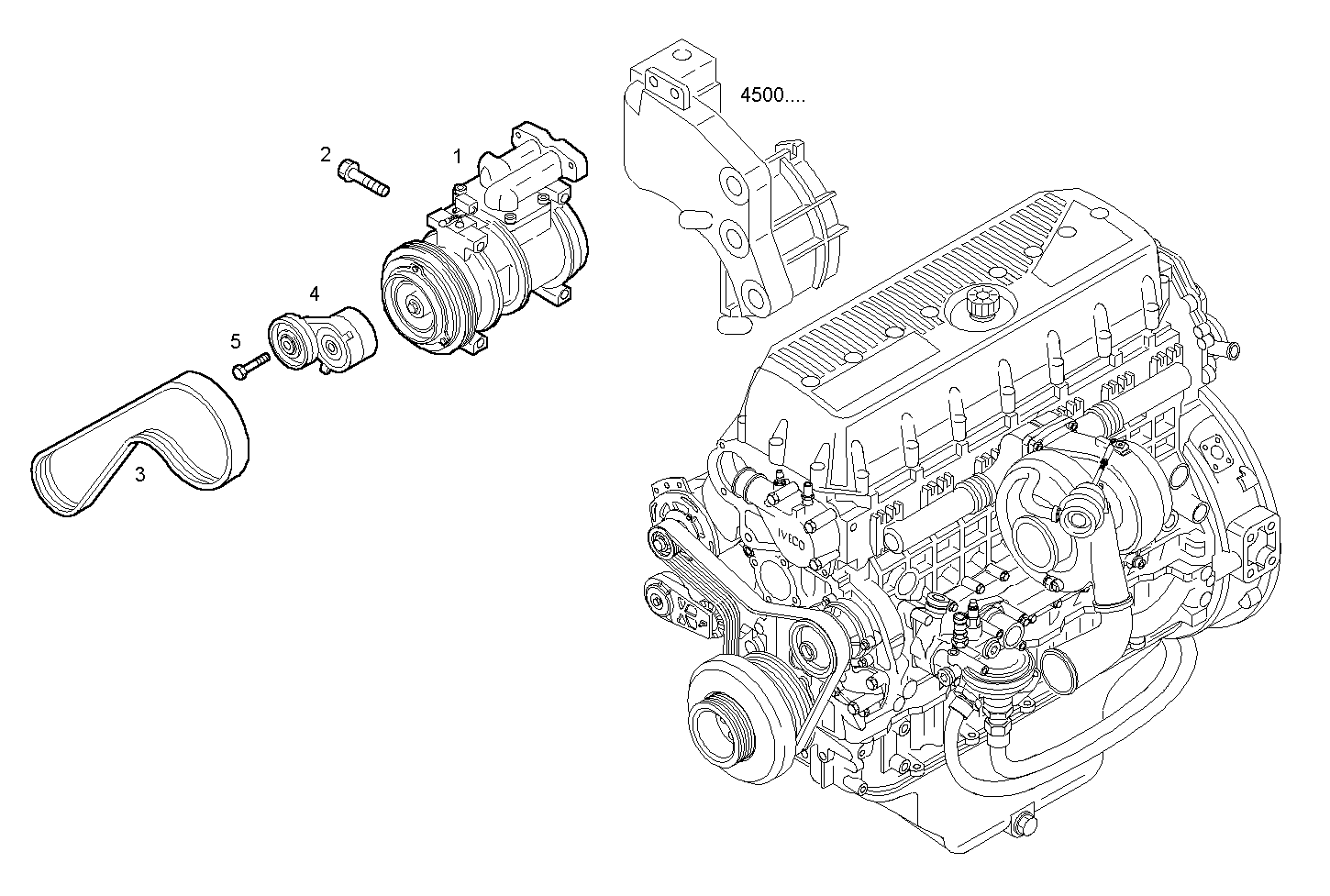

A81000507 COMPRESSOR AIR CONDITIONING - 24V
Item | Part number | Description |
---|---|---|
1 | 99488569 | AIR COND.COMPRESS. ASSY |
2 | 16598224 | HEXAGON BOLT M8X90 MM |
3 | 504020489 | BELT |
4 | 500350419 | BELT TENSIONER |
5 | 16592424 | HEXAGON BOLT M8X65 MM |
