C13ENTI20.00

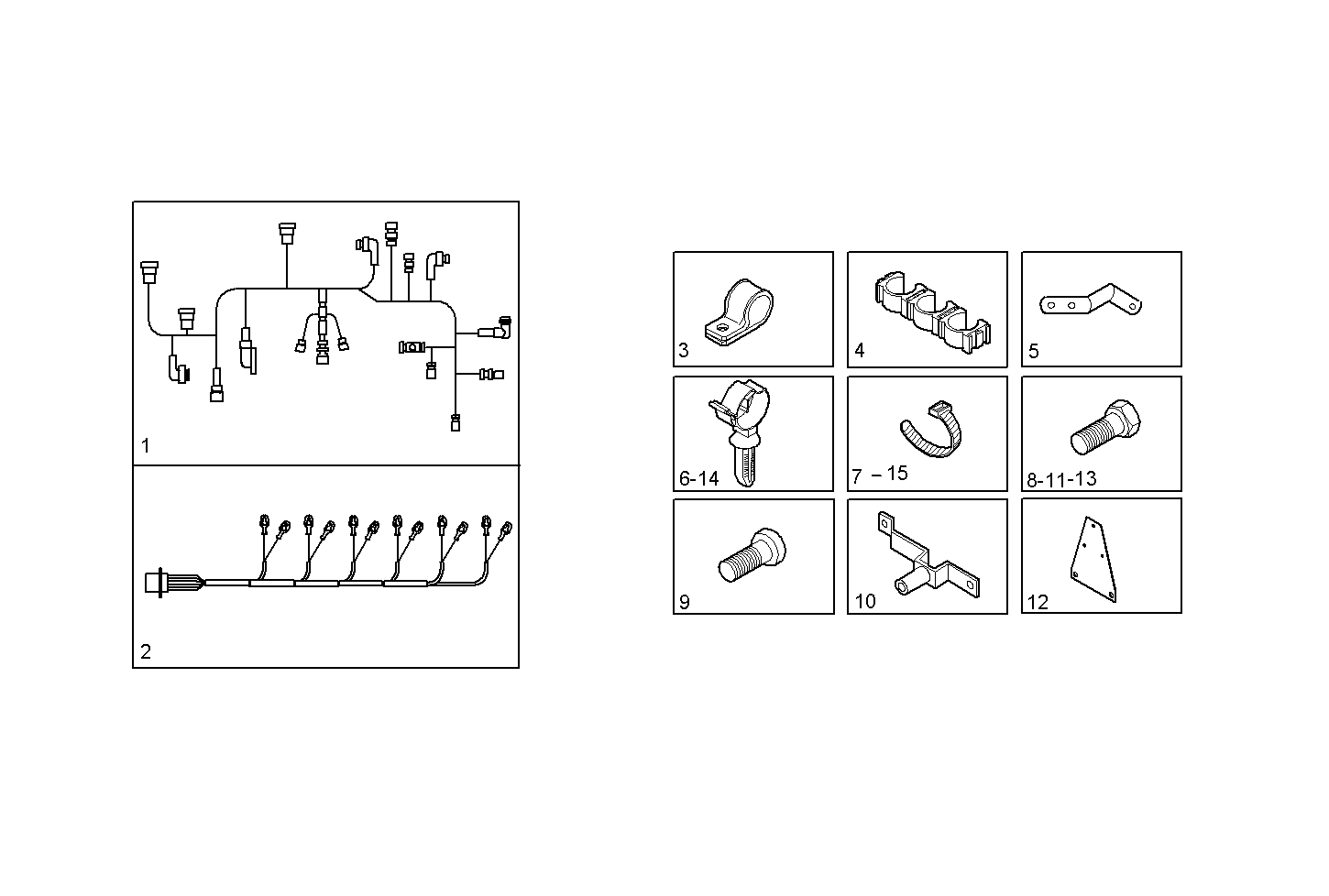

1730.024 ENGINE CABLE
Item | Part number | Description |
---|---|---|
1 | 504092860 | ENGINE HARNESS ASSY |
2 | 500339303 | WIRE/CABLE FOR INJECTORS |
3 | 10450990 | PIPE CLIP |
4 | 500320256 | RETAINER |
5 | 500387097 | YOKE |
6 | 504000061 | CLIP |
7 | 42099097 | CABLE STRAP |
8 | 16592225 | HEXAGON BOLT M8X55 MM |
9 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
10 | 500371778 | FASTENING BRACKET |
11 | 16596924 | HEXAGON BOLT M6X10 MM |
12 | 504067009 | RETAINER |
13 | 16597925 | HEXAGON BOLT M8X14 MM |
14 | 504000063 | CLIP |
15 | 504023286 | CABLE STRAP |
