C13ENTI20.00A100

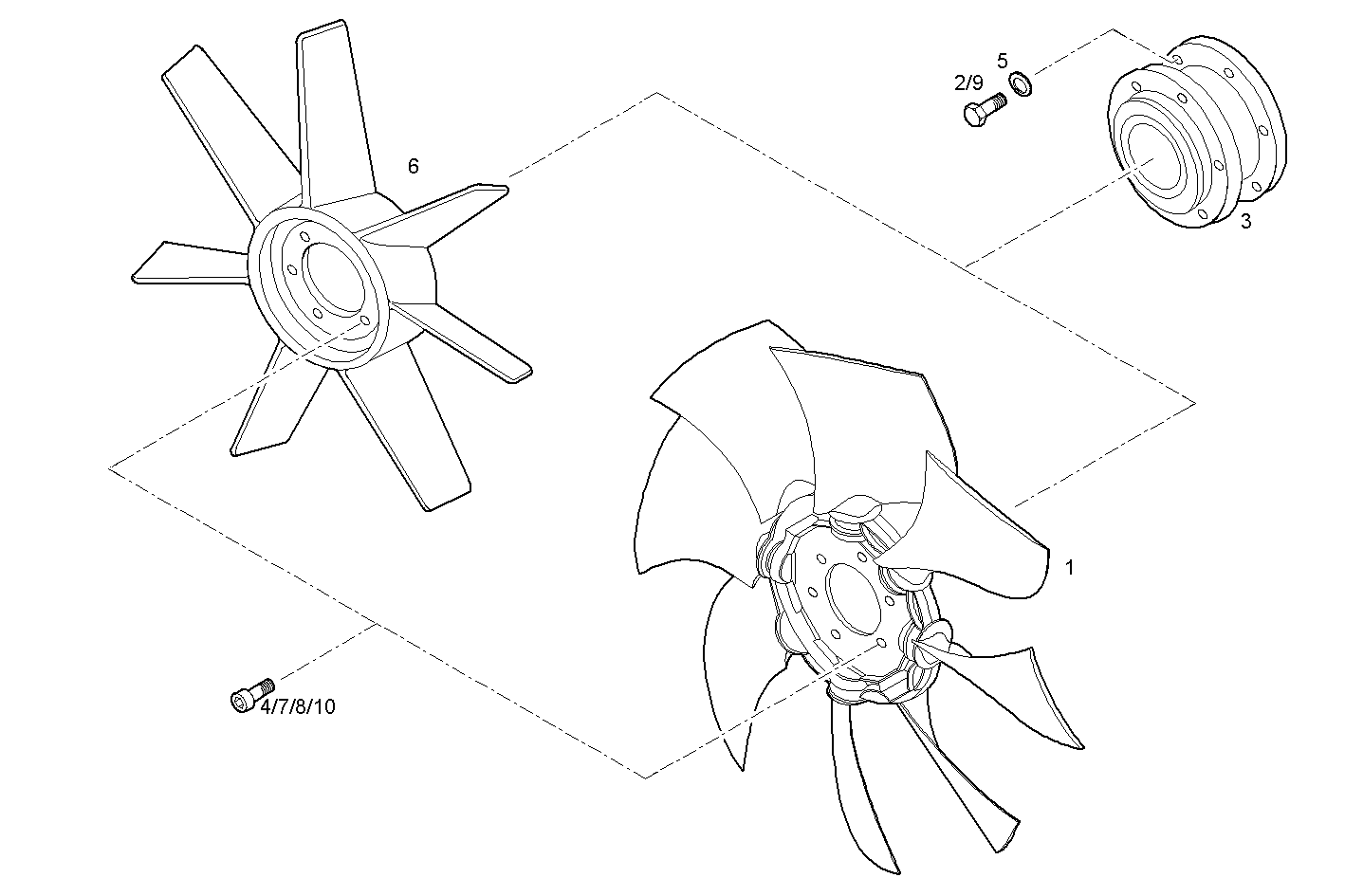

A08010504 PUSHER FAN
Item | Part number | Description |
---|---|---|
1 | 8041461 | FAN EIGHT BLADES |
2 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
3 | 8037429 | HUB |
4 | 504003975 | CYLIND-HEAD SCREW M8X1,25X20 |
5 | 17096824 | WASHER Ø8,40X15 MM |
6 | 8021735 | FAN DIA 820 |
7 | 500355362 | CYLIND-HEAD SCREW M8X30 MM |
8 | 504010369 | CYLIND-HEAD SCREW M8X40 MM [FROM 05-2005] |
9 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
