C13ENTI20.00A100

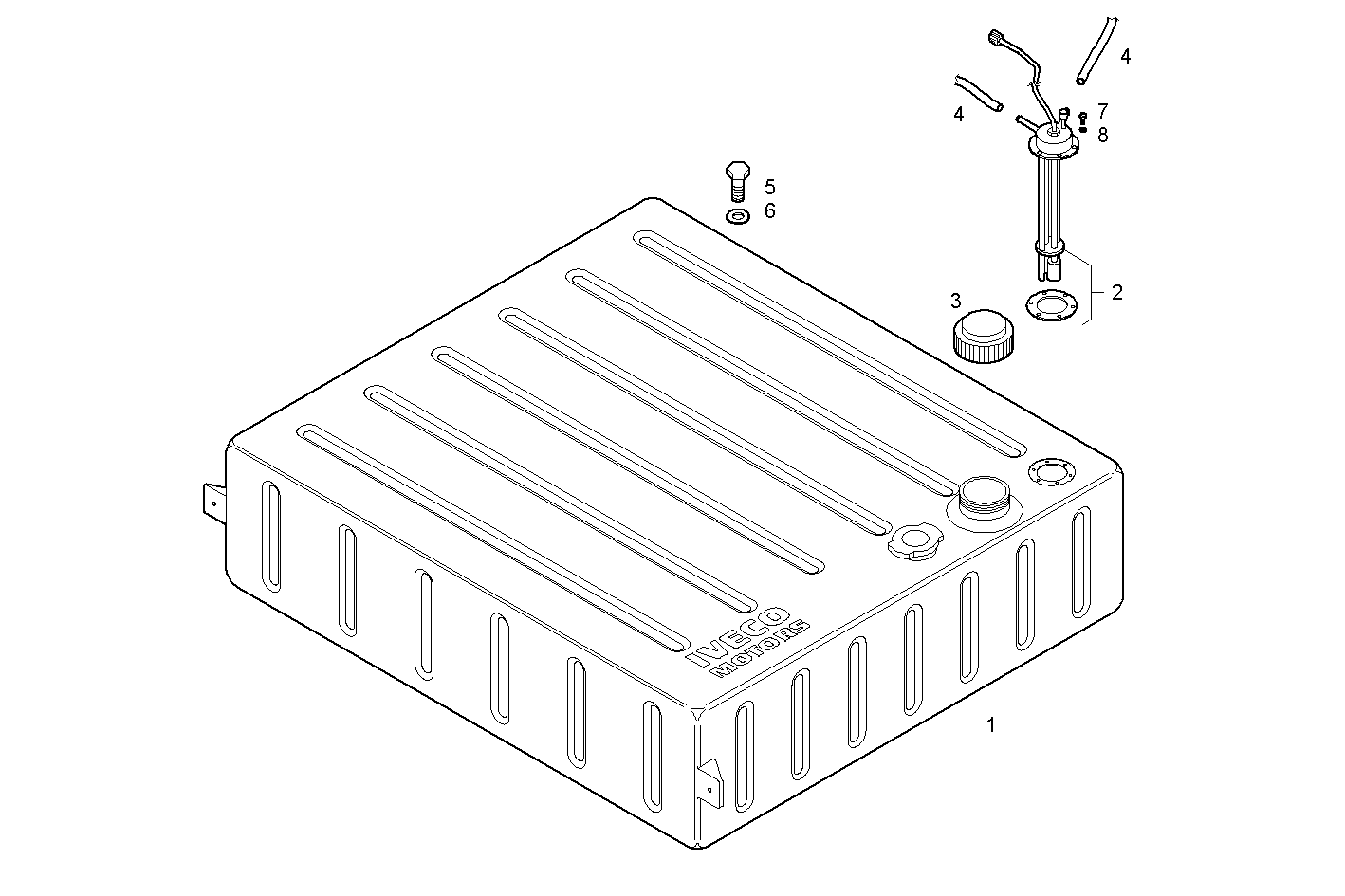

A29140501 FUEL TANK
Item | Part number | Description |
---|---|---|
1 | 8040848 | TANK |
2 | 503111791 | CONTROL ASSEMBLY ASSY |
3 | 99456723 | FUEL TANK PLUG |
4 | 19056687 | RUBBER HOSE Ø7,5 MM |
5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
7 | 16687824 | CYLIND-HEAD SCREW |
8 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
