C13ENTI20.00A100

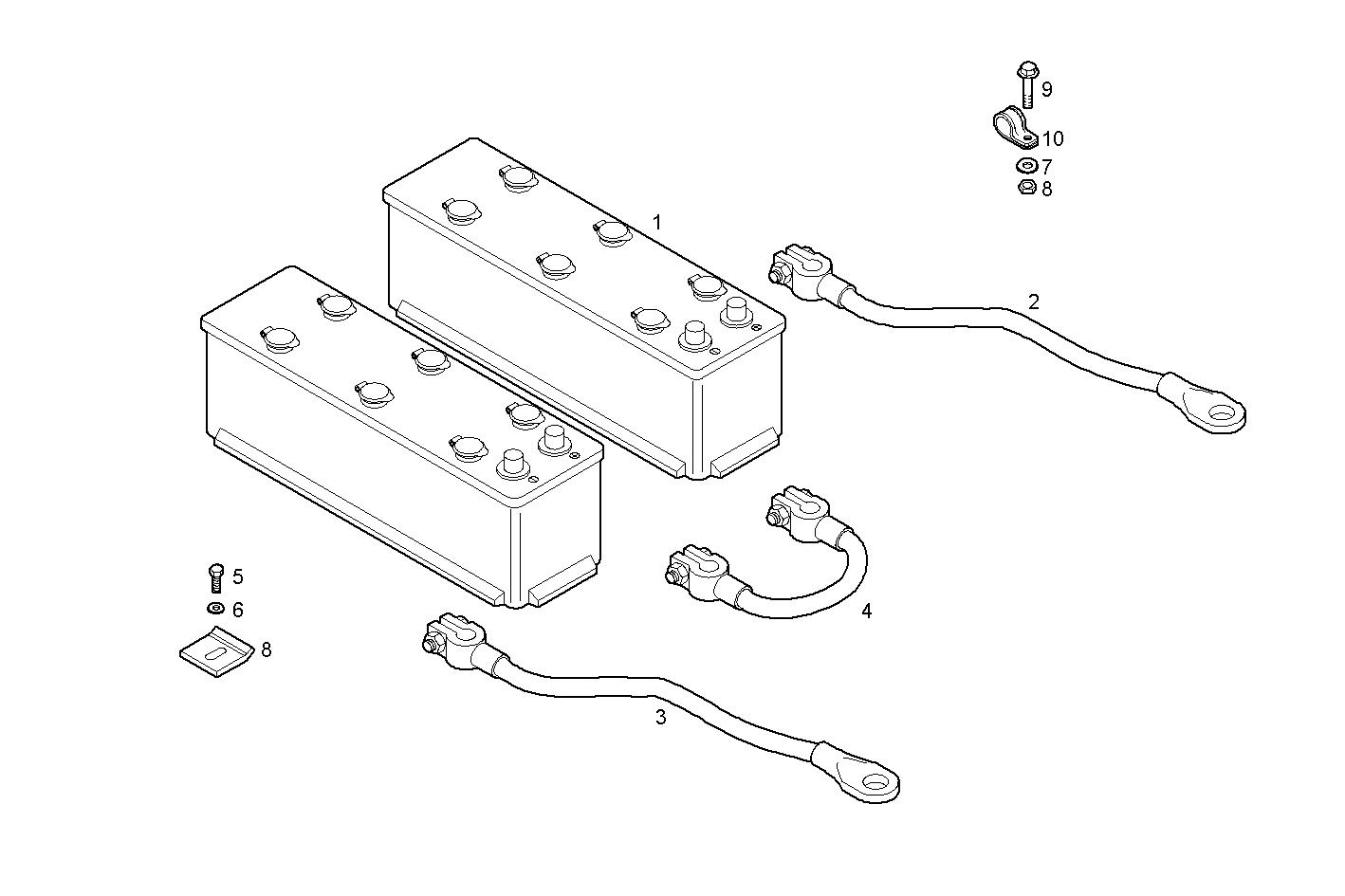

A30040502 STARTER BATTERY
| Item | Part number | Description |
|---|---|---|
| 1 | 8024131 | BATTERY |
| 2 | 503112807 | WIRE/CABLE - |
| 3 | 503112806 | WIRE/CABLE + |
| 4 | 503112808 | WIRE/CABLE |
| 5 | 16607434 | HEXAGON BOLT M10X16 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 8 | 8024305 | RETAINER |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 16603734 | HEXAGON BOLT M6X20 MM |
| 10 | 17315690 | FASTENING BRACKET |
