C13ENTI20.00A100

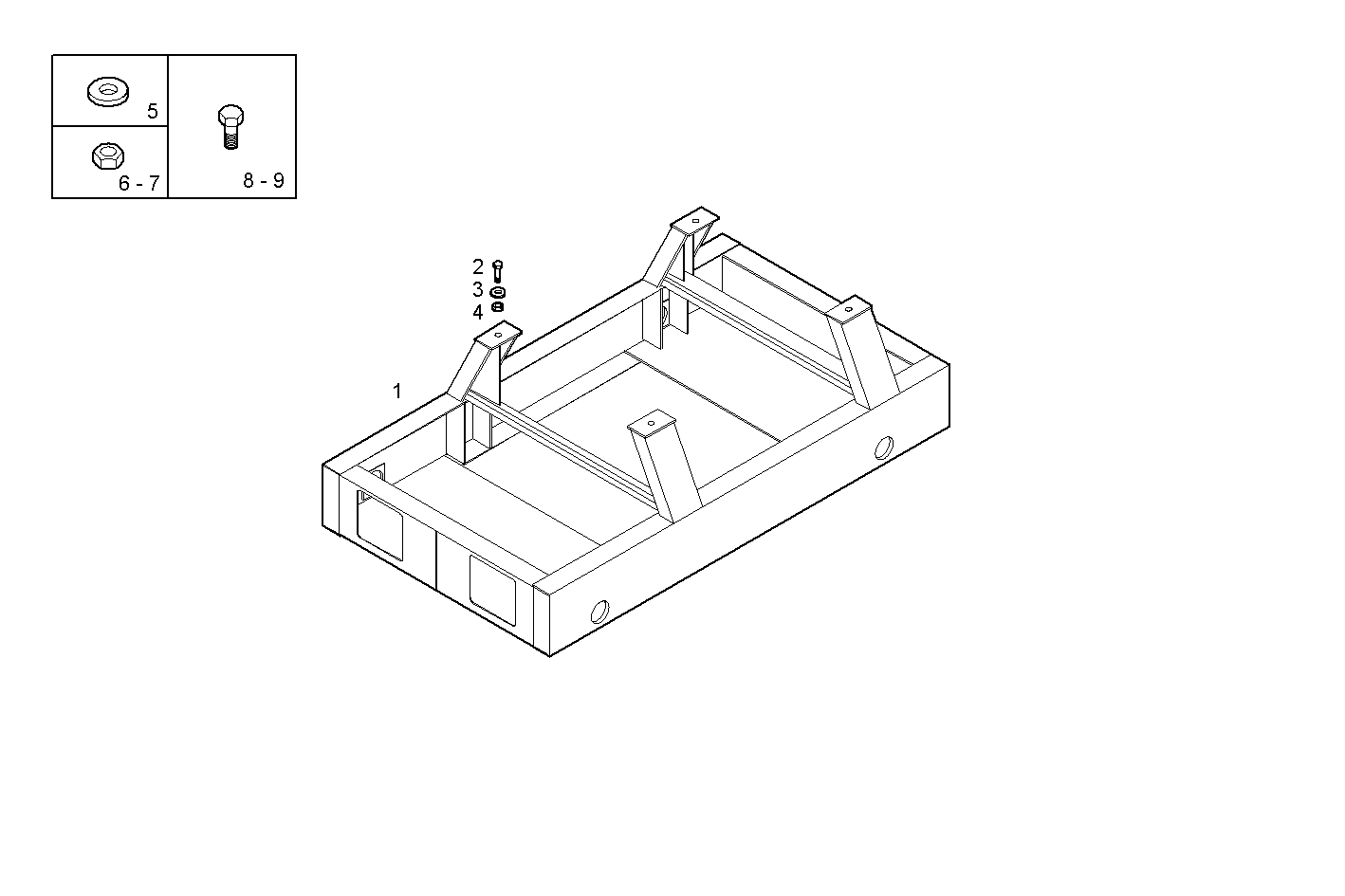

A36030502 SUBBASE FOR ENGINE CLUTCH
| Item | Part number | Description |
|---|---|---|
| 1 | 8040101 | SUBBSAE-SUPPORT FRAME |
| 2 | 16617224 | SCREW M20X50 |
| 3 | 17092774 | WASHER Ø20X38X4,6 MM |
| 4 | 17039321 | NUT M20X2,5 |
| 5 | 17093174 | WASHER Ø24X46X5,4 MM |
| 6 | 17039721 | HEXAGON NUT M24 |
| 7 | 17037925 | HEXAGON NUT M8X1,25 |
| 8 | 16620124 | SCREW M24X3X80 |
| 9 | 16619624 | SCREW M24x3x50 MM |
