C13ENTM50.10

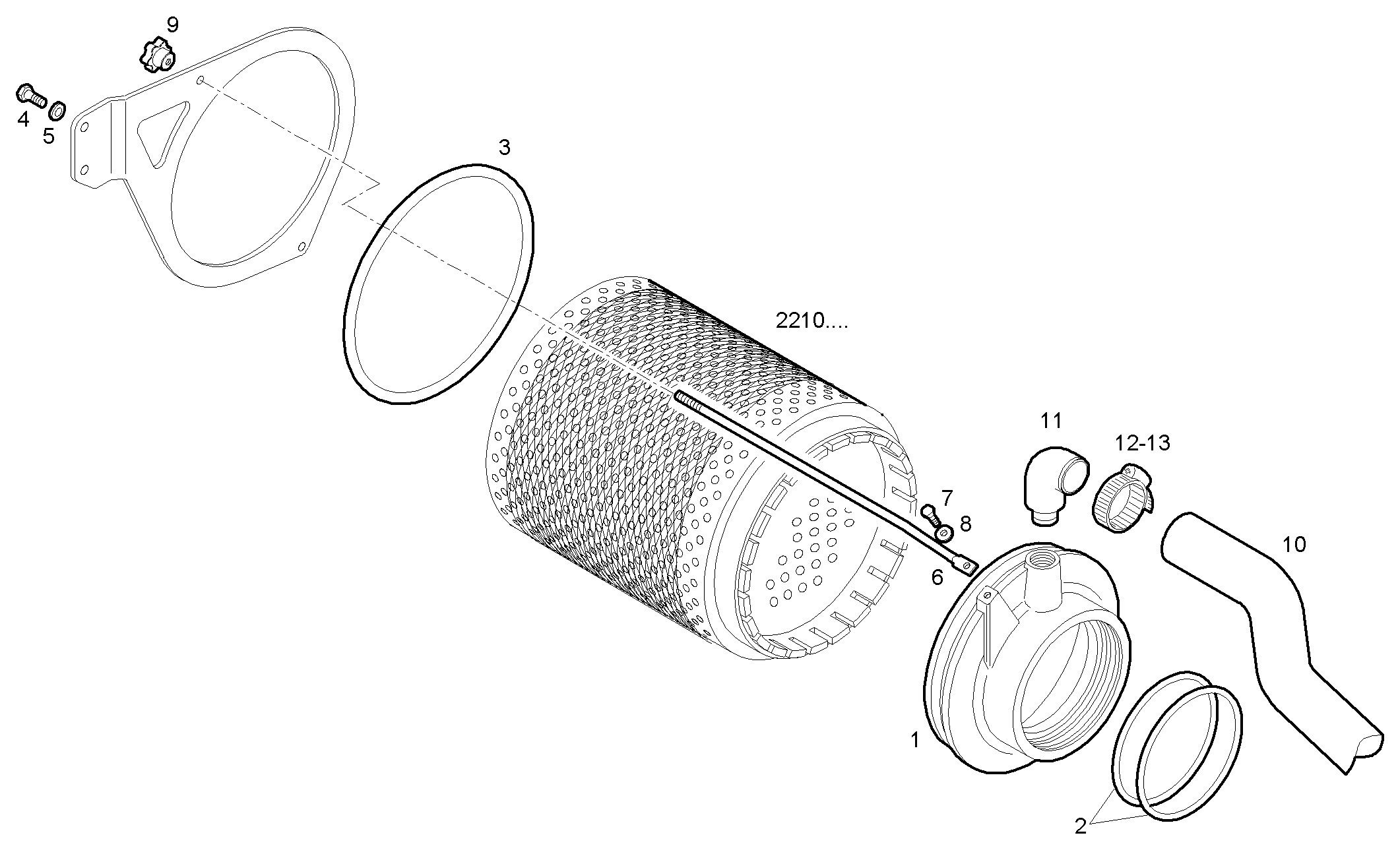

2210.065 AIR CLEANER
Item | Part number | Description |
---|---|---|
1 | 8042451 | AIR MANIFOLD |
2 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
3 | 8042413 | RUBBER GASKET |
4 | 16605524 | HEXAGON BOLT M8X20 MM |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 8040219 | STUD M6X1 |
7 | 16603677 | HEXAGON BOLT M6X16 MM |
8 | 17088674 | WASHER Ø6X15X1,5 MM |
9 | 8030569 | HANDWHEEL M6X1 |
10 | 8040558 | AIR HOSE |
11 | 4527314 | PIPE SOCKET |
12 | 17764593 | CLIP Ø20/32 MM |
13 | 17764693 | CLIP Ø25/40 MM |
