C13ENTM50.10

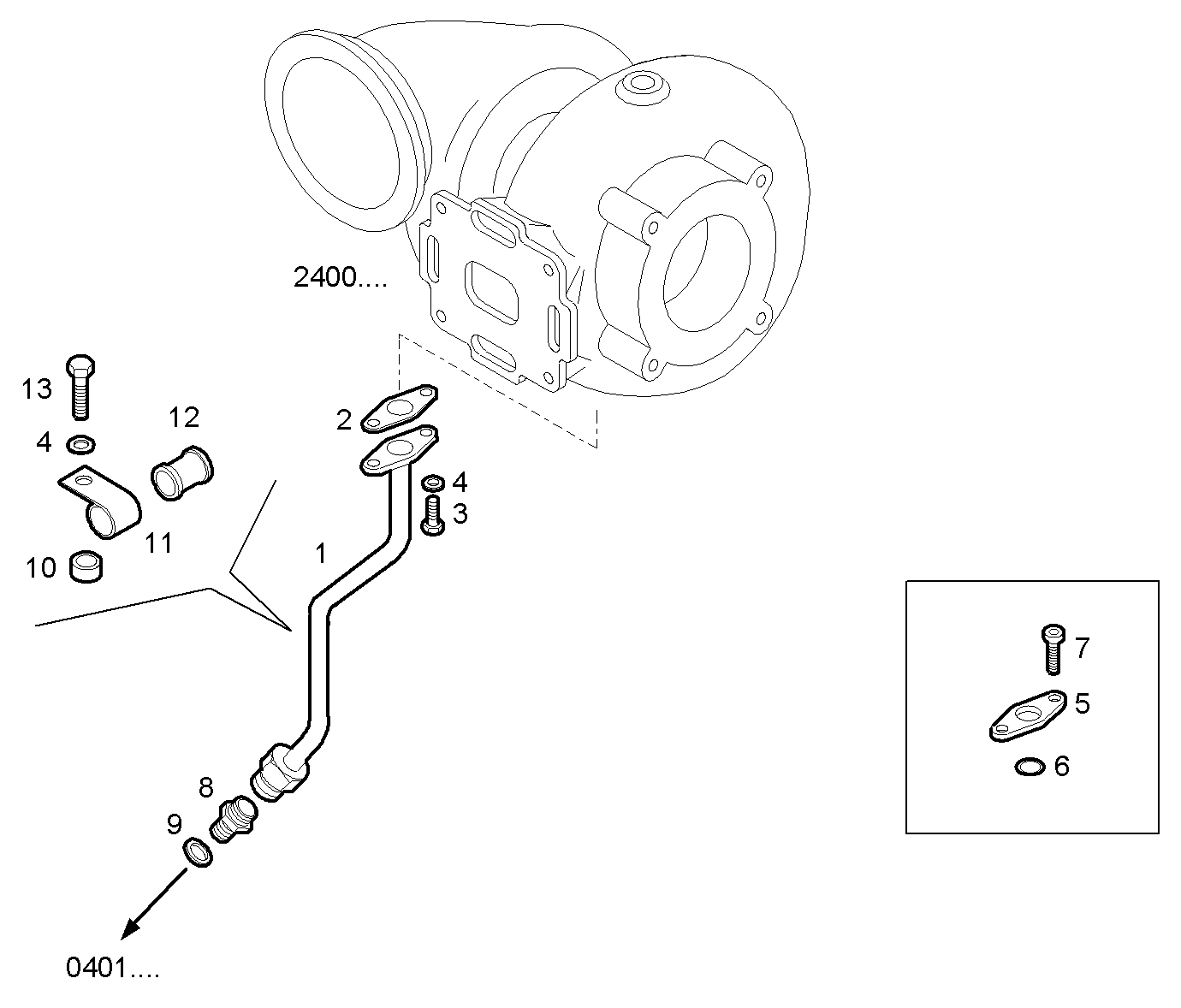

3065.001 RETURN OIL LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8042426 | OIL LINE |
| 2 | 98412509 | FLAT ENGINE GASKET |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8040800 | RETAINER |
| 6 | 17282681 | O-RING SP=2,62 MM |
| 7 | 16690624 | CYLIND-HEAD SCREW M8X25 MM |
| 8 | 16581411 | SWIVEL COUPLING M27X2 |
| 9 | 16566060 | WASHER Ø 27 mm |
| 10 | 17816614 | SPACING BAR Ø8,5X18 MM SP=30 MM |
| 11 | 8033225 | CLIP |
| 12 | 4747140 | RUBBER PAD |
| 13 | 16606034 | HEXAGON BOLT M8X45 MM |
