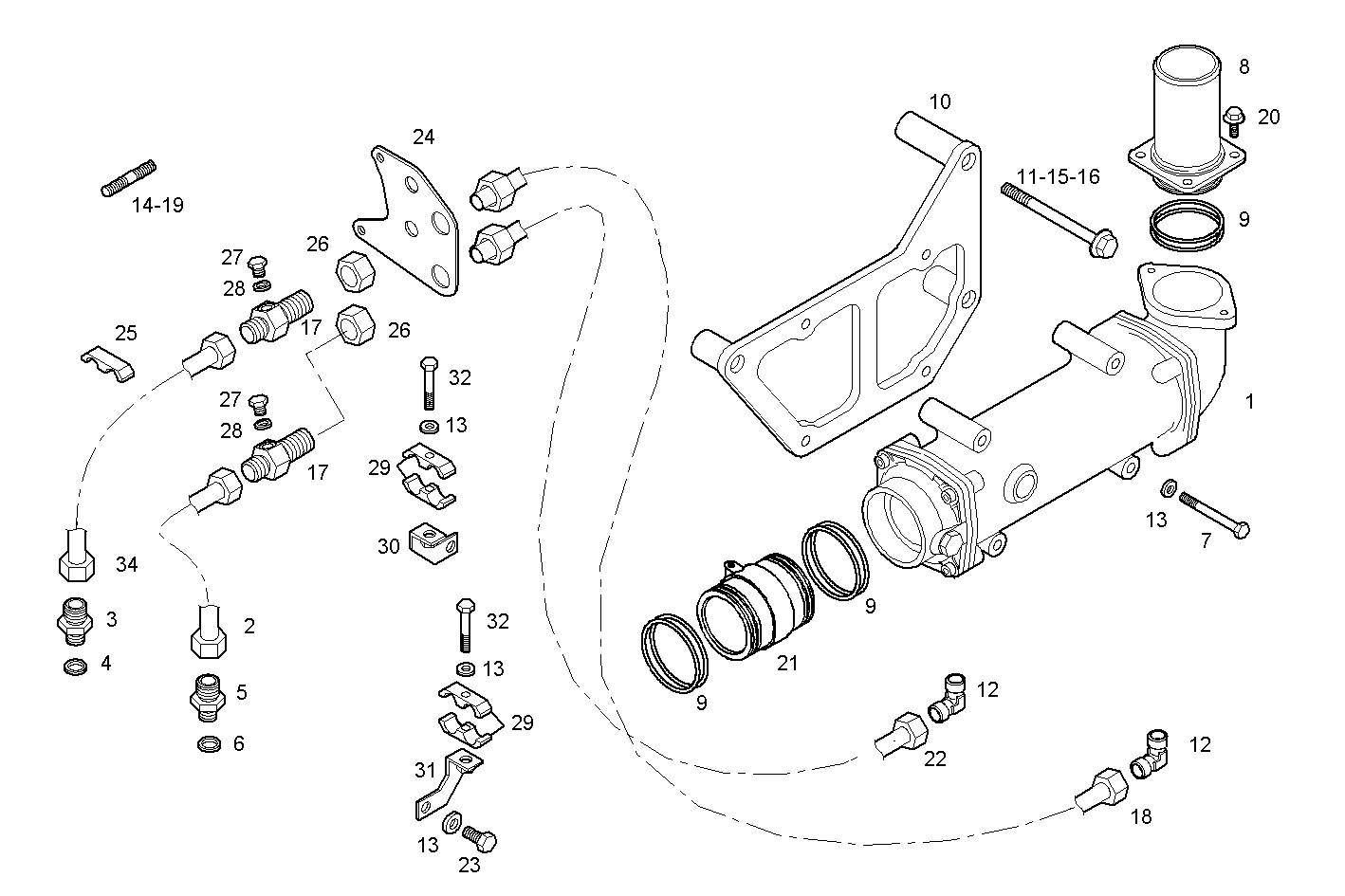

Item |
Part number |
Description |
1 |
8040270 |
MARINE GEAR OIL HEAT EXCH ASSY |
2 |
8006875 |
HOSE |
3 |
8026675 |
PIPE SOCKET |
4 |
16508460 |
WASHER 22x27x1,5 |
5 |
8026677 |
PIPE SOCKET |
6 |
11271460 |
GASKET Ø21X26X1,5 MM |
7 |
17458234 |
LOCKING SCREW M12X30 MM |
8 |
8039848 |
SPACING BAR |
9 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
10 |
8041594 |
RETAINER |
11 |
16586925 |
HEXAGON BOLT M8X50 MM |
12 |
8034521 |
SWIVEL COUPLING |
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
14 |
17368225 |
STUD |
15 |
16598324 |
HEXAGON BOLT M8X100 MM |
16 |
16592625 |
HEXAGON BOLT M8X80 MM |
17 |
8111751 |
PIPE SOCKET |
18 |
8041590 |
OIL LINE |
19 |
17368624 |
STUD M10X1,5X25 MM |
20 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
21 |
8038043 |
SPACING BAR |
22 |
8041588 |
OIL LINE |
23 |
16607434 |
HEXAGON BOLT M10X16 MM |
24 |
8032349 |
RETAINER |
25 |
8041552 |
SUPPORT |
26 |
41217235 |
HEXAGON NUT M22X1,5 |
27 |
11903140 |
PLUG M10X1,25 |
28 |
10284460 |
SEAL GASKET Ø10X16 MM |
29 |
8010505 |
CLAMP Ø16 MM |
30 |
8033495 |
RETAINER |
31 |
8032187 |
RETAINER |
32 |
16605934 |
HEXAGON BOLT M8X40 MM (10.9) |
34 |
8113774 |
HOSE |
