C13ENTM50.10

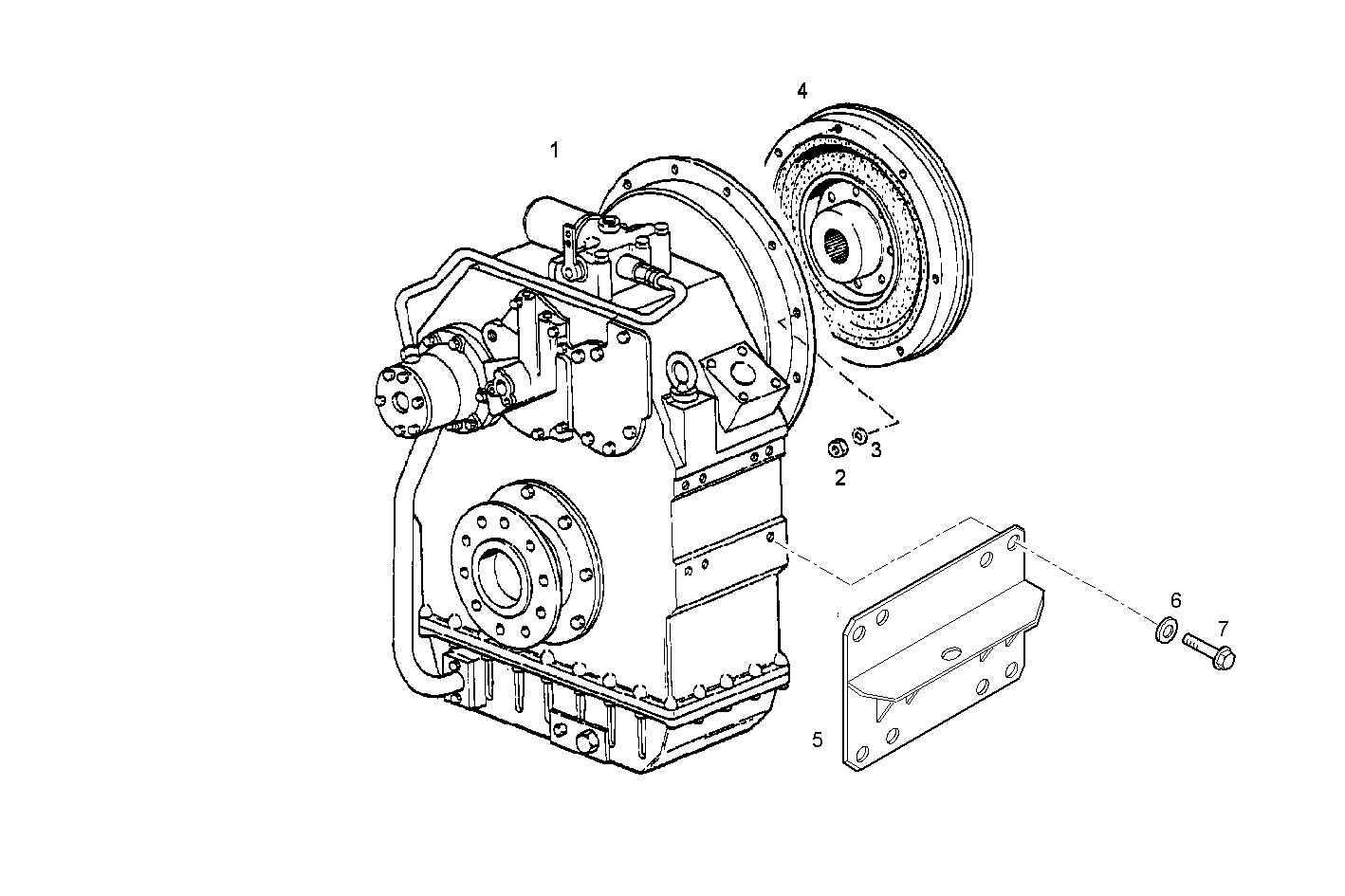

A51109503/01 MARINE GEAR - ZF W350-1 ratio 1:3,968
| Item | Part number | Description |
|---|---|---|
| 1 | 8041682 | MARINE GEAR |
| 2 | 17038131 | HEXAGON NUT M10 |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 8041685 | FLEXIBLE COUPLING |
| 5 | 8043047 | SUPPORT |
| 6 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 7 | 16614824 | SCREW M16X50 |
