C13ENTM50.10

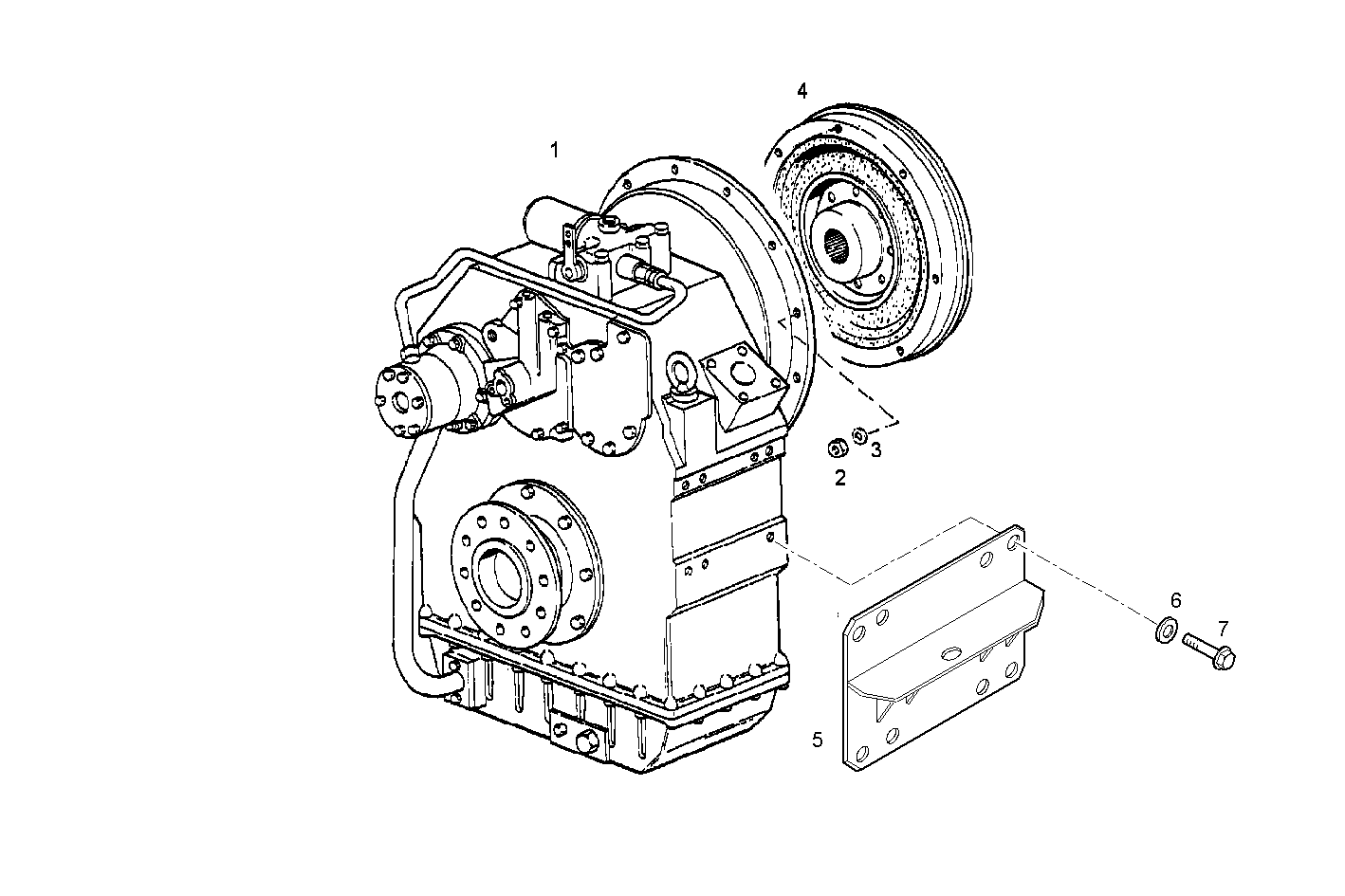

A51109504/01 MARINE GEAR - ZF W350-1 ratio 1:4,536
Item | Part number | Description |
---|---|---|
1 | 8041683 | MARINE GEAR |
2 | 17038131 | HEXAGON NUT M10 |
3 | 17090174 | SPRING WASHER Ø10X20 MM |
4 | 8041685 | FLEXIBLE COUPLING |
5 | 8043047 | SUPPORT |
6 | 17092174 | SPRING WASHER Ø16X32X3,4 |
7 | 16614824 | SCREW M16X50 |
