C13ENTM50.30

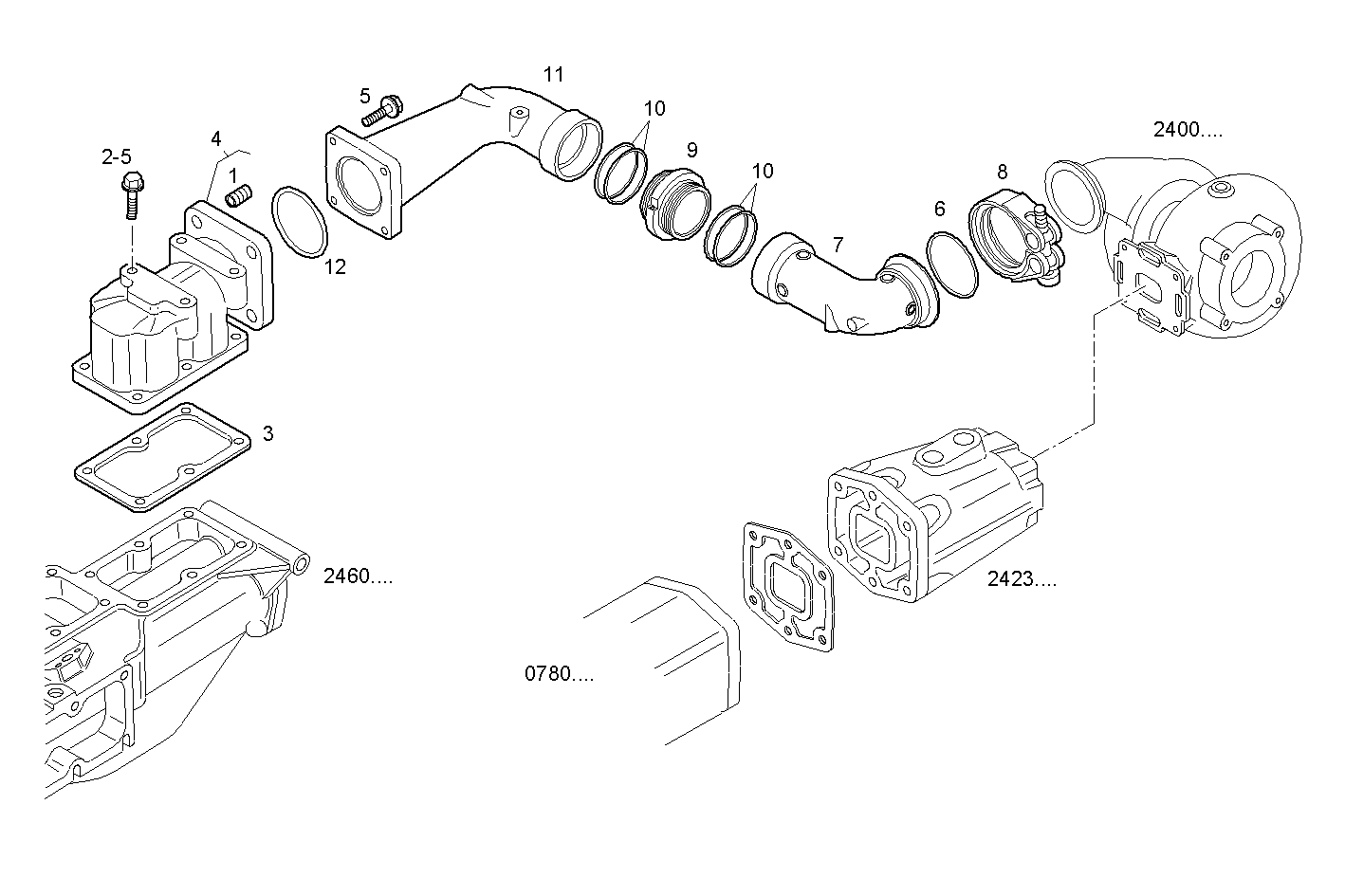

2430.033 EXIT AIR PIPE
Item | Part number | Description |
---|---|---|
1 | 17873371 | THREADED INSERT M10X1,5 |
2 | 16586524 | HEXAGON BOLT M8X30 MM |
3 | 504026624 | FLAT ENGINE GASKET |
4 | 8037749 | AIR HOOD ASSY |
5 | 16587425 | HEXAGON BOLT M10X40 MM |
6 | 17285481 | O-RING Ø75,87 MM SP=2,62 MM |
7 | 8042421 | INTAKE ELBOW ASSY |
8 | 504073261 | CLIP dia. 104 |
9 | 8009896 | ADAPTER |
10 | 17290581 | O-RING Ø72,63X3,53 MM |
11 | 8038089 | AIR PIPE/DUCT ASSY |
12 | 17291481 | O-RING Ø101,19 MM SP=3,53 |
