C13ENTM50.30

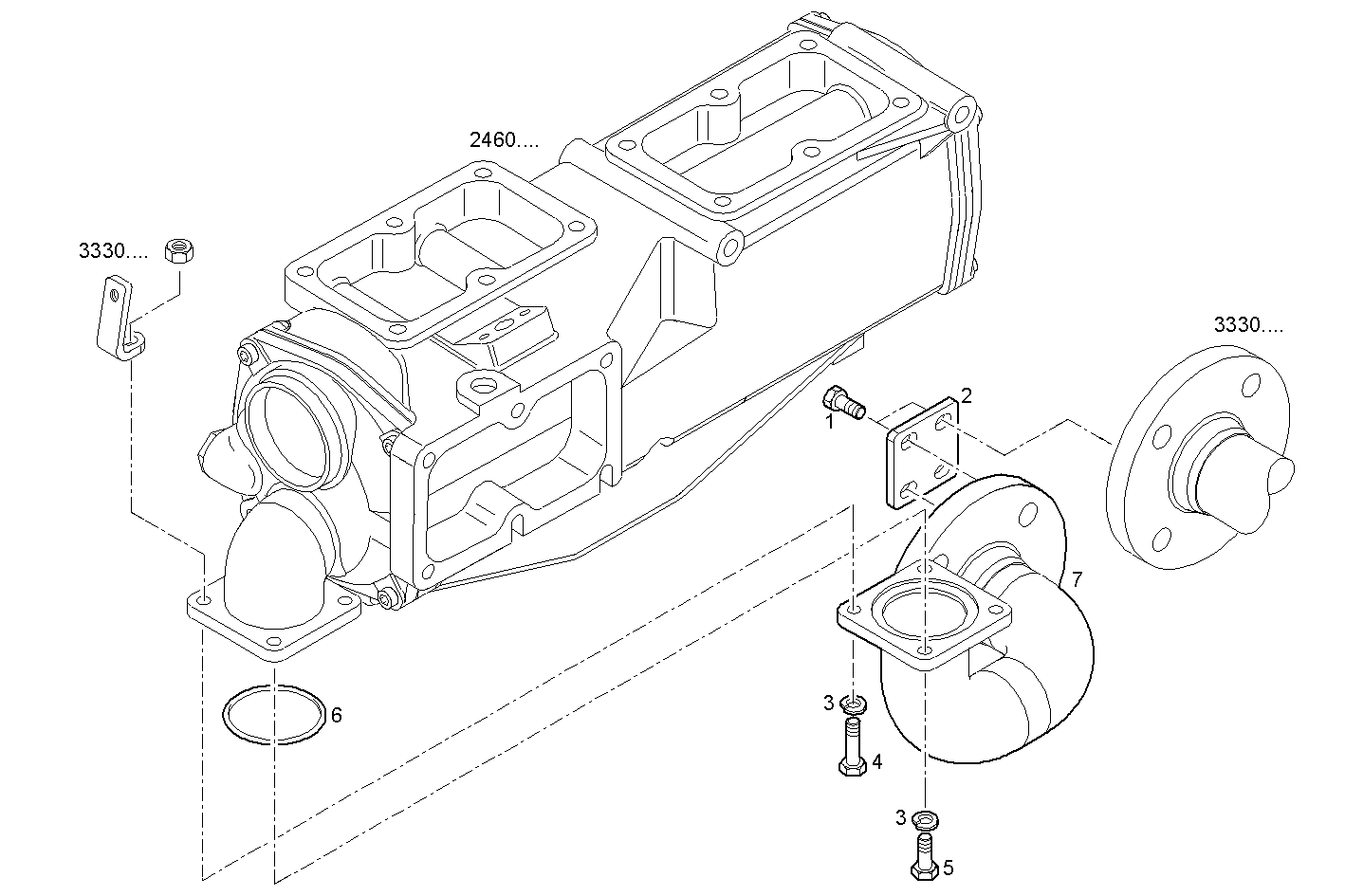

3330.014 AUXILIARY WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 2 | 8048061 | PLATE |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 16605934 | HEXAGON BOLT M8X40 MM (10.9) |
| 5 | 16605625 | HEXAGON BOLT M8X25 |
| 6 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 7 | 8048066 | SEA WATER PIPE |
