C13ENTM77.10

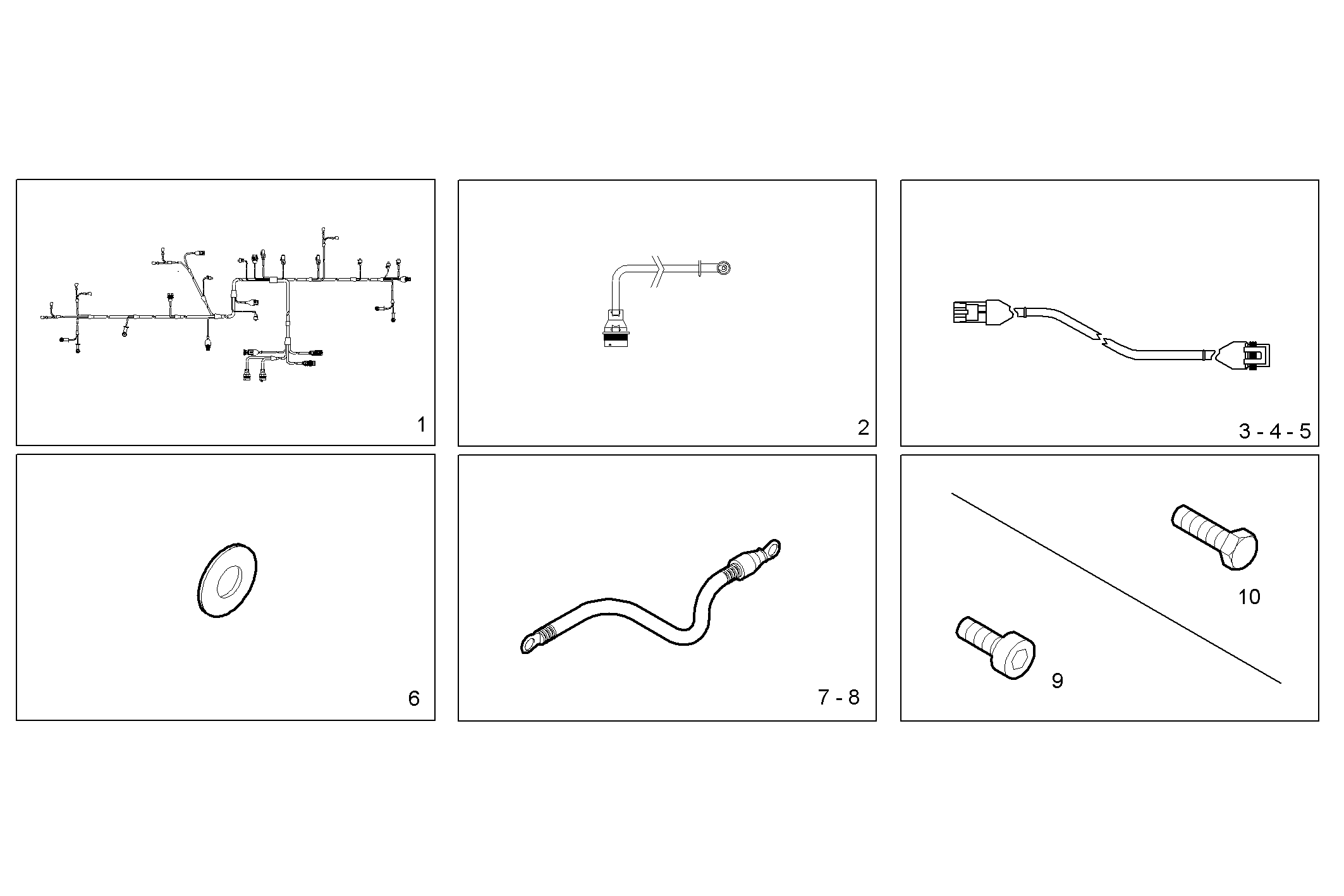

1730.047 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 8039276 | ENGINE HARNESS |
| 2 | 8039193 | WIRE/CABLE |
| 3 | 8039200 | WIRE/CABLE |
| 4 | 8039269 | WIRE/CABLE |
| 5 | 8039271 | WIRE/CABLE |
| 6 | 17094724 | WASHER Ø6X12 MM |
| 7 | 8031723 | EARTH WIRE L=250 MM - FOR SEA WATER ADAPT. |
| 8 | 8031281 | EARTH WIRE L=320 MM - FOR FRESH WATER ADAPT. |
| 9 | 16688924 | CYLIND-HEAD SCREW M6X10 MM |
| 10 | 16603524 | SCREW M6X12 MM (8.8) |
